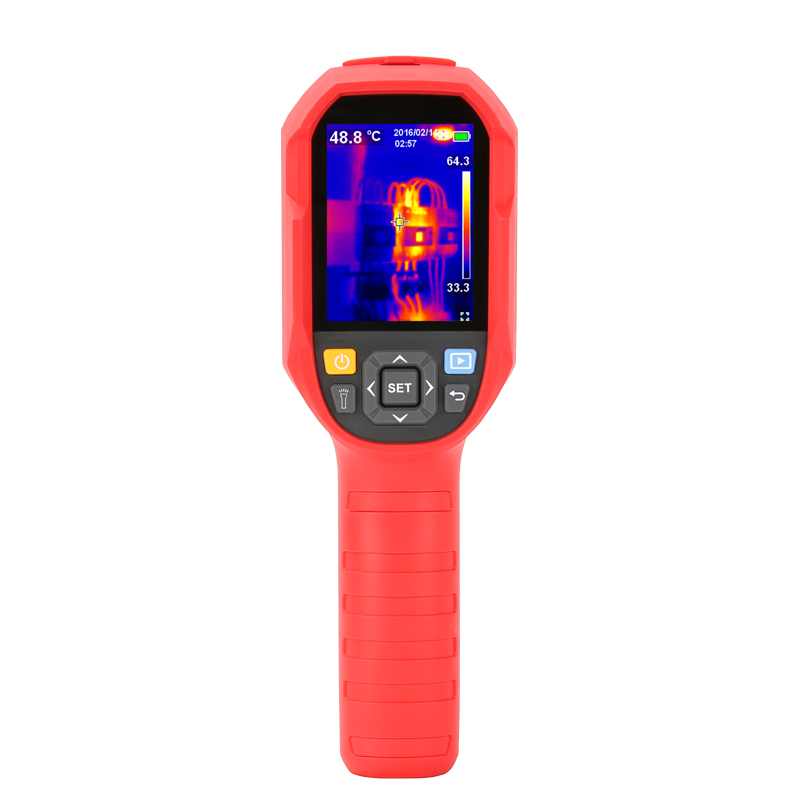

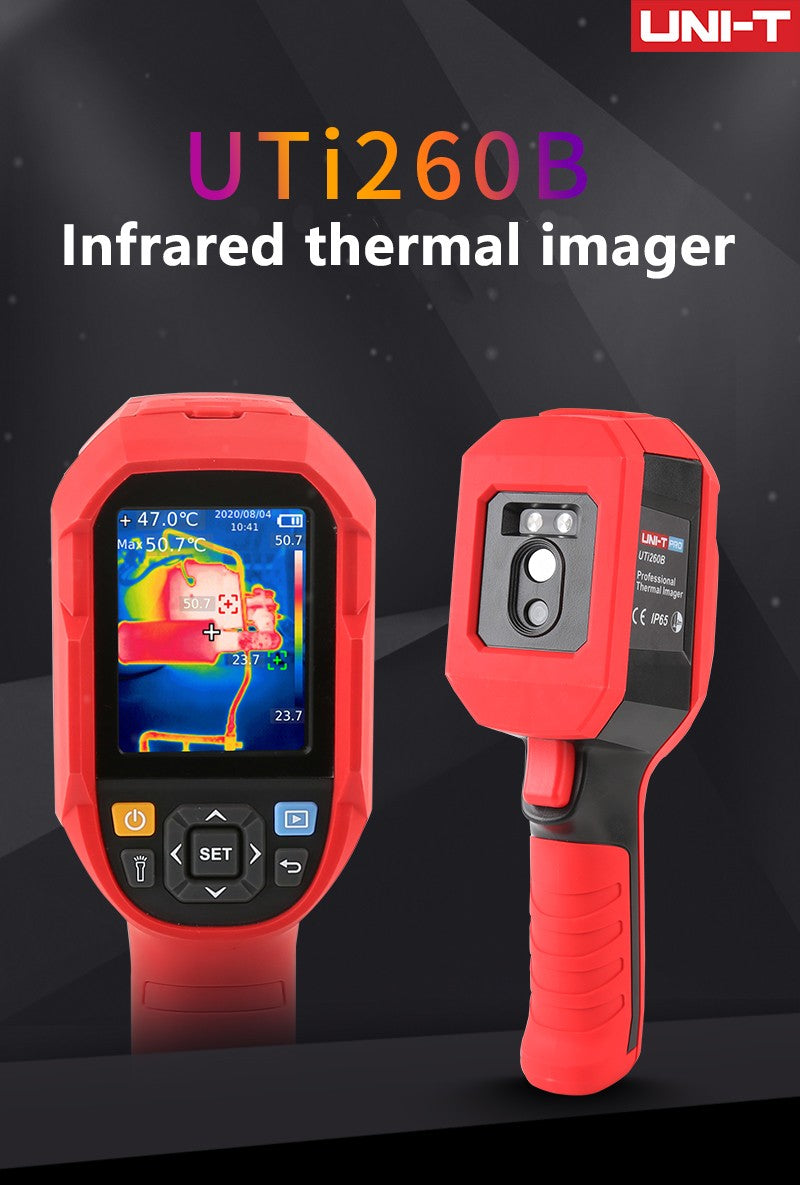

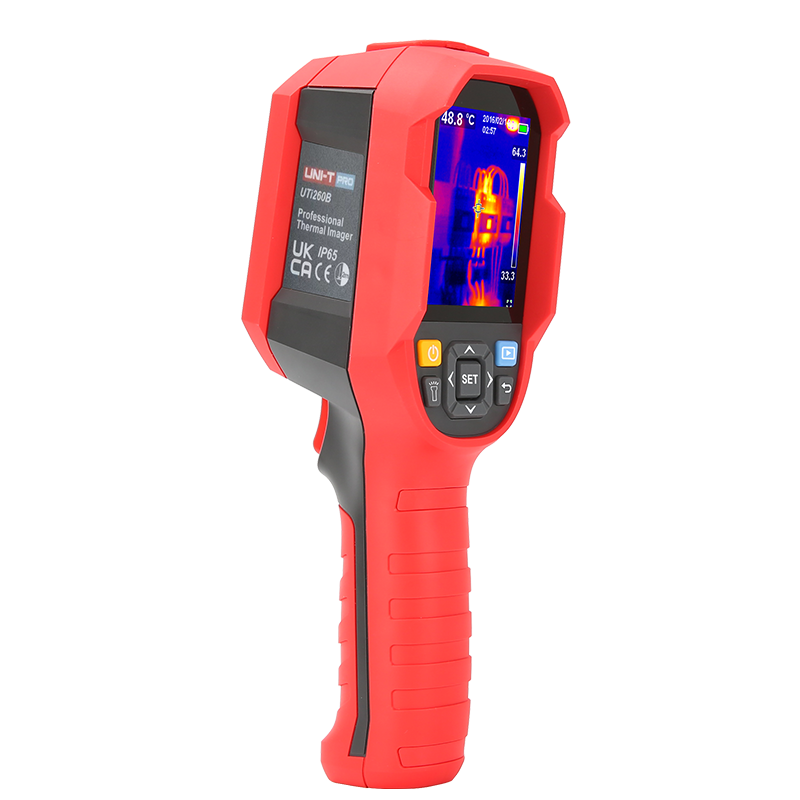

UTi260B Heavy Duty Thermal Camera -20C to 550C Image Capture 7 Palettes PC IP65

Name: UTi260B Heavy Duty Thermal Camera -20C to 550C Image Capture 7 Palettes PC IP65
Brand: UNI-T
SKU: STINF-TIC-0023
Price: 204.99 USD
Availability: InStock

$204.99 USD

~~$440.00 USD~~ $204.99 USD

Sale Sold out

Quantity

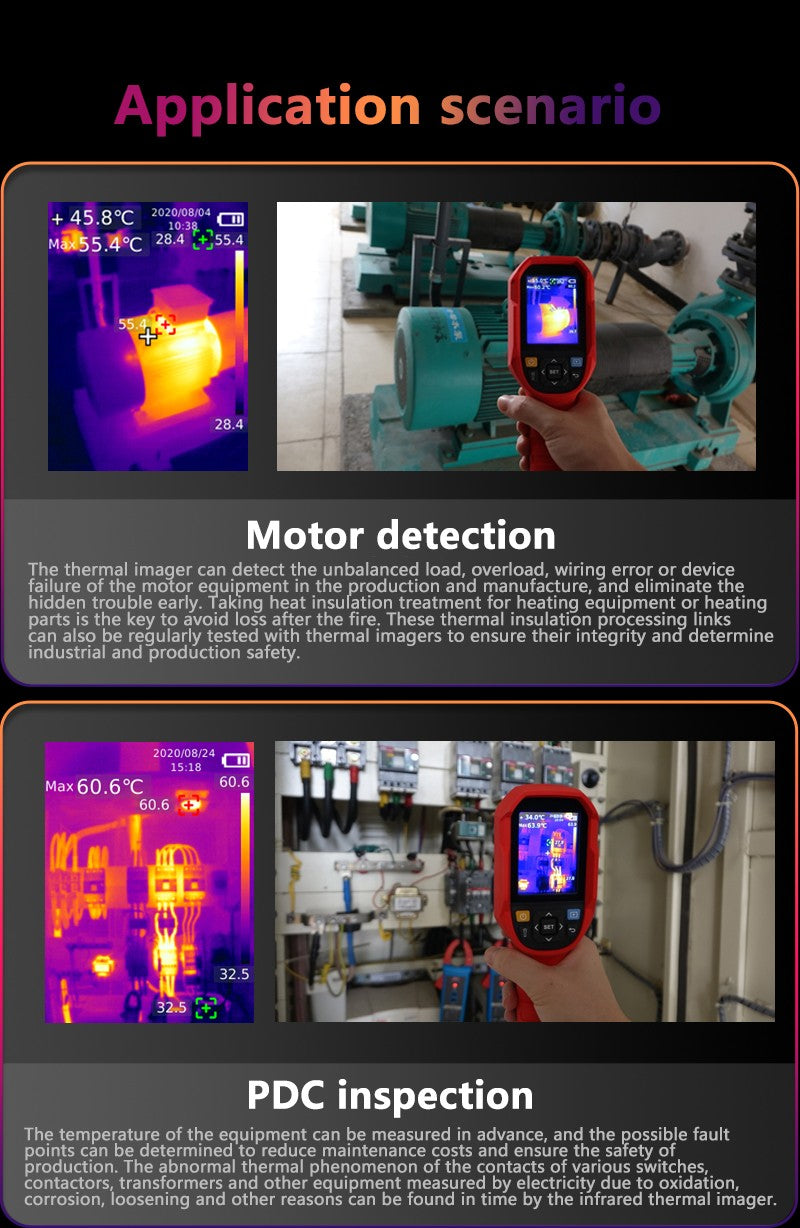

The UNI-T UTi260B Heavy Duty Thermal Camera is built for fast, non-contact temperature inspection in electrical, industrial, maintenance, and building applications. With 256 x 192 infrared resolution, a wide -20C to 550C temperature range, seven color palettes, and rugged IP65 protection, the UTi260B is designed for technicians who need reliable thermal imaging in demanding environments. It supports image capture, PC connection, and real-time viewing, making it suitable for troubleshooting, documentation, and repeat inspection work.

Key features

256 x 192 infrared resolution for clear thermal detail
Wide temperature measurement range up to 550C

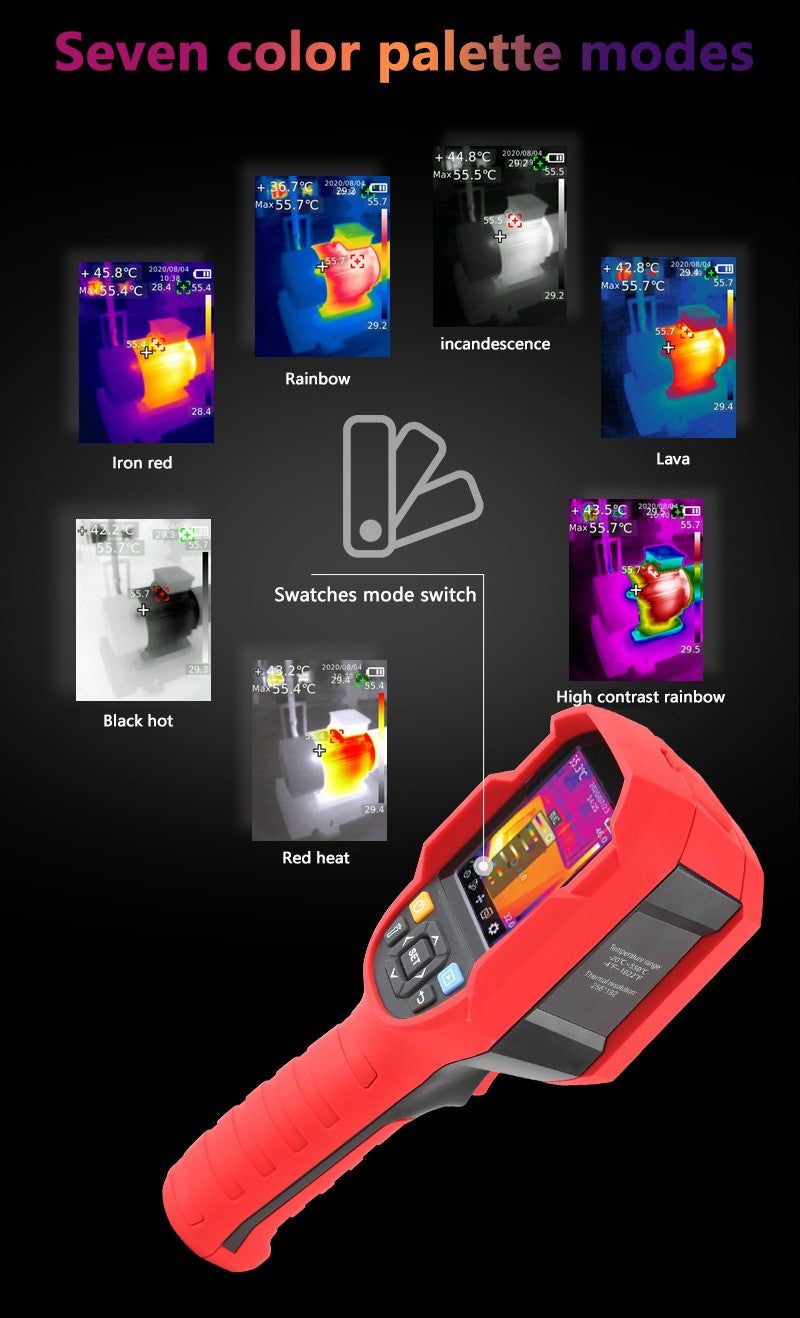

Seven color palettes for flexible thermal analysis
2.8" LCD display for on-device viewing

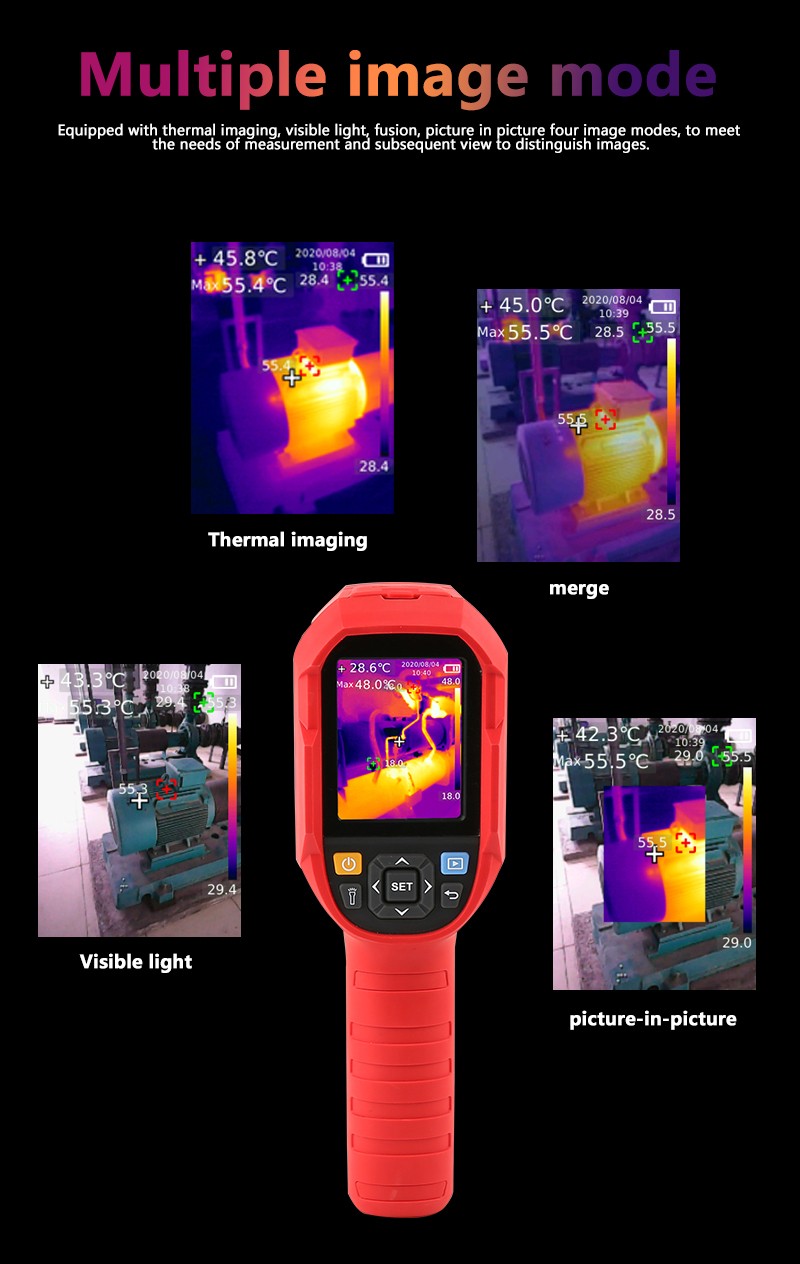

Four display modes: thermal, visual image, fusion, and picture-in-picture

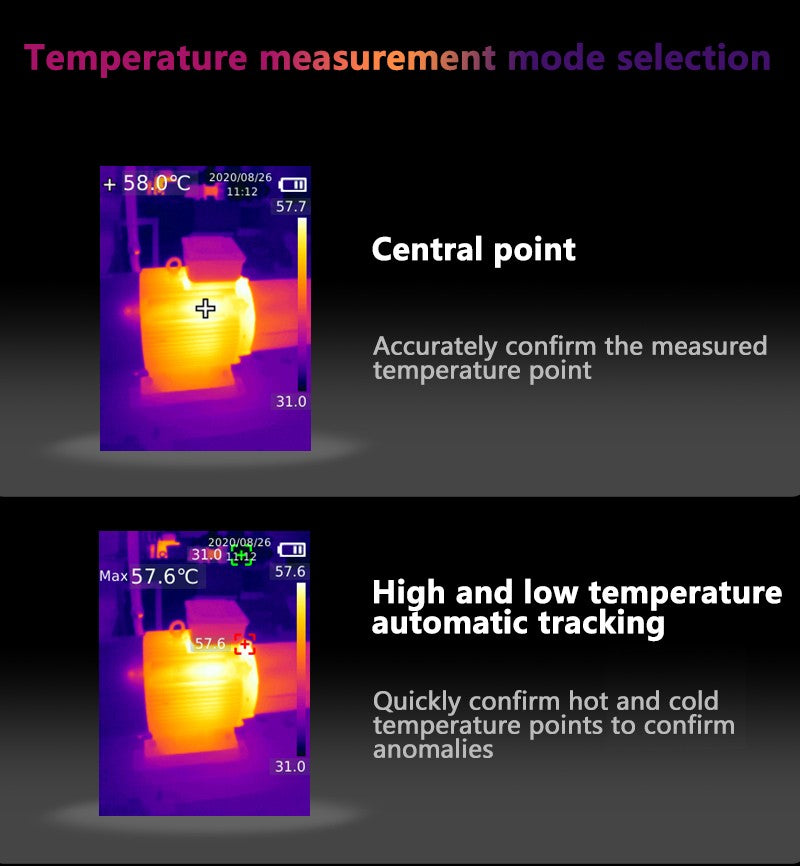

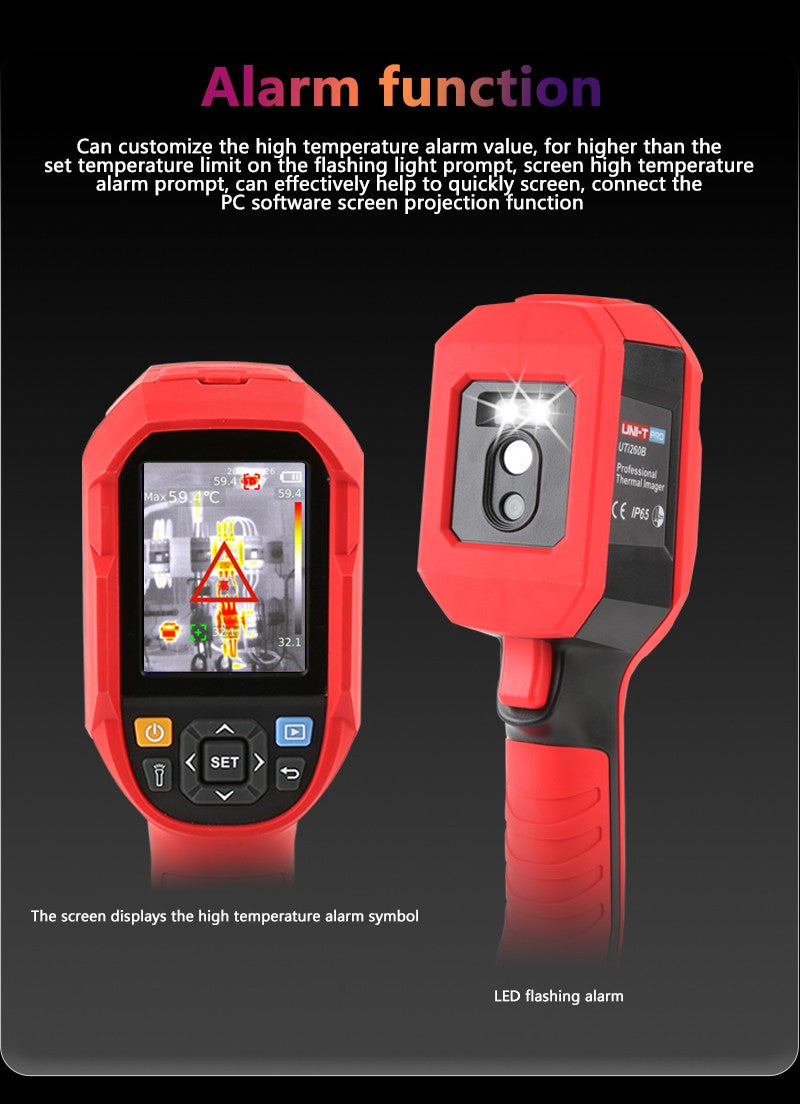

High and low temperature tracking with alarm support

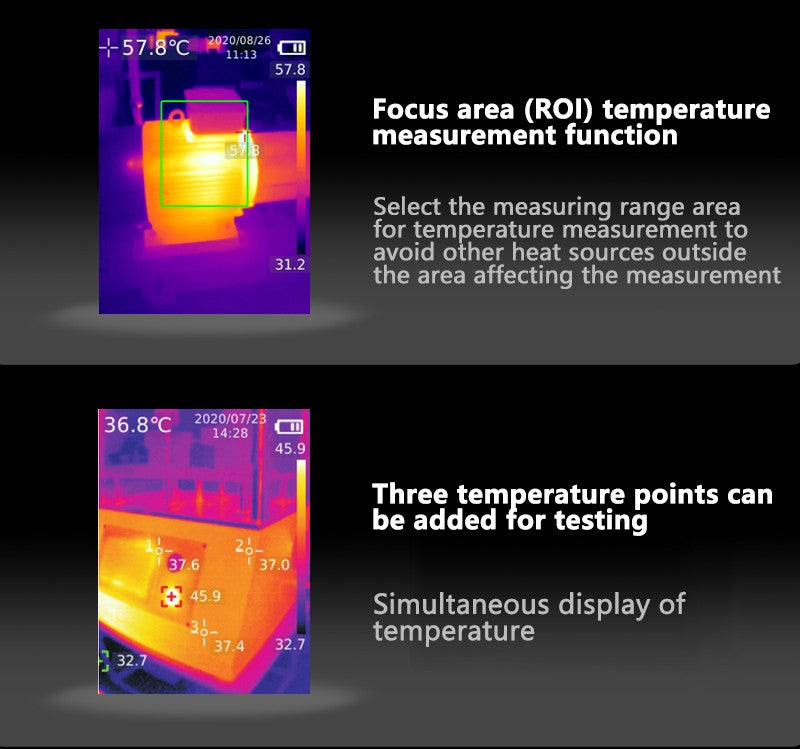

On-screen 3-point temperature analyzer for fast spot checks

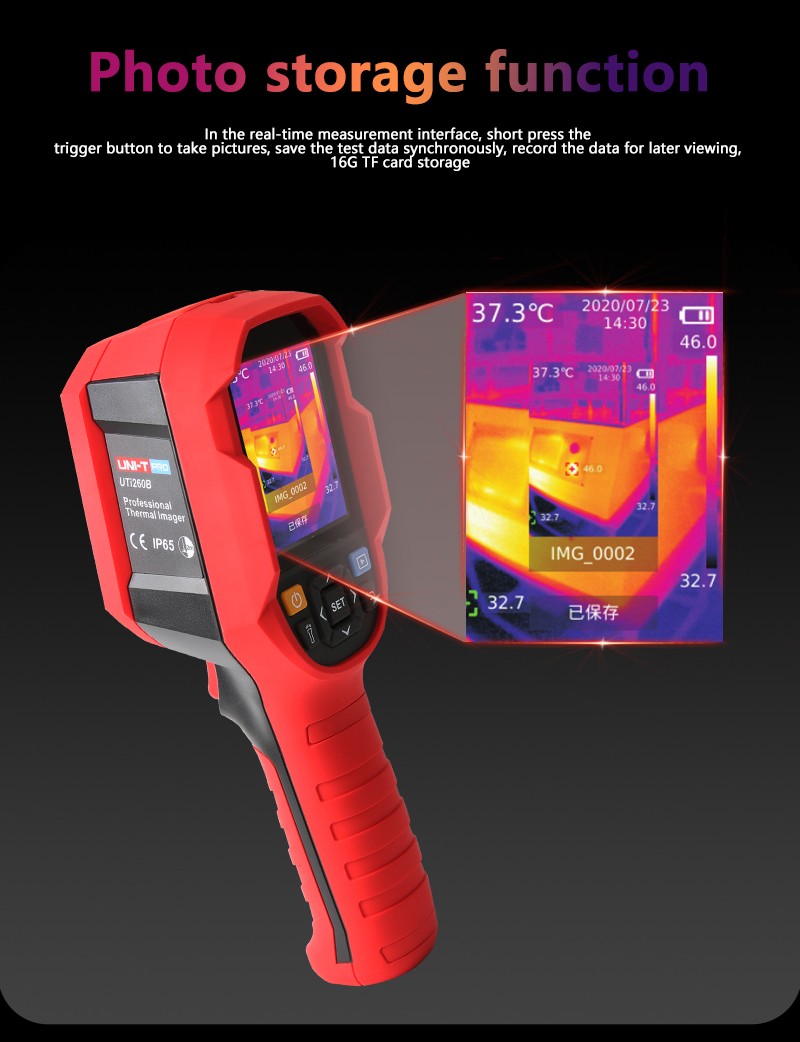

Image capture with removable microSD storage
USB-C connection for charging, image transfer, and PC monitoring

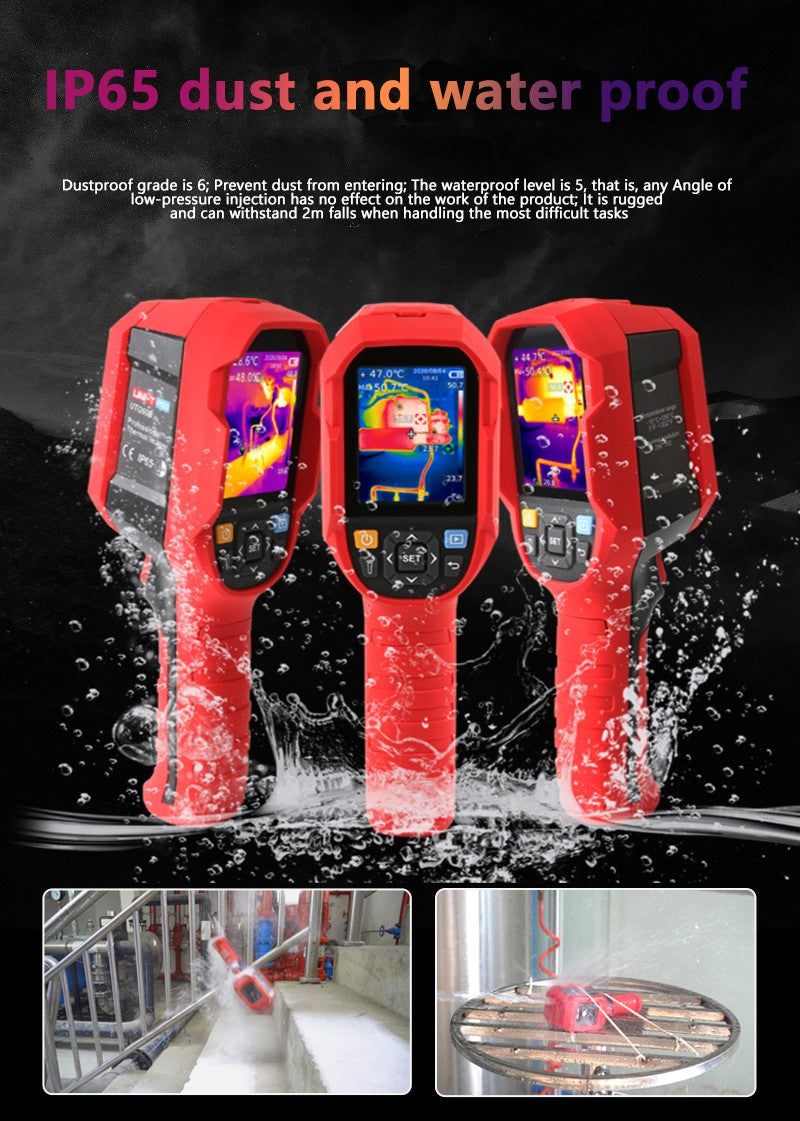

IP65 protection for industrial and field environments

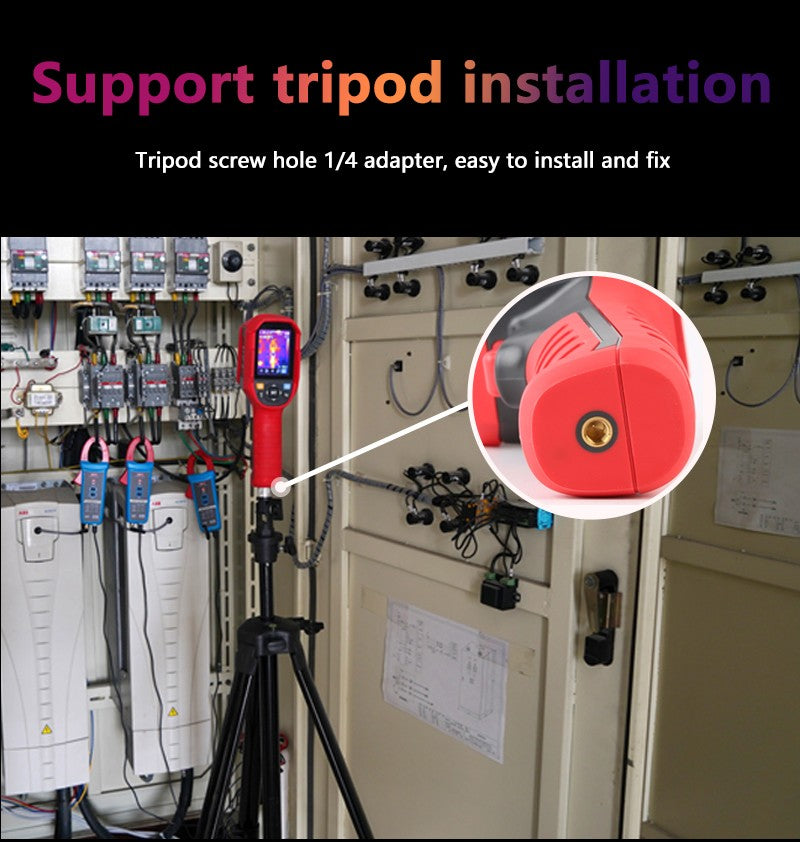

Tripod mount and durable handheld design

Specs

Thermal Imaging Performance

Item	Specification
IR Resolution	256 x 192 pixels
Thermal Sensitivity (NETD)	≤60mK
Temperature Range	-20C to 550C
Accuracy	+/-2C or +/-2%
Field of View	56°×42°
Frame Rate	25Hz
Response Time	≤500ms
Emissivity	0.01 to 1.00 adjustable

Display and Imaging

Item	Specification
Display	2.8" TFT LCD
Display Resolution	320 x 240
Color Palettes	7
Display Modes	Thermal, visual image, fusion, and PIP
Temperature Tools	On-screen 3-point analyzer, hot/cold spot tracking, ROI measurement
Image Capture	Manual trigger and automatic capture support
Visible Camera	640 x 480

Connectivity and Storage

Item	Specification
Storage	Up to 32GB microSD card storage
USB	USB Type-C

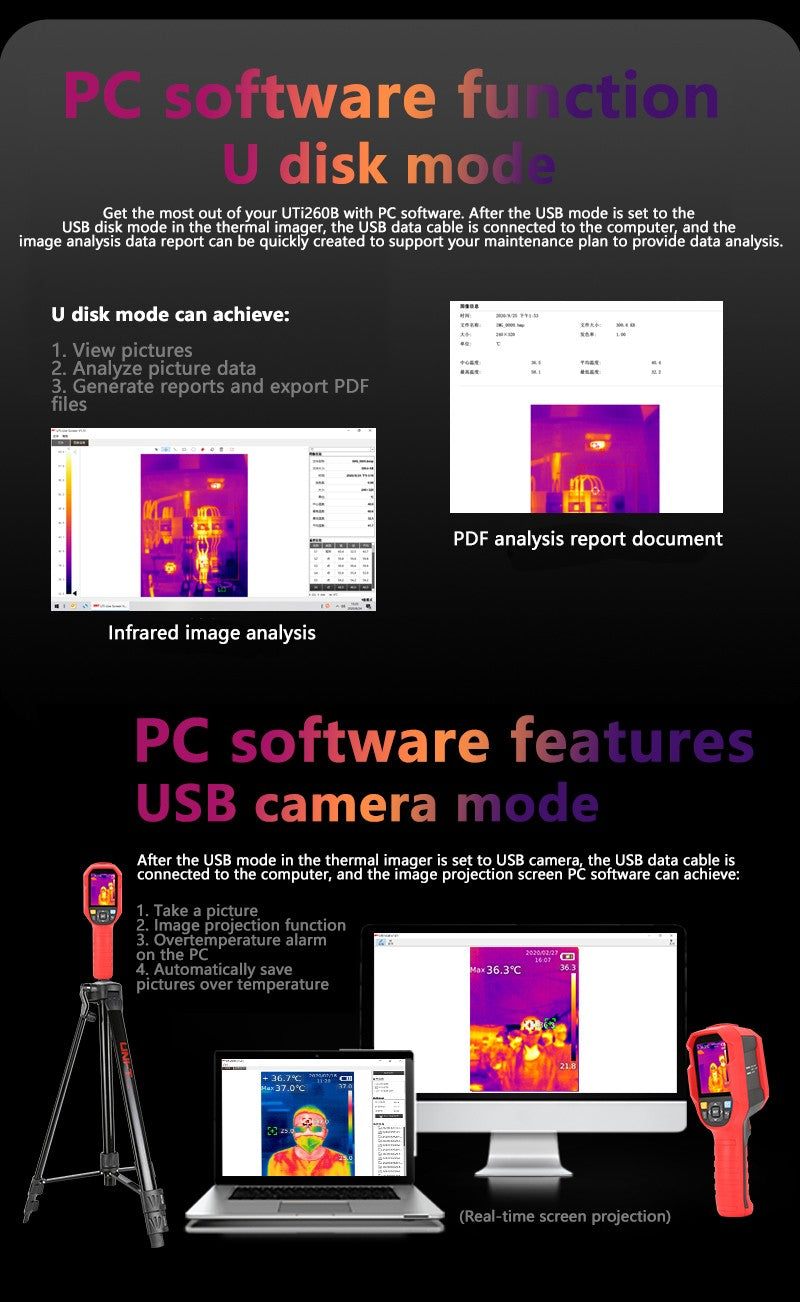

PC Functions	Live image, image transfer, event history, alarm notification
Alarm Indicators	High/low temperature icon and LED flashlight

General Specifications

Item	Specification
Protection Rating	IP65
Drop Protection	2m drop proof

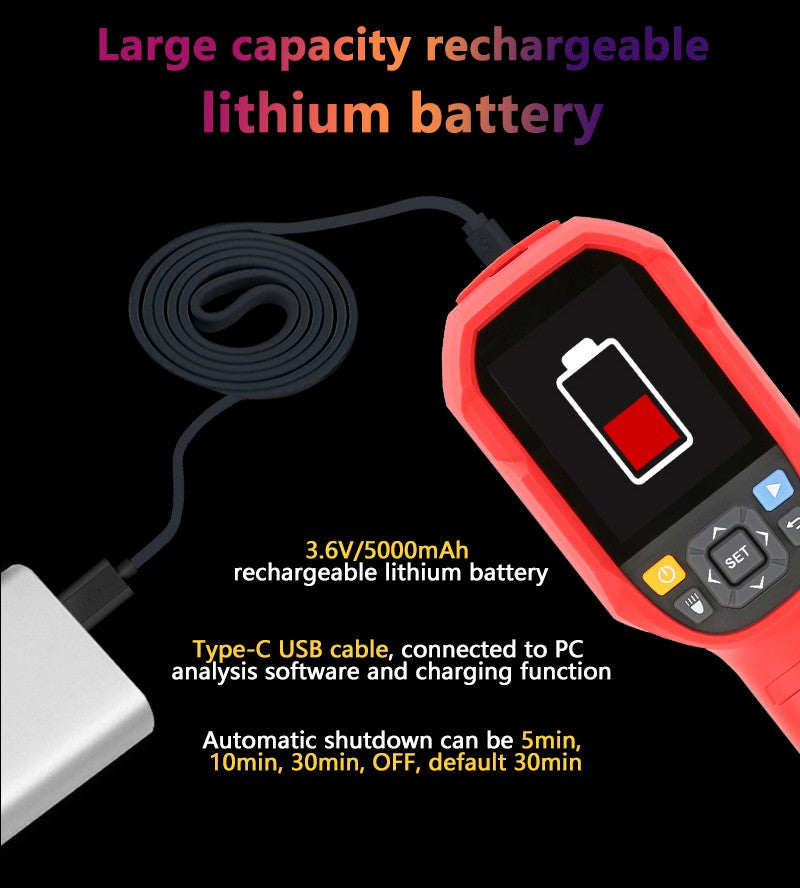

Battery	Fixed Li-ion battery, 3.6V 5000mAh
Operating Time	Up to 6 hours
Dimensions	236mm x 75.5mm x 86mm
Weight	490g
Operating Temperature	0C to 50C

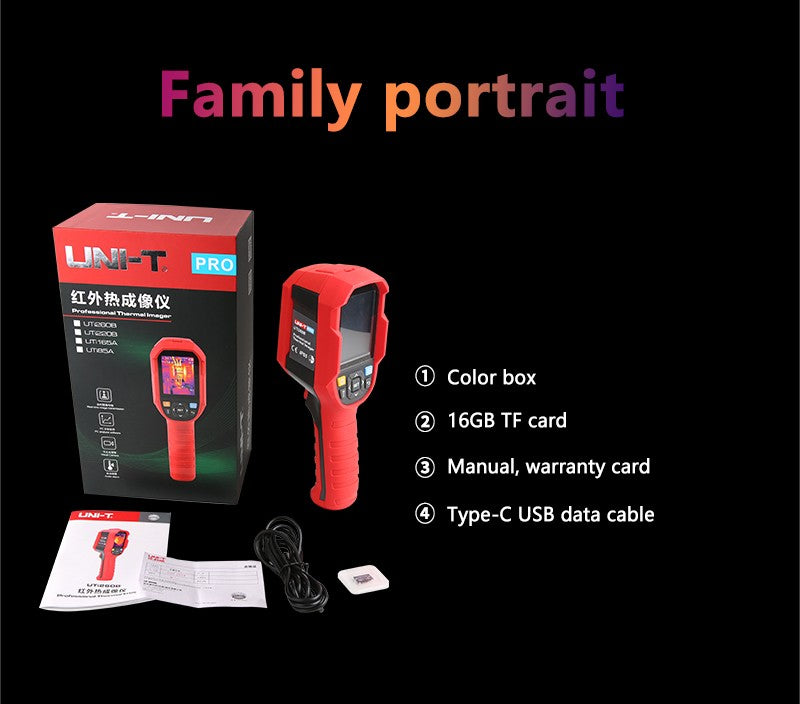

Standard Accessories

Item	Included
Storage Card	microSD card
Cable	USB Type-C cable
Documentation	English user manual

Manuals

PDF User Manual
