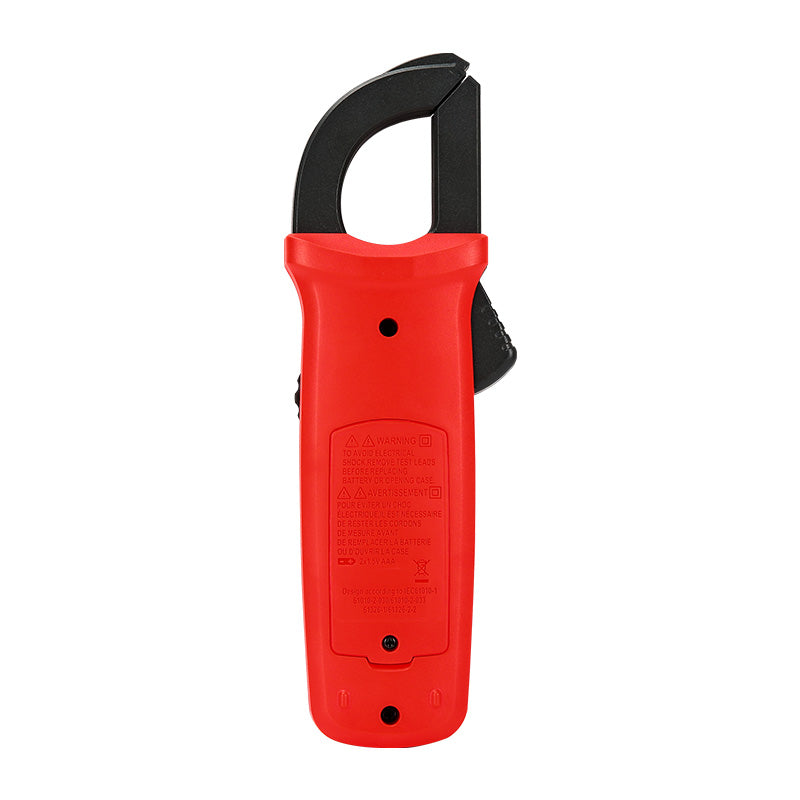

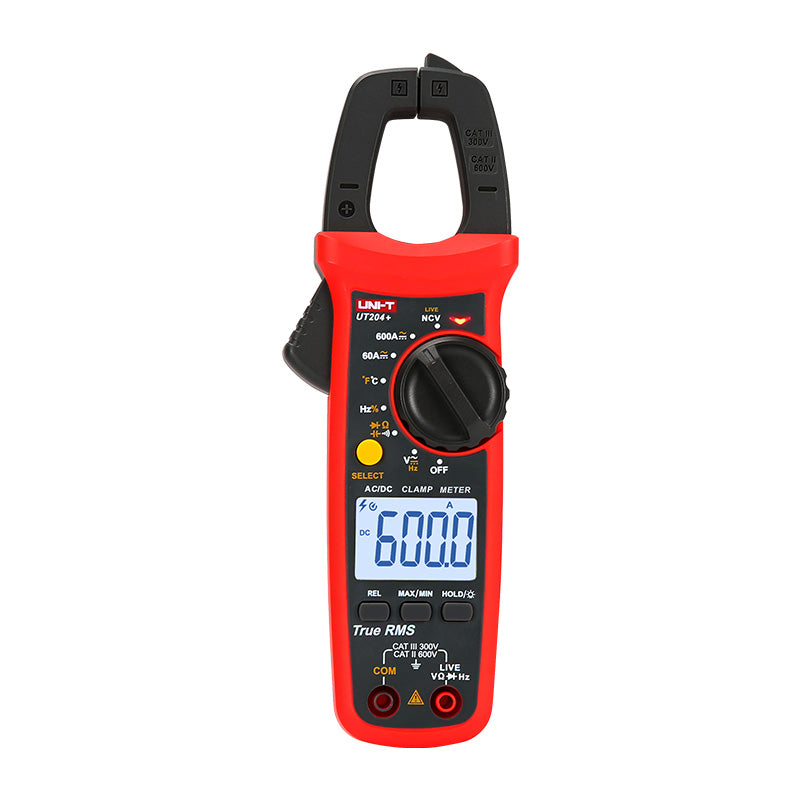

UNI-T UT204+ 400A/600A Digital Clamp Meters

UT200+ series digital clamp meters are designed according to EN61010-2010 CAT II 600V/CAT III 300V, featuring overload protection, high reliability, high safety and high accuracy. These meters can be used to measure high-voltage frequency, temperature, AC/DC current, etc. Models in UT200+ Series: UT201+, UT202+, UT202A+, UT203+, UT204+

Features:

True RMS
LCD backlight
Large screen and display digits
60mF large capacitance measurement (UT202A+/UT204+)
Neutral/live wire test (UT202A+/UT204+)

Specs

Specifications	Range	UT204+
AC current (A)	600A	±(2.5%+5)
AC current (A)	400A
AC voltage (V)	600V	±(0.8%+5)
DC current (A)	600A	±(2.5%+5)
DC voltage (V)	600V	±(0.5%+2)
Resistance (Ω)	60MΩ	±(0.8%+2)
Capacitance (F)	60mF	±(4%+5)
Temperature (℃)	-40℃~1000℃	±(1.5%+5)
Frequency (Hz)	10Hz~10MHz	±(0.1%+4)
Features
Display count		6000
Auto range		√
Jaw opening		28mm
True RMS		√
NCV		√
Live wire test		√
Continuity test		√
Diode		√
MAX/MIN		√
Zero mode		√
Data hold		√
Low battery indication		√
Auto power off		√
General Characteristics
Power	1.5V battery (R03) x 2
Display	37mm x 25mm
Product color	Red and grey
Product net weight	235g
Product size	215mm x 63mm x 36mm
Standard accessories	Batteries, test leads, Thermocouple (UT204+)
Standard individual packing	Gift box, Carrying bag, English manual
Standard quantity per carton	40pcs
Standard carton measurement	485mm x 295mm x 385mm
Standard carton gross weight	17.3kg
