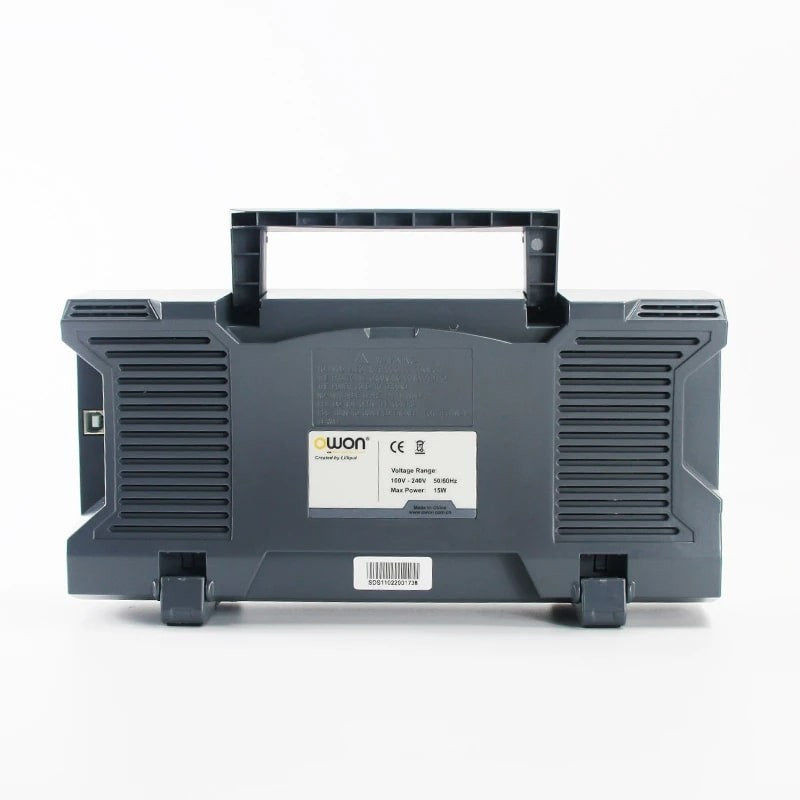

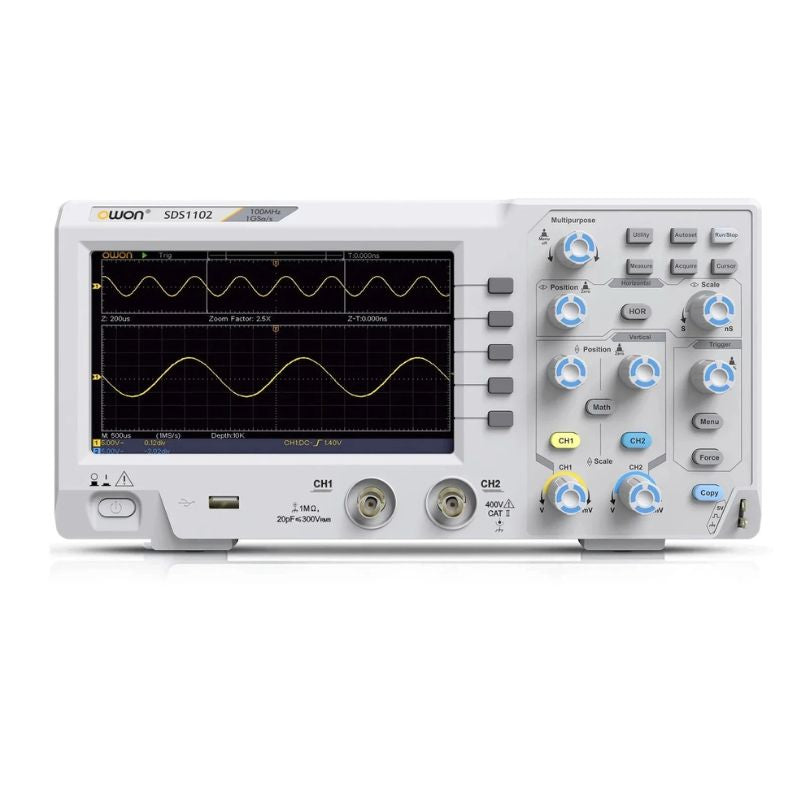

OWON SDS1102 100MHZ 2 Channel Digital Oscilloscope

$219.12 USD

~~$245.00 USD~~ $219.12 USD

Sale Sold out

Quantity

Model	SDS1102
Bandwidth	100MHz
Sample Rate	100MS/s
Horizontal Scale (s/div)	5ns/div - 1000s/div, step by 1 - 2 - 5
Channel	2
Display	7" color LCD, 800 x 480 pixels
Input Coupling	DC, AC , and GND
Vertical Resolution (A/D)	8 bits (2 channels simultaneously)
Vertical Sensitivity	5mV/div - 5V/div (at input)
Trigger Type	Edge, Video
Trigger Mode	Auto, Normal, and Single
Waveform Math	＋, －, x, ÷, invert, FFT
Fuse	2A, T class, 250V
Dimension (W x H x D)	301 x 152 x 70 mm
Device Weight	1.10 kg
