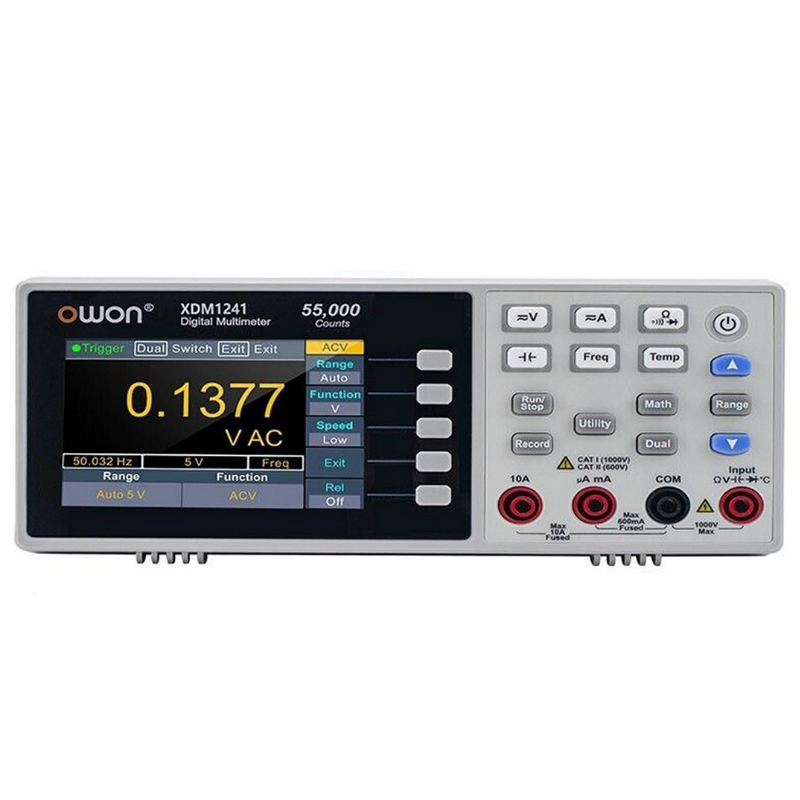

The Owon XDM1241 is a very low-cost, high-precision portable benchtop multimeter. It is powered by a lithium battery and can be recharged with USB-C or a 5V DC jack. The meter has a True RMS function to measure the AC voltage and current and it has a reading speed of up to 65 values per second. The XDM1241 can store data internally in the memory of the meter and display it on the 3.5" high-resolution LCD. Up to 1000 points can be stored and the time interval can be varied from 15ms to 9999s. Using the USB port on the back of the device, the meter can be programmed and controlled via SCPI.
Features:
- 3.5 inch (480x320) high resolution LCD
- 55000 counts, DC voltage accuracy up to 0.05%
- Up to 60 readings per second
- True RMS AC voltage / current measurement
- Dual line display supported
- SCPI support
- Data record function, you can record the measured data into internal memory, and then read and process the recorded data with your computer
- models available in lithium battery (XDM1241), suitable for different application scenario

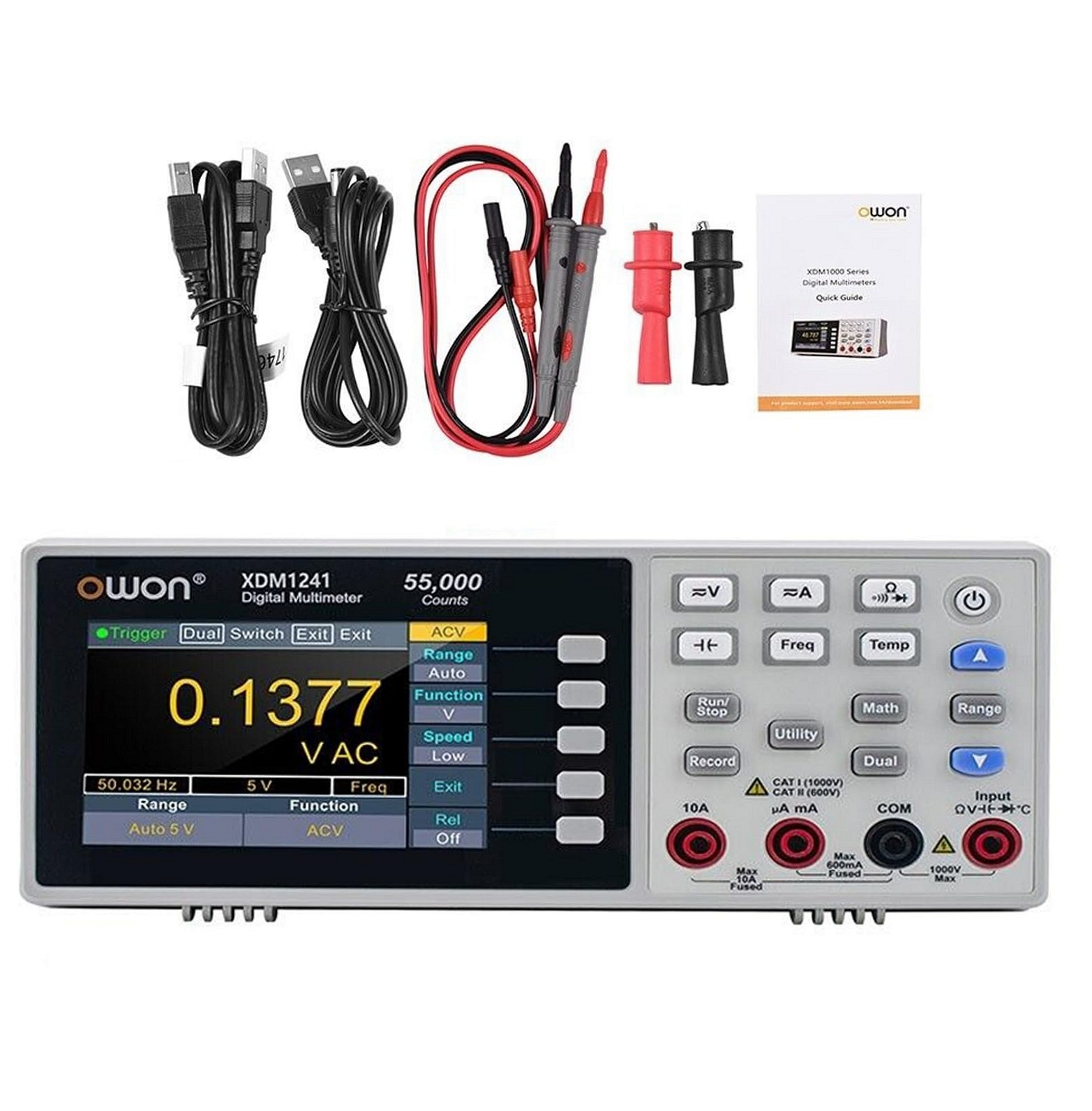

Package Including:
- XDM1241
- Measuring cable + alligator clips
- USB to DC cable
Specs
|
|
Measurement Range
|
Resolution
|
Accuracy ±(% of reading +LBS )
|
|
DC Voltage
|
50.000mV
|
0.001mV
|
0.1%+10
|
|
500.00mV
|
0.01mV
|
0.05%+5
|
|
5.0000V
|
0.0001V
|
0.05%+5
|
|
50.000V
|
0.001V
|
0.05%+5
|
|
500.00V
|
0.01V
|
0.1%+5
|
|
1000.0V
|
0.1V
|
0.1%+10
|
|
AC Voltage
|
500mv-750v
|
20Hz～45Hz
|
1% + 30
|
|
45Hz～65Hz
|
0.5% + 30
|
|
65Hz～1KHz
|
0.7% + 30
|
|
DC Current
|
500uA
|
0.01uA
|
0.15%+20
|
|
5000uA
|
0.1uA
|
0.15%+10
|
|
50mA
|
0.001mA
|
0.15%+20
|
|
500mA
|
0.01mA
|
0.15%+10
|
|
5A
|
0.0001A
|
0.5%+10
|
|
10A
|
0.001A
|
0.5%+10
|
|
AC Current
|
500uA-500mA
|
20Hz-1KHz
|
0.5%+20
|
|
5A-10A
|
1.5%+20
|
|
Resistance
|
500Ω
|
0.01Ω
|
0.15%+10
|
|
5KΩ
|
0.0001KΩ
|
0.15%+5
|
|
50KΩ
|
0.001KΩ
|
0.15%+5
|
|
500KΩ
|
0.01KΩ
|
0.15%+5
|
|
5MΩ
|
0.0001MΩ
|
0.3%+5
|
|
50MΩ
|
0.001MΩ
|
1%+10
|
|
Frequency
|
10.000Hz–60MHz
|
/
|
±(0.2%+10)
|
|
Capacitance
|
50nF-500uF
|
/
|
2.5%+10
|
|
5mF-50mF
|
5%+10
|
|
Diode
|
3.0000 V
|
0.0001V
|
/
|
|
Continuity
|
1000 Ω
|
0.1Ω
|
Adjustable threshold
|
|
Temperature
|
K type，PT100
|
|
Max Display
|
55,000 counts
|
|
Data-logging Function
|
|
Logging Duration
|
15ms-9999.999s
|
|
Logging Length
|
1,000 points
|
|
General
|
|
Display Screen
|
3.5- inch TFT LCD with resolution 480*320
|
|
Dimensions (W×H×D)
|
235 x 88x 65 (mm)
|
|
Device Weight
|
Approximately 0.45kg
|
