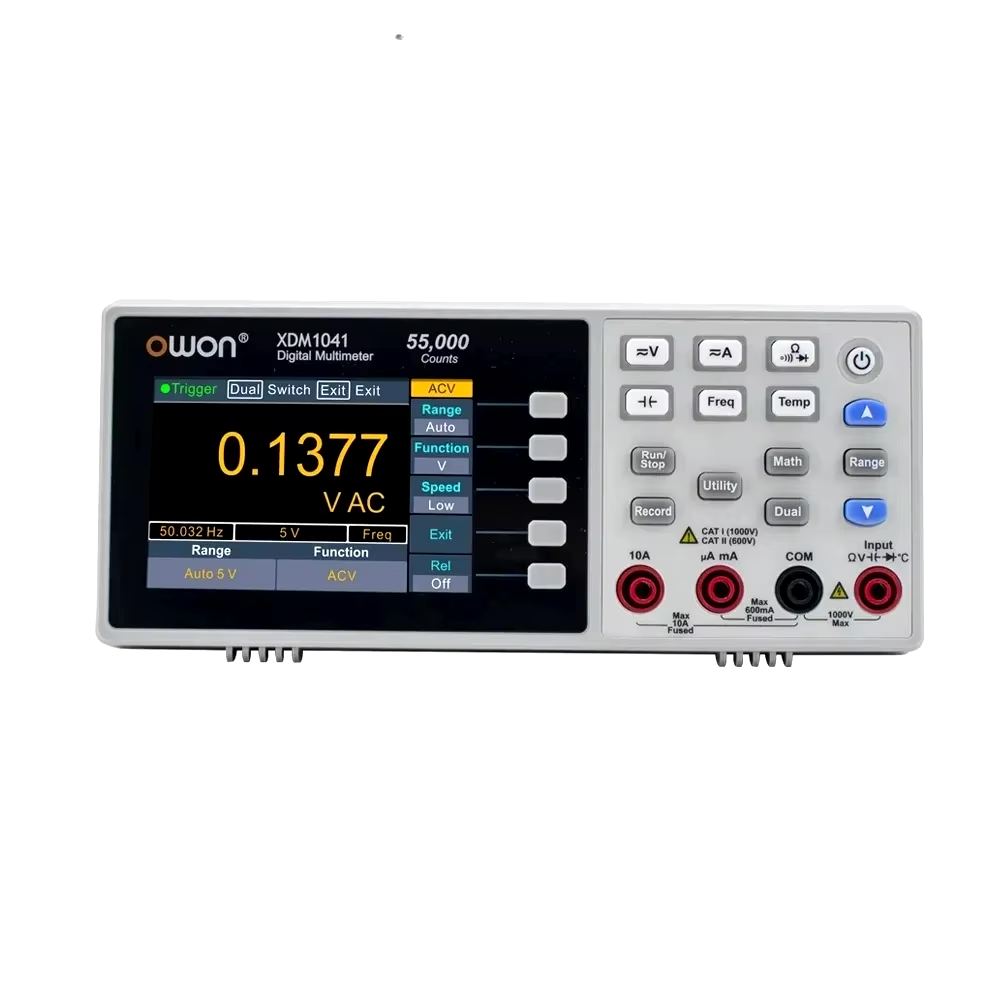

Owon XDM1041 Bench Multimeter ‚Äì 55,000 Counts, True RMS, USB Connectivity

Key Features

3.7-inch TFT LCD with resolution 480×320 for clear readings.
Record Interval: 15 ms – 9999.999 s with up to 1,000 recorded points.
Wide Operating Environment: from 0℃ to 50℃ with up to 80% RH at 40℃.
Remote Interface: RS-232 or USB Device for easy connectivity.
Standard SCPI Programming Language, compatible with mainstream multimeter commands.
Compact and Lightweight: Dimensions 200 mm x 86.5 mm x 64 mm, Weight 0.45 kg.

Function	Range^[2]	Resolution	Accuracy: ± (% of reading + LSB)
DC Voltage	50.000 mV	0.001 mV	0.1% + 10
	500.00 mV	0.01 mV	0.05% + 5
	5.0000 V	0.0001 V	0.05% + 5
	50.000 V	0.001 V	0.05% + 5
	500.00 V	0.01 V	0.1% + 5
	1000.0 V^[3]	0.1 V	0.1% + 10
True RMS AC Voltage^[4]	500 mV – 750 V	20 Hz – 45 Hz	1% + 30
	500 mV – 750 V	45 Hz – 65 Hz	0.5% + 30
	500 mV – 750 V	65 Hz – 1 kHz	0.7% + 30
DC Current	500 µA	0.01 µA	0.15% + 20
	5000 µA	0.1 µA	0.15% + 10
	50 mA	0.001 mA	0.15% + 20
	500 mA	0.01 mA	0.15% + 10
	5 A	0.0001 A	0.5% + 10
	10 A^[5]	0.001 A	0.5% + 10
True RMS AC Current^[6]	500 µA – 500 mA	-	0.5% + 20
True RMS AC Current^[6]	5 A – 10 A	-	1.5% + 20
Resistance^[7]	500 Ω	0.01 Ω	0.15% + 10
	5 kΩ	0.0001 kΩ	0.15% + 5
	50 kΩ	0.001 kΩ	0.15% + 5
	500 kΩ	0.01 kΩ	0.15% + 5
	5 MΩ	0.0001 MΩ	0.3% + 5
	50 MΩ	0.001 MΩ	1% + 10
Diode	3.0000 V	0.0001 V	1% + 10
Continuity	1000 Ω	0.1 Ω	Adjustable threshold
Frequency^[8]	10.000 Hz – 60 MHz	-	±(0.2% + 10)
Capacitance^[9]	50 nF – 500 µF	-	2.5% + 10
Capacitance^[9]	5 mF – 50 mF	0.1 Ω	5% + 10
Temperature	K type, PT100	-	-

Note: Specifications are for 30-minute warm-up, "Low" measurement rate and calibration temperature 18℃ - 28℃.

Display Screen	3.7-inch TFT LCD with resolution 480×320
Operating Environment	Temperature: 0℃ to 50℃, 80% RH (up to 40℃), non-condensing
Storage Temperature	-20℃ to 70℃

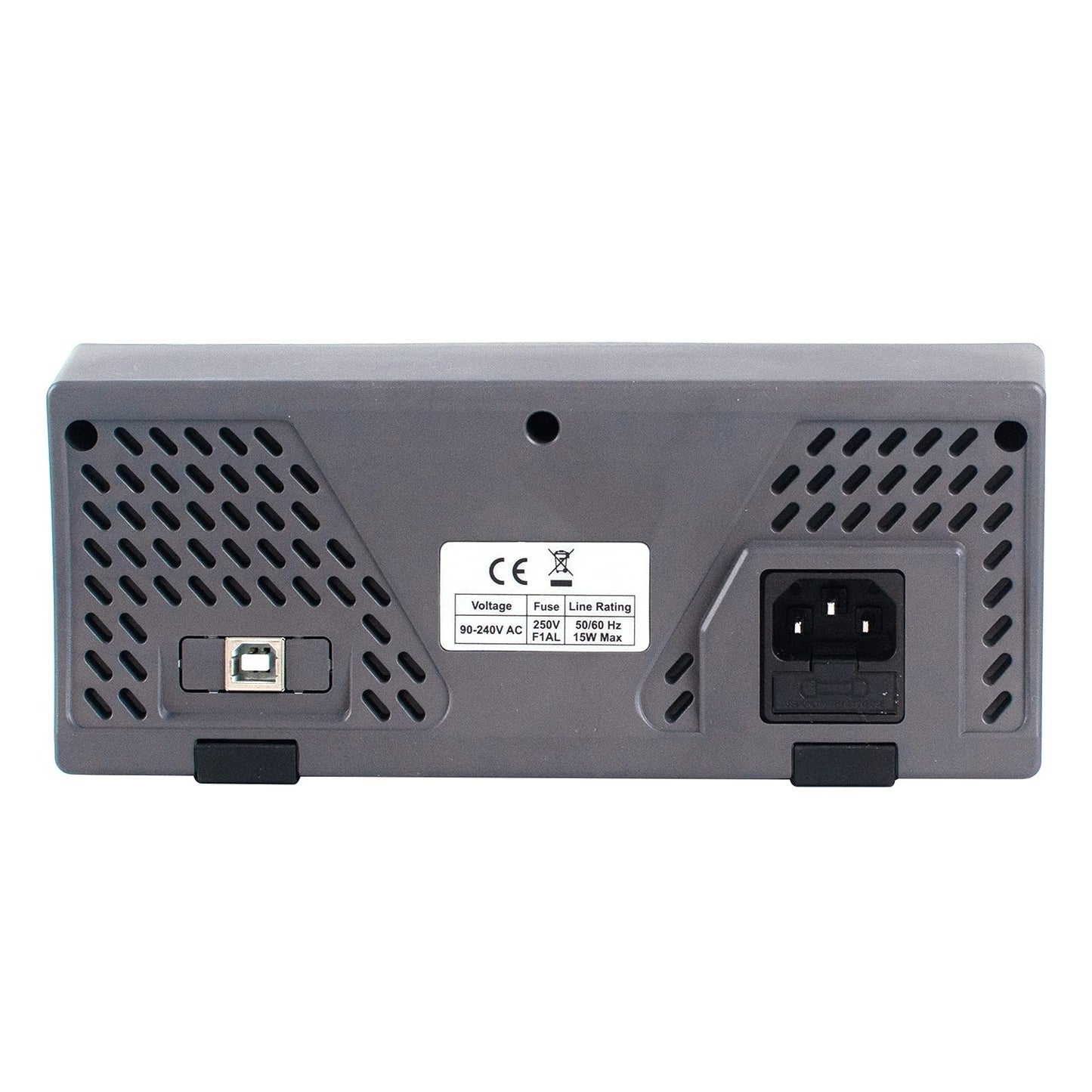

Remote Interface	RS-232 or USB Device
Programmer Language	Standard SCPI, compatible with commands of mainstream multimeters
Warm Up Time	30 minutes
Dimensions (W×H×D)	200 mm × 86.5 mm × 64 mm
Weight	0.45 kg

Specifications Conditions: Specifications apply after a 30-minute warm-up at the operating environment of 18℃ to 28℃, with the instrument at "Low" measurement rate.
Ranges can be exceeded by 10% on all ranges except for 1000 V DC, 750 V AC, 10 A DC, 10 A AC, 50 MΩ resistance, and 50 mF capacitance ranges.
For each additional volt over ±500 VDC, add 0.02 mV of error.
True RMS AC voltage specifications are for a sine wave input amplitude >5% of the range. For input sine waves from 1% to 5% of the range, add 0.1% error.
A duty cycle of 30 seconds ON followed by 30 seconds OFF is recommended for continuous currents higher than DC 7 A or AC RMS 7 A.
True RMS AC current specifications are for a sine wave input amplitude >0.5% of the range. For inputs from 1% to 5% of the range, add 0.1% of the range extra error.
Resistance specifications are for 2–wire ohms using the relative operation function. Without relative operation, add ±0.20 Ω additional error in 2-wire ohms function.
Frequency specifications are applicable to inputs as follows: for frequency ≤10 MHz, AC input voltage >1 V; for frequency >10 MHz, AC input voltage >3 V.
Capacitance specifications assume the use of the relative operation function. Using non-film capacitors may introduce additional errors. Specifications apply for inputs from 5% to 110% of each range.
