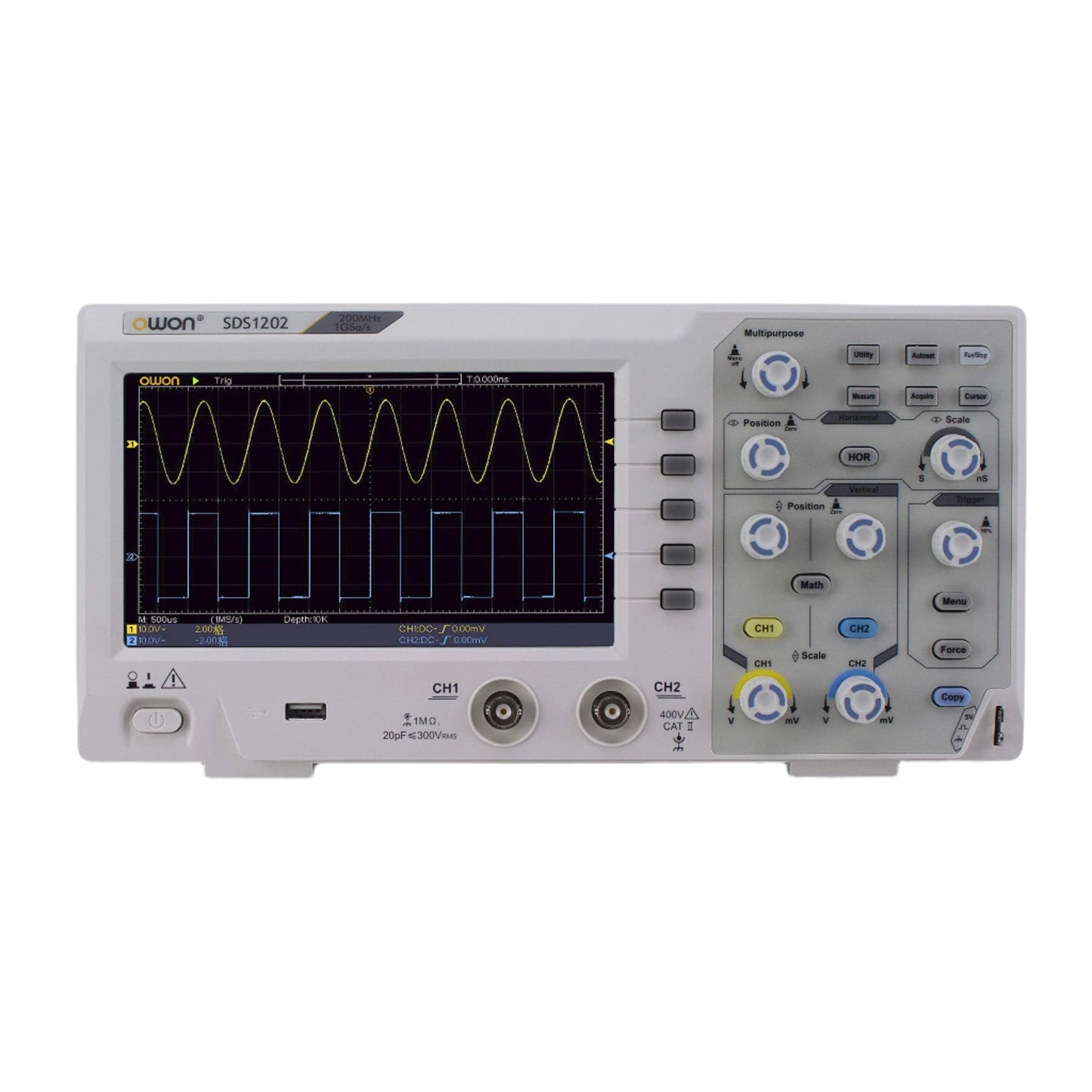

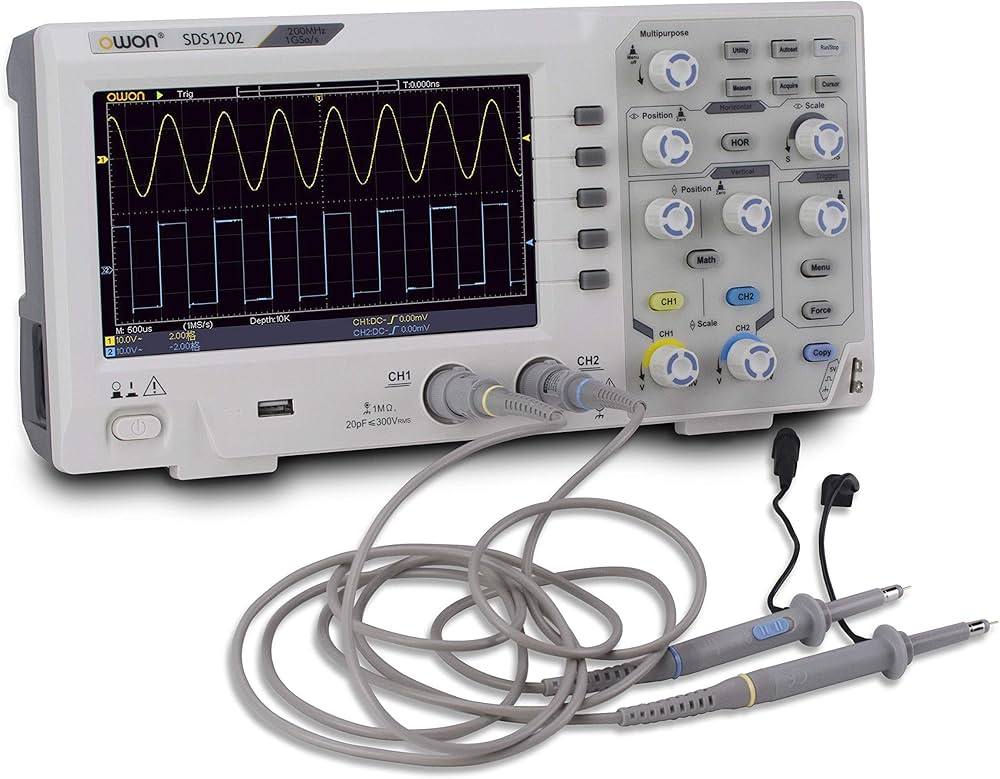

We are known as one of world's leading China manufacturers and suppliers. Welcome to buy the famous brands' OWON sds1000 series super economical type digital oscilloscope, usb scope with cheap price from us. We have many products in stock at your choice. Consult the quotation with us now.
1.large display
7’’ high resolution LCD brings more waveform detafulfilling better visual effect.
2.Friendly UI interaction
Easy-accessible operation menu gets you to the result conveniently.
3.Windows extension
The function facilitates the observation of abnormal signal from full waveform.
4.Snapshot
One click, all measurement value comes from 30 auto-measurement options.
5. Size & Package
Specs
| Model |
SDS1022 |
SDS1052 |
SDS1102 |
SDS1202 |
| Bandwidth |
20MHz |
50MHz |
100MHz |
200MHz |
| Sample Rate |
100MS/s |
500MS/s |
1GS/s |
| Horizontal Scale (s/div) |
5ns/div - 1000s/div, step by 1 - 2 - 5 |
2ns/div - 1000s/div, step by 1 - 2 - 5 |
| Channel |
2 |
| Display |
7" color LCD, 800 x 480 pixels |
| Input Coupling |
DC, AC , and GND |
| Vertical Resolution (A/D) |
8 bits (2 channels simultaneously) |
| Vertical Sensitivity |
5mV/div - 5V/div (at input) |
| Trigger Type |
Edge, Video |
| Trigger Mode |
Auto, Normal, and Single |
| Waveform Math |
＋, －, x, ÷, invert, FFT |
| Fuse |
2A, T class, 250V |
| Dimension (W x H x D) |
301 x 152 x 70 mm |
| Device Weight |
1.10 kg |
