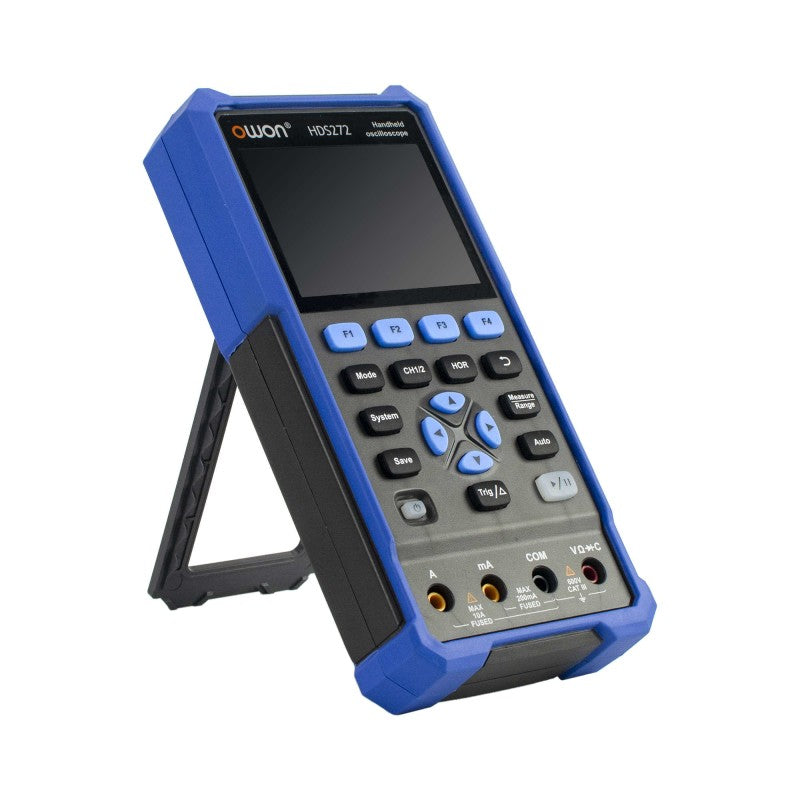

OWON HDS272 Handheld Oscilloscope 70MHz 2CH with 20,000-Count Multimeter
OWON HDS272 Handheld Oscilloscope 70MHz 2CH with 20,000-Count Multimeter
Regular price
$124.99 USD
Regular price
$153.00 USD
Sale price
$124.99 USD
Unit price
/
per
Free Shipping
No Extra Costs
Local Warehouse
Shipping from US
Easy Returns
No Return Cost
Couldn't load pickup availability

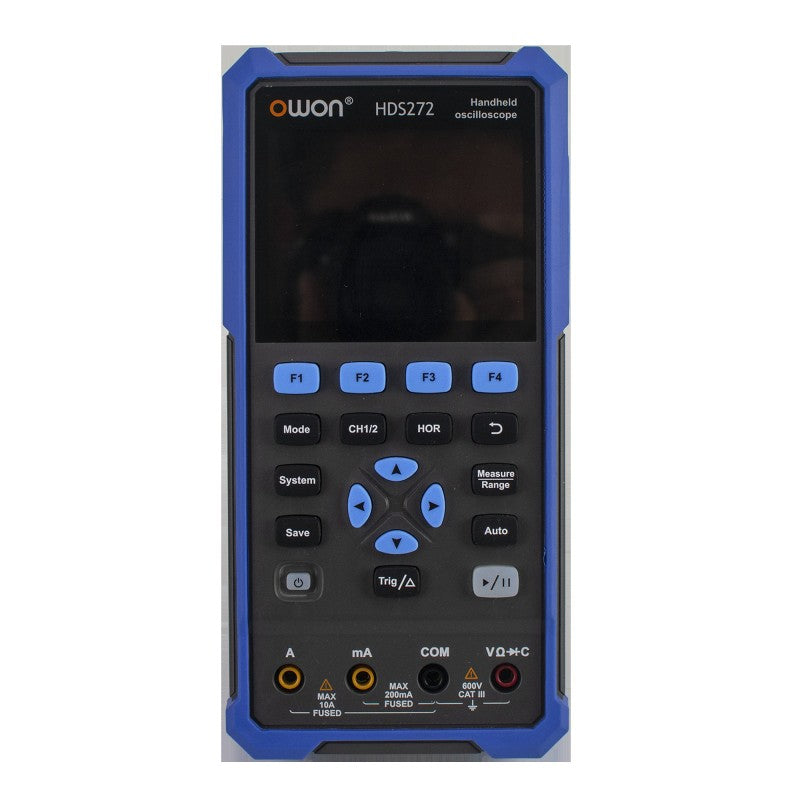

The OWON HDS272 is a portable HDS200-series oscilloscope for field diagnostics, electronics troubleshooting, and service work. It combines a 70 MHz two-channel digital oscilloscope with a 20,000-count digital multimeter in a compact USB-C rechargeable instrument.
Key features
- 70 MHz HDS200-series handheld oscilloscope for field and bench troubleshooting
- Two oscilloscope channels with up to 250 MSa/s single-channel sampling
- 8K record length and up to 10,000 wfms/s waveform refresh rate
- 20,000-count multimeter for voltage, current, resistance, capacitance, diode, and continuity tests
- 3.5-inch color LCD with USB Type-C interface and rechargeable 18650 battery power
- SCPI support for secondary development and PC software connection
Spec
Official oscilloscope specifications
| Model | HDS272 |
|---|---|
| Bandwidth | 70 MHz |

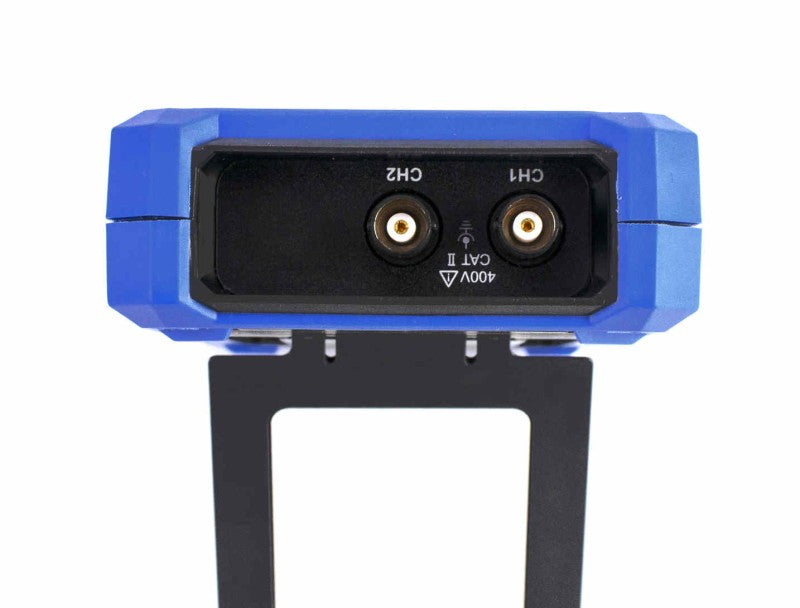

| Channels | 2 oscilloscope channels |
| Sample rate | 125 MSa/s dual channel; 250 MSa/s single channel |
| Acquisition mode | Normal, peak detect |
| Record length | 8K |
| Display | 3.5-inch LCD |
| Waveform refresh rate | 10,000 wfms/s |
| Input coupling | DC, AC, and Ground |
| Input impedance | 1 Mohm +/-2%, in parallel with 16 pF +/-10 pF |
| Probe attenuation factors | 1X, 10X, 100X, 1000X, 10000X |
| Maximum input voltage | 400 V (DC+AC, PK-PK, 1 Mohm input impedance, 10:1 probe attenuation) |
| Bandwidth limit | 20 MHz typical; full bandwidth |
| Horizontal scale | 5 ns/div to 1000 s/div, step by 1-2-5 |
| Vertical sensitivity | 10 mV/div to 10 V/div |
| Vertical resolution | 8 bits |
| Trigger | Edge trigger; Auto, Normal, Single modes |
| Automatic measurement | Frequency, Period, Amplitude, Max, Min, Mean, PK-PK |
| Cursor measurement | Delta V, Delta T, Delta T and Delta V between cursors |

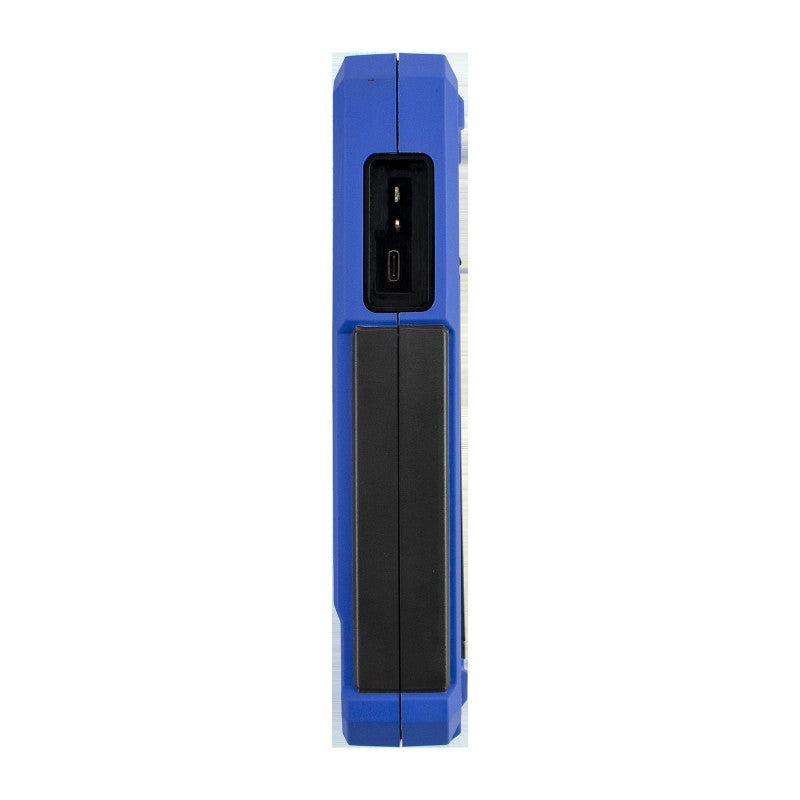

| Communication interface | USB Type-C |
Official multimeter specifications
| Maximum resolution | 20,000 counts |
|---|---|
| Test modes | Voltage, current, resistance, capacitance, diode, continuity |
| Input impedance | 10 Mohm |
| Maximum input voltage | AC 750 V; DC 1000 V |
| Maximum input current | DC 10 A; AC 10 A |
| Diode test | 0 V to 2 V |
Local package and equipment references
| Instrument dimensions | 198 x 96 x 38 mm from TME HDS272 distributor reference |
|---|---|
| Shopify shipping weight | 1055 g, rounded from TME gross weight 1.0547 kg |

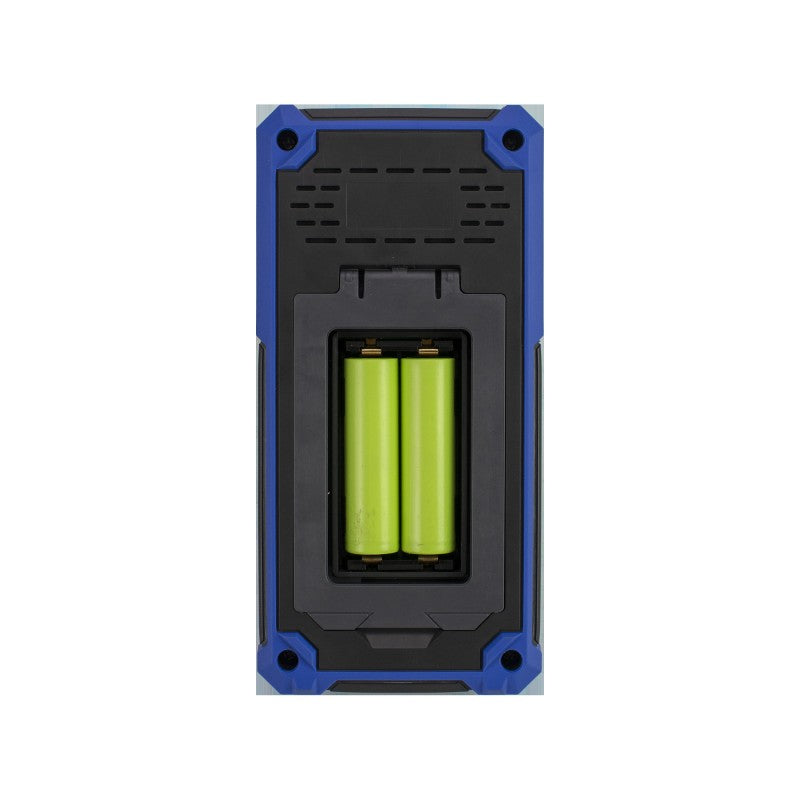

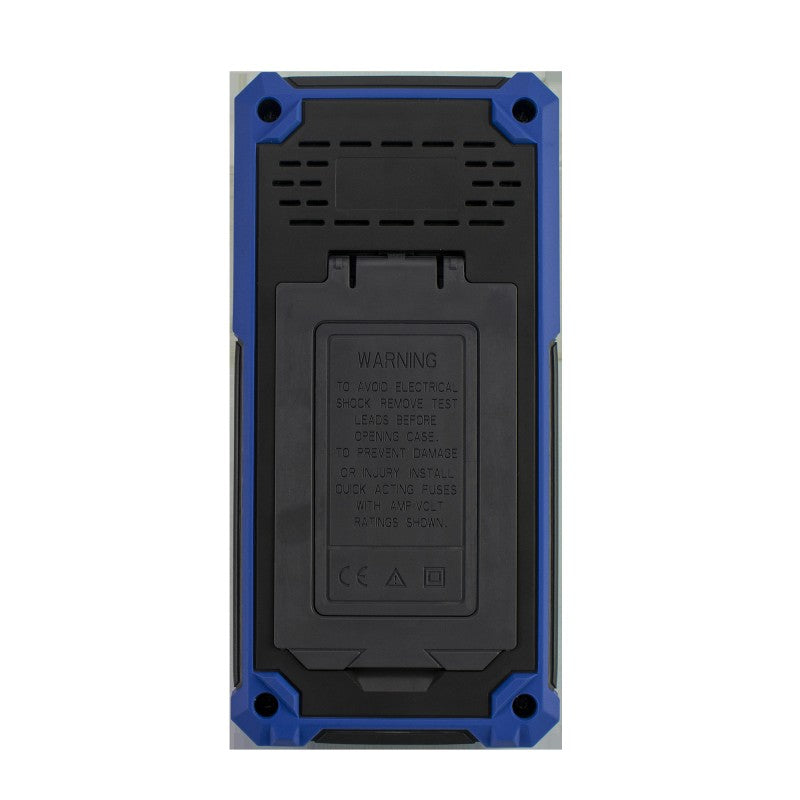

| Power | Rechargeable Li-Ion 18650 3.7 V 2200 mAh x2 |

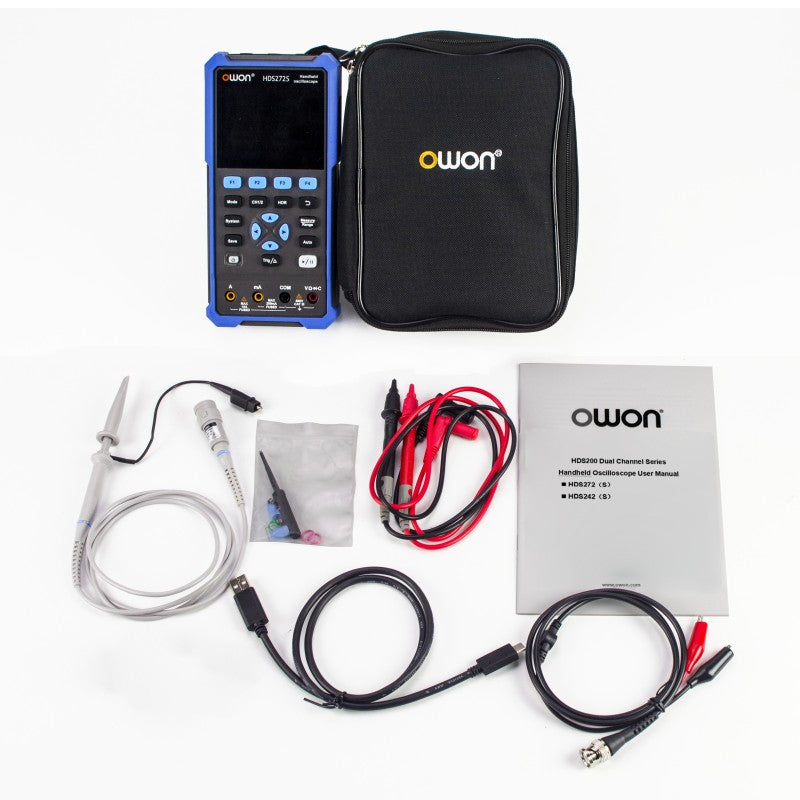

| Standard equipment | Adjusting tool, case, oscilloscope probe, power supply, BNC-to-crocodile-clip lead, test leads, USB cable |
| Waveform generator | Not included on HDS272 non-S model; generator specifications apply only to HDS242S/HDS272S/HDS2102S/HDS2202S models |
