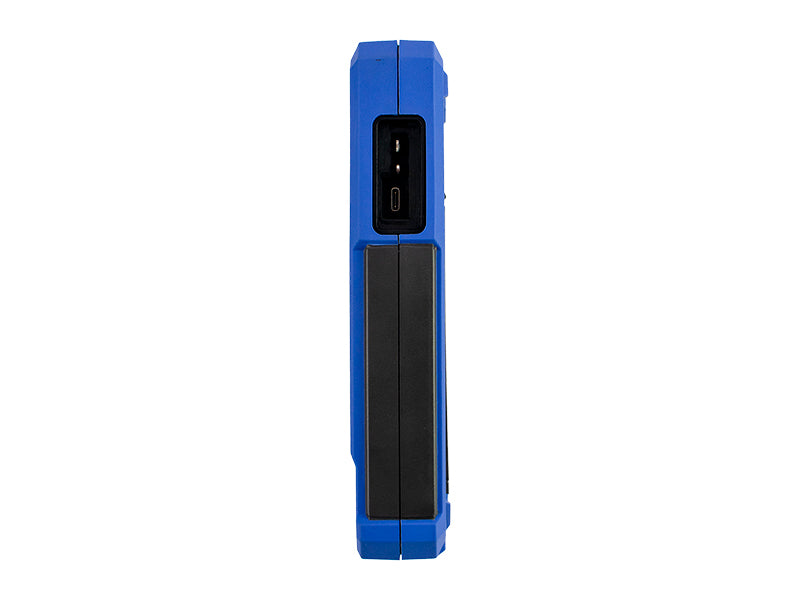

OWON HDS242S Handheld Oscilloscope 40MHz 2CH with Multimeter and Waveform Generator

Name: OWON HDS242S Handheld Oscilloscope 40MHz 2CH with Multimeter and Waveform Generator
Brand: OWON
SKU: STINF-DO-0101
Price: 124.99 USD
Availability: InStock

$124.99 USD

~~$153.00 USD~~ $124.99 USD

Sale Sold out

Quantity

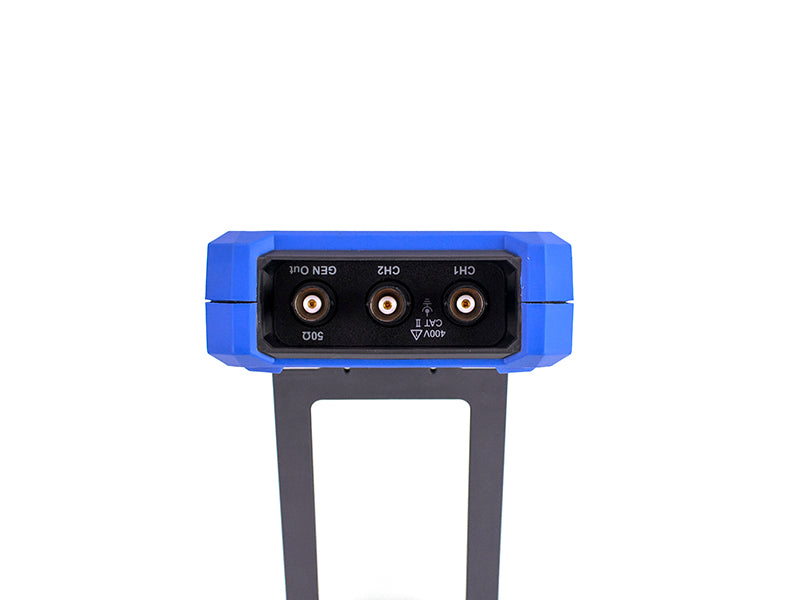

The OWON HDS242S is a compact HDS200-series handheld instrument for bench and field troubleshooting. It combines a 40 MHz two-channel digital oscilloscope, a 20,000-count multimeter, and a one-channel waveform generator in one portable USB-C rechargeable tool.

Key features

3-in-1 handheld instrument: oscilloscope, multimeter, and waveform generator
40 MHz bandwidth with two oscilloscope channels and up to 250 MSa/s sampling
8K record length and up to 10,000 wfms/s waveform refresh rate
20,000-count multimeter for voltage, current, resistance, capacitance, diode, and continuity tests
Built-in one-channel waveform generator with sine output up to 25 MHz
3.5-inch color LCD, USB Type-C interface, and rechargeable 18650 battery power

Spec

Oscilloscope specifications

Bandwidth	40 MHz for HDS242S
Channels	2 channels
Sample rate	125 MSa/s dual channel; 250 MSa/s single channel
Acquisition mode	Normal, peak detect
Record length	8K
Display	3.5-inch LCD
Waveform refresh rate	10,000 wfms/s
Input coupling	DC, AC, and Ground
Input impedance	1 Mohm +/-2%, in parallel with 16 pF +/-10 pF
Probe attenuation factors	1X, 10X, 100X, 1000X, 10000X
Maximum input voltage	400 V (DC+AC, PK-PK, 1 Mohm input impedance)
Bandwidth limit	20 MHz typical
Horizontal scale	5 ns/div to 1000 s/div, step by 1-2-5
Vertical sensitivity	10 mV/div to 10 V/div
Vertical resolution	8 bits
Trigger	Edge trigger; Auto, Normal, Single modes
Automatic measurement	Frequency, Period, Amplitude, Max, Min, Mean, PK-PK
Cursor measurement	Delta V, Delta T, Delta T and Delta V between cursors
Communication interface	USB Type-C

Multimeter specifications

Maximum resolution	20,000 counts
Test modes	Voltage, current, resistance, capacitance, diode, continuity
Input impedance	10 Mohm
Maximum input voltage	AC 750 V; DC 1000 V
Maximum input current	DC 10 A; AC 10 A
Diode test	0 V to 2 V

Waveform generator specifications

Sine frequency	0.1 Hz to 25 MHz
Square frequency	0.1 Hz to 5 MHz
Ramp frequency	0.1 Hz to 1 MHz
Pulse frequency	0.1 Hz to 5 MHz
Arbitrary frequency	0.1 Hz to 5 MHz
Sampling rate	125 MSa/s
Channels	1 channel
Amplitude range	20 mVpp to 5 Vpp into high impedance
Waveform length	8K
Vertical resolution	14 bits
Output impedance	50 ohms

Mechanical and package references

Instrument dimensions	Approx. 180 x 120 x 50 mm
Instrument weight	Approx. 600 g
Shipping weight used for Shopify	1105 g from current distributor gross-weight reference
Power	Rechargeable 18650 lithium battery power
Typical included accessories	Quick guide, USB cable, probe adjust tool, multimeter leads, soft bag, oscilloscope probes, BNC-to-alligator clip lead
