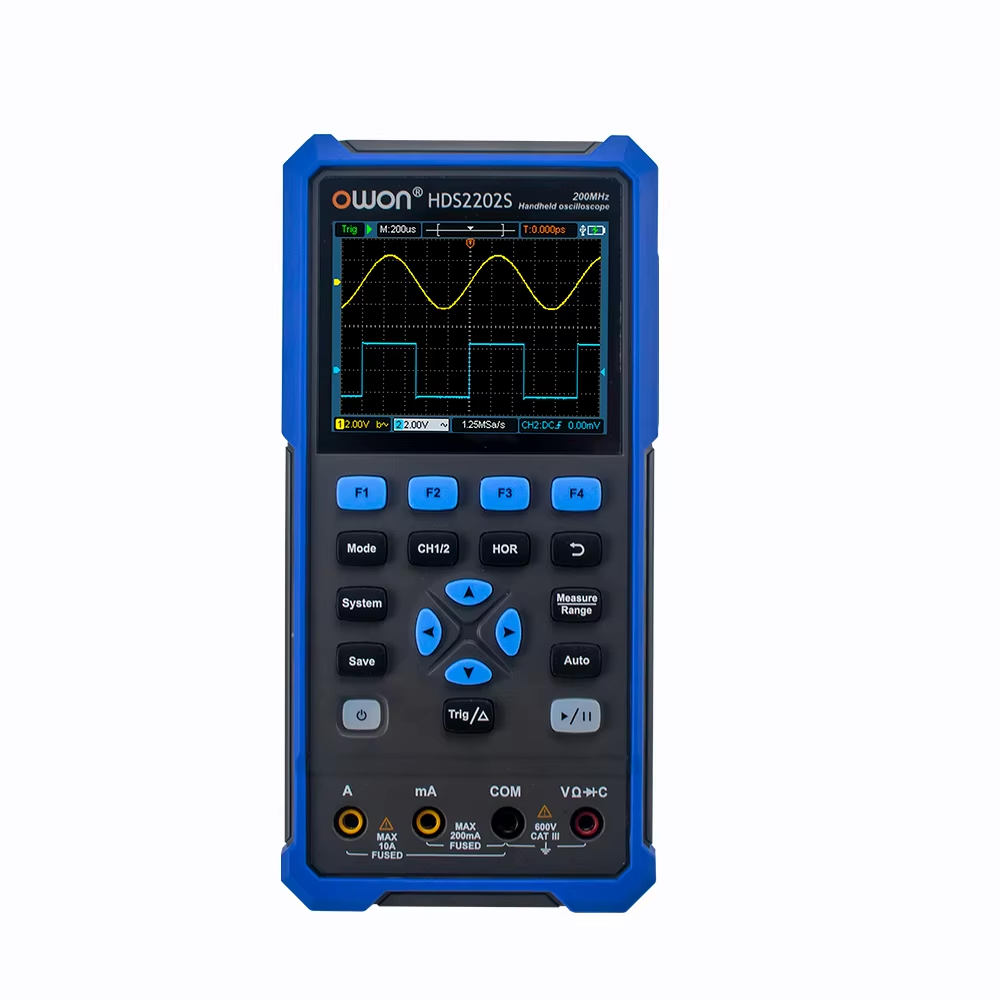

HDS200 Series Oscilloscope Technical Specifications:
Unless otherwise stated, all technical specifications are applicable to the probe with the attenuation switch set to 10X and this series of oscilloscopes. To meet these specifications and standards, the following conditions must be met:
- The instrument must be operated continuously for more than 30 minutes at the specified operating temperature.
- If the operating temperature variation range reaches or exceeds 5℃, the system function menu must be opened to execute the "automatic correction" program.
All specifications are guaranteed except those marked as "typical".
Key Features
-
Bandwidth: 200 MHz
-
2-Channel Input for simultaneous signal measurement and analysis
-
High Real-time Sampling Rate: Up to 1 GSa/s for accurate and detailed signal representation
-
10,000 wfms/s Waveform Refresh Rate ensures efficient real-time signal tracking
-
Vertical Sensitivity: From 10 mV/div to 10 V/div, adjusting to various signal levels
-
Built-in 20,000 Count Multimeter for comprehensive measurements (voltage, current, resistance, capacitance, continuity, diode)
-
Auto Range and True RMS functionalities for accurate and simplified measurements
-
Large 3.5-inch Color LCD Display with 320×240 pixel resolution and adjustable contrast
-
Optional Arbitrary Waveform Generator providing a variety of waveform outputs up to 25 MHz
-
Portable Design: Lightweight (approximately 0.6 kg) with dimensions of 198 mm × 96 mm × 38 mm
-
Rechargeable Li-ion Battery (2 × 2600 mAh) for extended operation time
Specs
| Bandwidth |
200 MHz |
| Channels |
2 |
| Real-time Sampling Rate |
1 GSa/s |
| Waveform Refresh Rate |
10,000 wfms/s |
| Sampling Method |
Sampling, Peak Detection |

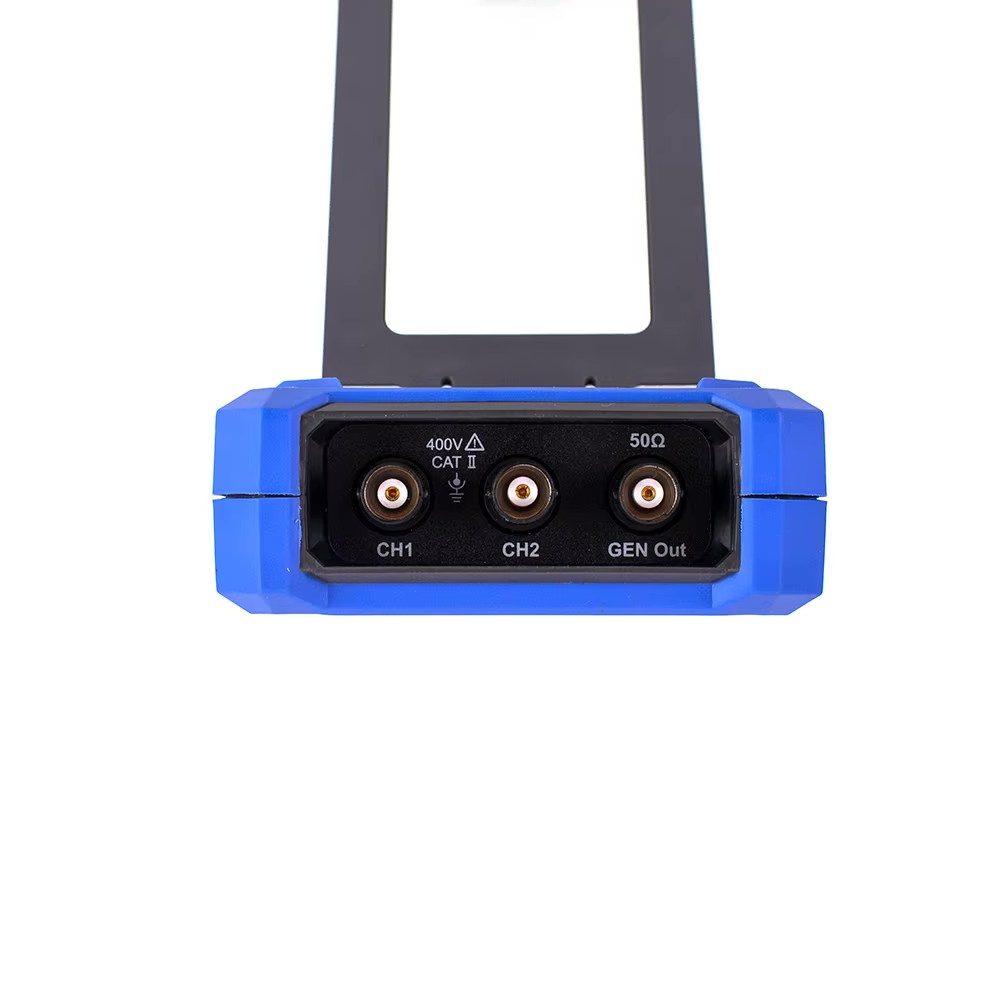

Input Characteristics
| Input Coupling |
DC, AC, Ground |
| Input Impedance (DC Coupling) |
1 MΩ ± 2% in parallel with 16 pF ± 10 pF |
| Probe Attenuation |
1X, 10X, 100X, 1000X, 10000X |
| Maximum Input Voltage |
400 V (DC + AC, Peak-to-Peak) |
| Bandwidth Limit |
20 MHz or Full bandwidth |
Horizontal System
| Sampling Rate Range |
0.25 Sa/s to 250 MSa/s |
| Waveform Interpolation |
(Sin x)/x |
| Sweep Speed Range (s/div) |
2 ns/div to 1000 s/div (Stepping in the 1-2-5 sequence) |
| Time Base Accuracy |
±100 ppm |
| Record Length |
8K or 4K (optional) |
Vertical System
| Sensitivity (Volts/div) Range |
10 mV/div to 10 V/div |
| Displacement Range |
±2 V (for 10 mV/div to 200 mV/div), ±100 V (for 500 mV/div to 10 V/div) |
| Analog Bandwidth |
200 MHz |
| Single Bandwidth |
Full bandwidth |
| Low Frequency Response (AC Coupling, -3 dB) |
≥10 Hz |
| Rise Time (typical on BNC) |
≤1.75 ns |
| DC Gain Accuracy |
3% |
Measurements
| Cursor Measurements |
ΔV, ΔT |
| Automatic Measurements |
Period, Frequency, Mean, PK-PK, Max, Min, Amplitude, RMS, Rise Time, Fall Time, +Pulse Width, -Pulse Width |
Triggering
| Trigger Source |
CH1, CH2 |
| Trigger Type |
Edge (Rising or Falling) |
| Trigger Coupling |
DC, AC |
| Trigger Mode |
Auto, Normal, Single |
| Trigger Electrical Level Range |
±4 divisions from the center of the screen |
| Trigger Electrical Level Accuracy |
±0.3 divisions |
| Trigger Displacement |
According to the record length and time base |
Probe Compensation Output
| Output Voltage (typical) |
3.3 Vpp, High-Z |
| Frequency (typical) |
Square wave, 1 kHz (±1%) |
Digital Multimeter Specifications
| Digital Display |
20,000 readings |
| Measurement Type |
Voltage, Current, Resistance, Capacitance, Continuity (On/Off), Diode |
| Maximum Input Voltage |
AC: 750 V, DC: 1000 V |
| Maximum Input Current |
AC: 10 A, DC: 10 A |
| Auto Range |
Yes |
| True RMS |
Yes |
Multimeter Basic Functions and Accuracy
| Function |
Range |
Minimum Resolution |
Accuracy |
| DC Voltage |
200.00 mV |
0.01 mV |
±(0.3% + 10 digits) |
| 2.0000 V |
0.1 mV |
±(0.3% + 5 digits) |
| 20.000 V |
1 mV |
±(0.3% + 5 digits) |
| 200.00 V |
0.01 V |
±(0.3% + 3 digits) |
| 1000.0 V |
0.1 V |
±(0.3% + 3 digits) |
| AC Voltage [1] |
200.00 mV |
0.01 mV |
±(0.8% + 10 digits) |
| 2.0000 V |
0.1 mV |
±(0.8% + 10 digits) |
| 20.000 V |
1 mV |
±(0.8% + 10 digits) |
| 200.00 V |
0.01 V |
±(0.8% + 10 digits) |
| 750.0 V |
0.1 V |
±(1% + 10 digits) |
|
Frequency Range for AC Voltage: 40 Hz to 1000 Hz |
| DC Current |
200.00 mA |
0.01 mA |
±(0.8% + 10 digits) |
| 10.000 A |
1 mA |
±(2.5% + 10 digits) |
| Overload protection for mA function: self-healing fuse 400 mA/250 V; Ampere function: 10 A/600 V, D5.2×20, fast-acting fuse |
| AC Current [1] |
200.00 mA |
0.01 mA |
±(1% + 10 digits) |
| 10.000 A |
1 mA |
±(2.8% + 10 digits) |
|
Frequency Range for AC Current: 40 Hz to 1000 Hz |
| Overload protection for mA function: self-healing fuse 400 mA/250 V; Ampere function: 10 A/600 V, D5.2×20, fast-acting fuse |
| Resistance |
200.00 Ω |
0.01 Ω |
±(0.8% + 10 digits) |
| 2.0000 kΩ |
0.1 Ω |
±(0.8% + 5 digits) |
| 20.000 kΩ |
1 Ω |
±(0.8% + 3 digits) |
| 200.00 kΩ |
10 Ω |
±(0.8% + 3 digits) |
| 2.0000 MΩ |
0.1 kΩ |
±(0.8% + 3 digits) |
| 20.000 MΩ |
1 kΩ |
±(1% + 3 digits) |
| 100.00 MΩ |
0.01 MΩ |
±(5% + 10 digits) |
| Capacitance [1] |
20.000 nF |
1 pF |
±(3.0% + 10 digits) |
| 200.00 nF |
10 pF |
±(3.0% + 10 digits) |
| 2.0000 μF |
0.1 nF |
±(3.0% + 10 digits) |
| 20.000 μF |
1 nF |
±(3.0% + 10 digits) |
| 200.00 μF |
10 nF |
±(3.0% + 10 digits) |
| 2.0000 mF |
0.1 μF |
±(3.0% + 10 digits) |
| Others |
Continuity test: √ (<50Ω), Diode test: √ (<0-2V) |
|
Optional Arbitrary Waveform Generator
The Owon HDS2202S supports an optional arbitrary waveform generator for additional signal generation capabilities.
| Waveform Types |
Sine, Square, Ramp, Pulse, EXP |
| Sine Wave Frequency Range |
0.1 Hz to 25 MHz |
| Square Wave Frequency Range |
0.1 Hz to 5 MHz |
| Ramp Wave Frequency Range |
0.1 Hz to 1 MHz |
| Pulse Wave Frequency Range |
0.1 Hz to 5 MHz |
| EXP Wave Frequency Range |
0.1 Hz to 5 MHz |
| Sampling Rate |
125 MSa/s |
| Amplitude (50 Ω Load) |
0.01 Vpp to 2.5 Vpp |
| DC Offset (High Z) |
±(2.5 V – (Amplitude Vpp/2)) |
| Frequency Resolution |
0.01% |
| Waveform Depth |
8k points |
| Vertical Resolution |
14-bit |
| Output Channel |
1 |
| Output Impedance |
50 Ω |
General Technical Specifications
Display
| Display Type |
3.5-inch color LCD |
| Display Resolution |
320 (horizontal) × 240 (vertical) pixels |
| Display Color |
65,536 colors |
| Display Contrast |
Adjustable |
Power Supply
| Power Supply |
100 - 240 VAC RMS, 50/60 Hz, CAT II; DC Input: 5 VDC, 2 A |
| Power Consumption |
≤6 W |

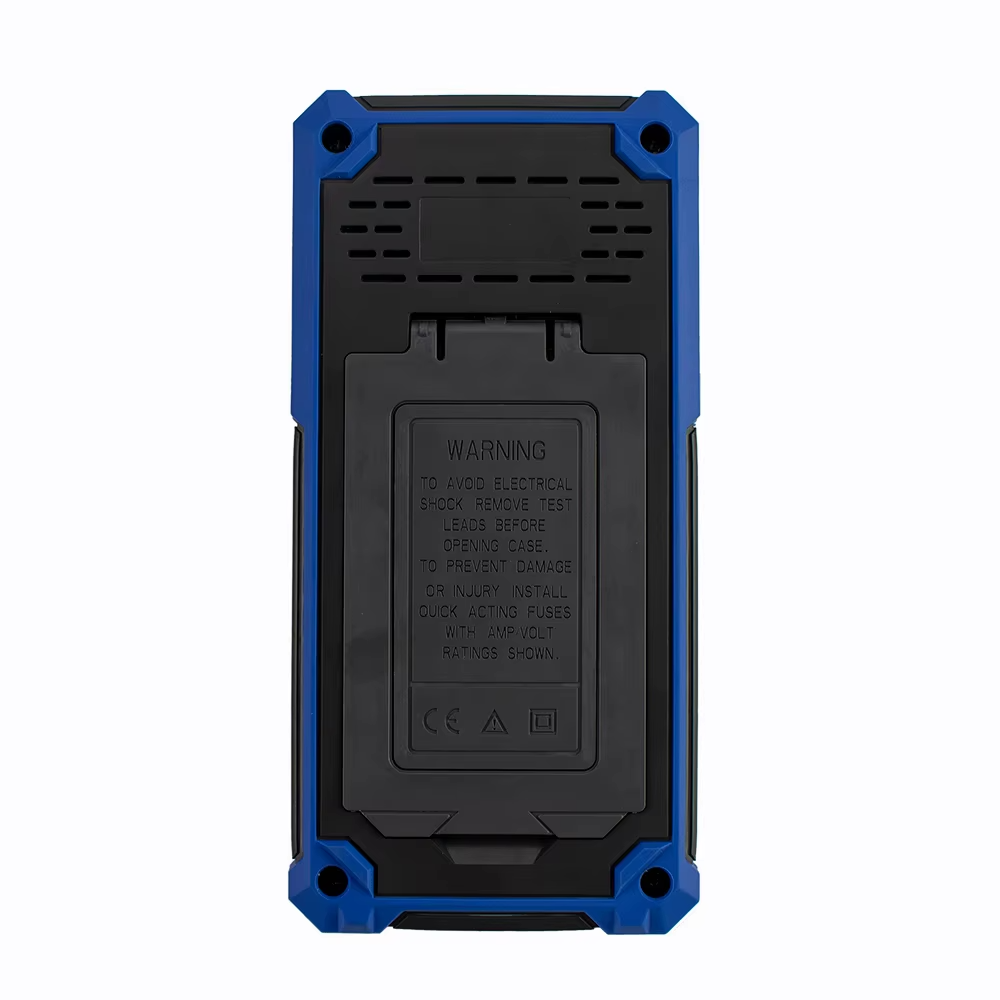

| Battery |
2 × 2600 mAh (3.7 V, 18650) |
Environmental Specifications
| Operating Temperature |
0℃ to 40℃ |
| Storage Temperature |
-20℃ to +60℃ |
| Relative Humidity |
≤90% |
| Operating Altitude |
Up to 3,000 meters |
| Non-operating Altitude |
Up to 15,000 meters |
| Cooling Method |
Natural cooling |
Mechanical Specifications
| Dimensions (L × H × W) |
198 mm × 96 mm × 38 mm |
| Weight |
Approximately 0.6 kg (main unit, without battery) |
| Recommended Calibration Interval |
One year |
Notes
-
[1] When measuring AC voltage, AC current, or capacitance, the accuracy guaranteed range is from 5% to 100% of the specified range.
- All specifications apply after the instrument has been on for at least 30 minutes at the specified operating temperature and after the "automatic correction" program has been run if temperature variations of 5℃ or more have occurred.
- All specifications are guaranteed except those marked as "typical".
