OWON HDS2102S Handheld Oscilloscope 100MHz 2CH with Multimeter and Waveform Generator

Name: OWON HDS2102S Handheld Oscilloscope 100MHz 2CH with Multimeter and Waveform Generator
Brand: OWON
SKU: STINF-DO-0111
Price: 184.99 USD
Availability: InStock

$184.99 USD

~~$236.00 USD~~ $184.99 USD

Sale Sold out

Quantity

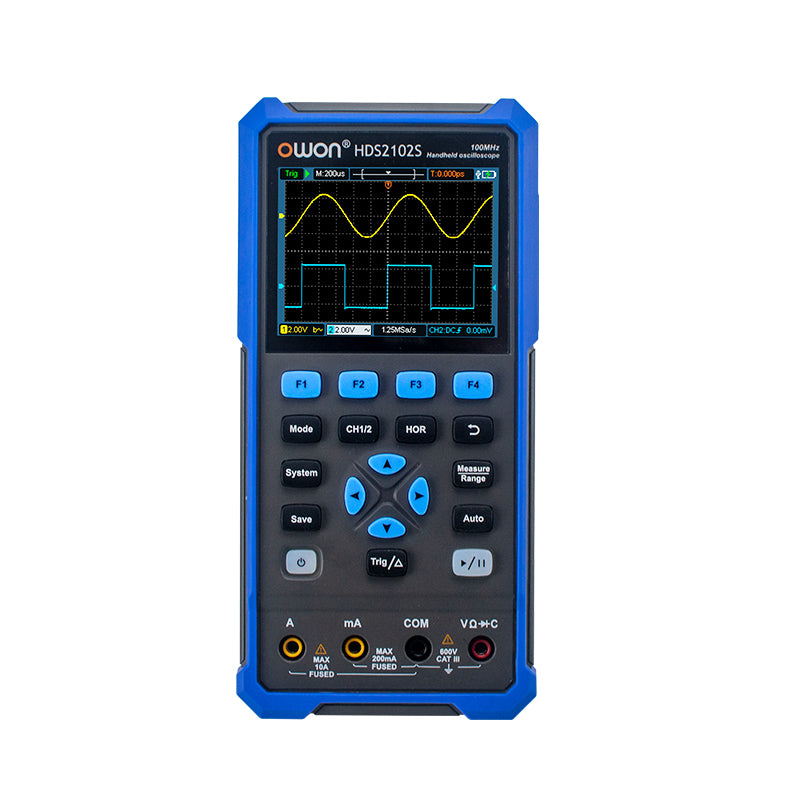

The OWON HDS2102S is a 100 MHz HDS200-series handheld oscilloscope for field diagnostics, bench troubleshooting, and portable electronics work. The S model combines a two-channel oscilloscope, a 20,000-count digital multimeter, and a one-channel waveform generator in one USB-C rechargeable tool.

Key features

100 MHz two-channel handheld oscilloscope in the OWON HDS200 series
S-model 3-in-1 tool: oscilloscope, 20,000-count multimeter, and waveform generator
1 GSa/s oscilloscope sample rate with 8K record length
Built-in waveform generator with sine output up to 25 MHz
USB Type-C interface, SCPI support, self-calibration, and rechargeable 18650 battery power

Spec

Official oscilloscope specifications

Specification	Value
Model	HDS2102S
Official series model	HDS2102(S)
Bandwidth	100 MHz
Channels	2-CH
Sample rate	1 GSa/s
Acquisition mode	Normal, Peak detect
Record length	8K
Display	3.5-inch LCD
Waveform refresh rate	10,000 wfrms/s
Input coupling	DC, AC, and Ground
Input impedance	1 Mohm +/-2%, in parallel with 16 pF +/-10 pF
Probe attenuation factors	1X, 10X, 100X, 1000X, 10000X
Maximum input voltage	400 V (DC+AC, PK-PK, 1 Mohm input impedance)
Bandwidth limit	20 MHz typical
Horizontal scale	2 ns/div to 1000 s/div, step by 1-2-5
Vertical sensitivity	10 mV/div to 10 V/div
Vertical resolution	8 bits
Trigger type	Edge
Trigger modes	Auto, Normal, Single
Automatic measurements	Frequency, Period, Amplitude, Max, Min, Mean, PK-PK
Cursor measurements	Delta V, Delta T, Delta T and Delta V between cursors
Communication interface	USB Type-C

Official multimeter specifications

Specification	Value
Maximum resolution	20,000 counts
Testing modes	Voltage, current, resistance, capacitance, diode, and continuity
Input impedance	10 Mohm
Maximum input voltage	AC 750 V, DC 1000 V
Maximum input current	DC 10 A, AC 10 A
Diode	0 V to 2 V

Official waveform generator specifications

Specification	Value
Sine frequency	0.1 Hz to 25 MHz
Square frequency	0.1 Hz to 5 MHz
Ramp frequency	0.1 Hz to 1 MHz
Pulse frequency	0.1 Hz to 5 MHz
Arbitrary frequency	0.1 Hz to 5 MHz
Sampling rate	125 MSa/s
Channel	1-CH
Amplitude range, high impedance	20 mVpp to 5 Vpp
Waveform length	8K
Vertical resolution	14 bits
Output impedance	50 ohms

Local package and included-accessory references

Reference	Value
Source-of-truth package dimensions	25 x 10 x 7 cm from db/listings.db
Source-of-truth shipping weight	1200 g from db/listings.db
Power	18650 lithium battery, 3-6 hours continuous work per official page
Included accessory types	Quick guide, USB cable, probe adjust, multimeter leads, soft bag, probes, BNC-to-alligator clip
