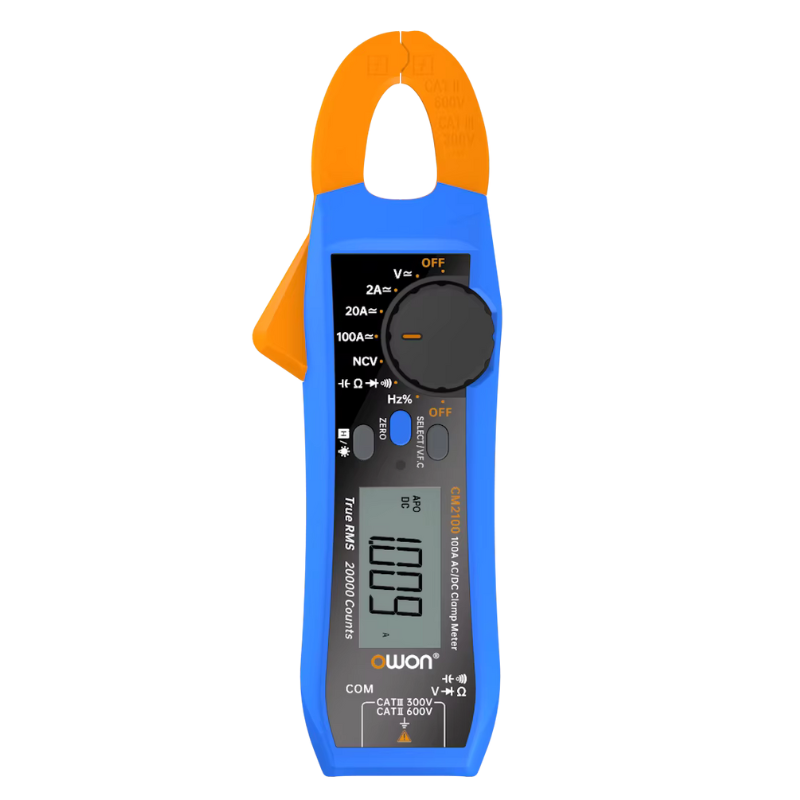

The OWON CM2100 is a compact smart AC/DC clamp meter for current, voltage, resistance, capacitance, frequency, duty cycle, diode, continuity, and NCV checks. It combines a 20000-count true RMS display, 100 A AC/DC current range, 600 V AC/DC voltage range, and VFC mode for measurements with high-frequency interference filtering.
Key features
- Measures AC/DC current up to 100 A and AC/DC voltage up to 600 V
- 20000-count true RMS automatic range clamp meter
- NCV non-contact AC voltage sensing
- VFC mode for voltage and current measurements with high-frequency interference filtering
- Frequency response from 40 Hz to 1000 Hz
- 17 mm jaw capacity in a compact clamp meter body
Spec
Official measurement specifications
| Function |
Range |
Accuracy |
Notes |
| AC Current (A) |
2.000 A |
±(3%+10 dig)
in VFC ±(4%+10) |
|
| AC Current (A) |
20.00 A
100.0 A |
±(2.5%+5 dig)
in VFC ±(4%+10) |
|
| AC Voltage (V) |
2.0000 V
20.000 V
200.00 V
600.0 V |
±(0.8%+10 dig)
in VFC ±(4%+3) |
|
| DC Current (A) |
2.000 A |
±(2%+8 dig) |
|
| DC Current (A) |
20.00 A
100.0 A |
±(2%+3 dig) |
|
| DC Voltage (V) |
200.00 mV |
±(0.7%+10 dig) |
|
| DC Voltage (V) |
2.0000 V
20.000 V
200.00 V
600.0 V |
±(0.5%+5 dig) |
|
| Resistance (R) |
200.0 Ω |
±(0.8%+10 dig) |
|
| Resistance (R) |
2.0000 kΩ |
±(0.5%+10 dig) |
|
| Resistance (R) |
20.000 kΩ
200.00 kΩ
2.0000 MΩ |
±(0.5%+10 dig) |
|
| Resistance (R) |
20.000 MΩ |
±(1%+10 dig) |
|
| Resistance (R) |
200.00 MΩ |
±(5.0%+10 dig) |
|
| Capacitance (F) |
2.000 nF |
±(4.0%+10 dig) |
|
| Capacitance (F) |
20.00 nF
200.0 nF
2.000 μF
20.00 μF
200.0 μF
2.000 mF
20.00 mF |
±(3.0%+10 dig) |
|
| Frequency (Hz) |
200.00 Hz
20.000 kHz
200.00 kHz
2.0000 MHz
20.000 MHz |
±(0.1%+5 dig) |
|
| Duty cycle (%) |
0.1% - 99.9%
typical: Vrms=1 V, f=1 kHz |
±(1.2%+3 dig) |
|
| Duty cycle (%) |
0.1% - 99.9% (≥1 kHz) |
±(2.5%+3 dig) |
|
Special functions
| Special function |
Value |
| Display |
20000 counts |
| Bluetooth Module |
CM2100B only |
| Frequency Response |
40 Hz - 1000 Hz |
| Zero |
Supported |
| Auto Ranging |
Supported |
| Low-battery Indicator |
Supported |
| Data Hold |
Supported |
| Relative Measurement |
Supported |
| Diode |
Supported |
| Input Protection |
Supported |
| Continuity Buzzer |
Supported |
| Input Impedance |
≥10 MΩ |
| NCV |
Supported |
| Overrange Alarm |
Supported |
| VFC |
Supported |
| On-off Warning |
Supported |
General specifications
| General specification |
Value |
| Model |
CM2100 |
| Official series models |
CM2100, CM2100B |
| Jaw Capacity |
17 mm |
| Battery |
2 x 1.5 V AAA |
| Dimension (L x W x D) |
182 mm x 57 mm x 32 mm |
| Weight without package |
0.2 kg |
| Source-of-truth package dimensions |
Not available in db/listings.db |
| Source-of-truth shipping weight |
Not available in db/listings.db |
Note: OWON lists CM2100 and CM2100B in the same official series. Bluetooth, recording, and app-control functions apply to CM2100B only; this SKU is prepared as CM2100.
