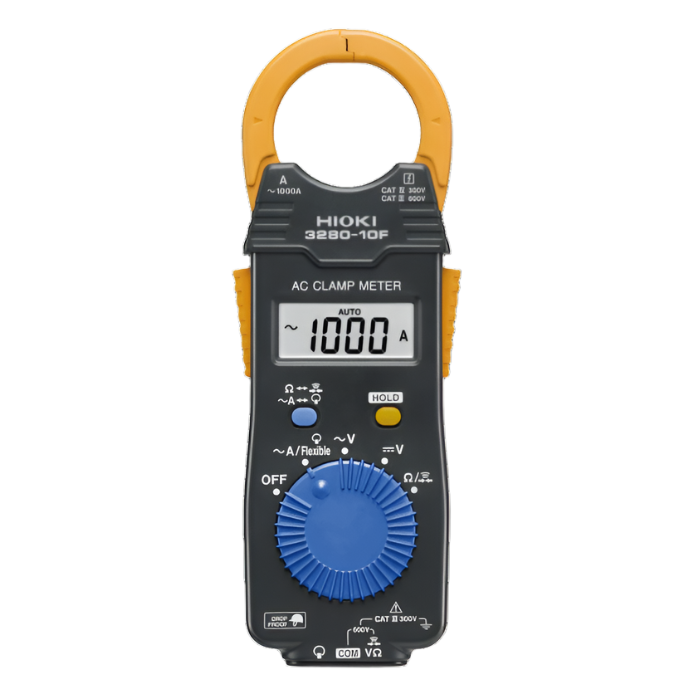

Hioki 3280-10F AC Clamp Meter

Hioki clamp meters are best-in-class measuring devices incorporating Hioki’ s expertise in current sensing technology. The 3280-10F is an average rectifying 1000A AC clamp meter that features a broad operating temperature range of -25°C to 65°C, thin and compact clamp core and optional flexible current sensor that you can attach to let you get into the tightest spots.

CAT IV 300 V (Current)
CAT III 600 V (Current)
CAT III 300 V (Voltage)

Using 3280 series AC clamp meters: Introduction to functionality and measurement methods

In addition to AC current measurement, these clamp meters provide voltage and resistance measurement as well as continuity check functionality.

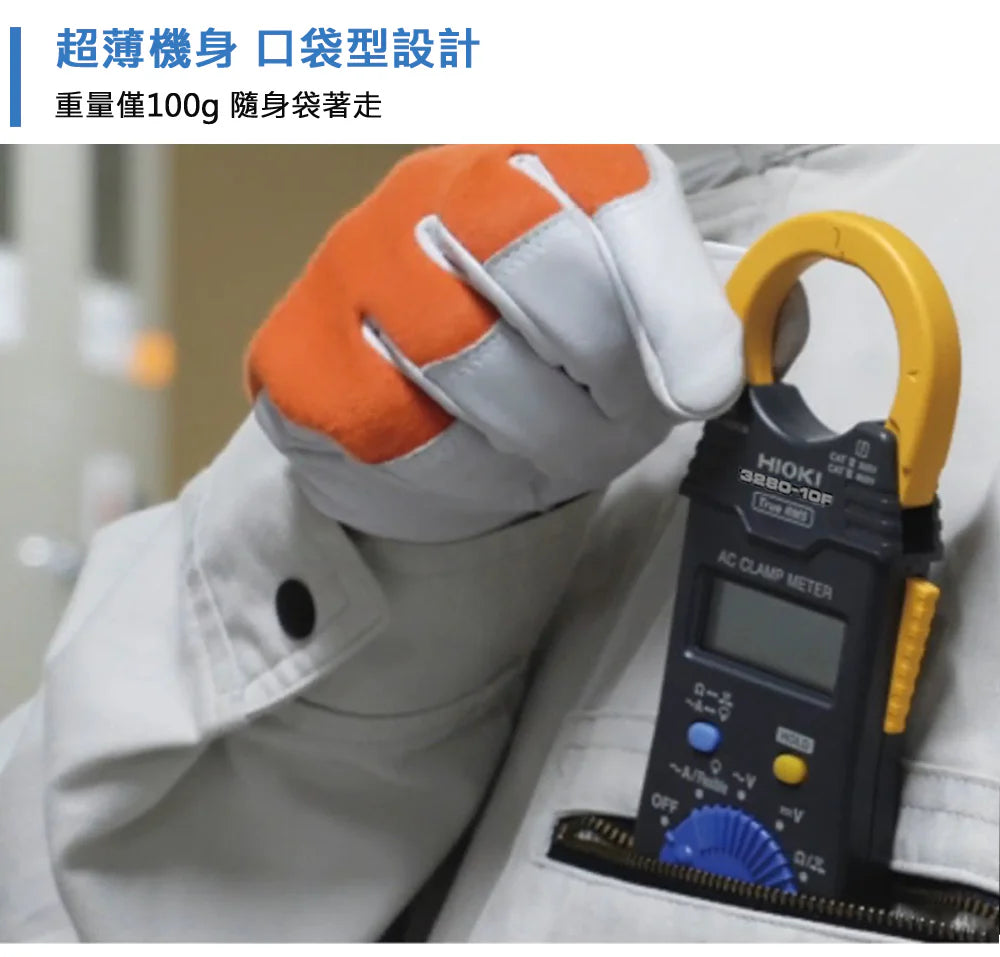

Their compact size, low-profile design, and resistance to both rough handling and extreme temperatures make them essential tools for any electrician.

Key Features

• Measure the fundamental waveform component using the average rectified method

• Expanded -25°C to 65°C operating temperature range

• Connect the CT6280 flexible sensor to measure up to 4199 A in thick or paired wires

• Drop proof design withstands drop from a height of 1 meter

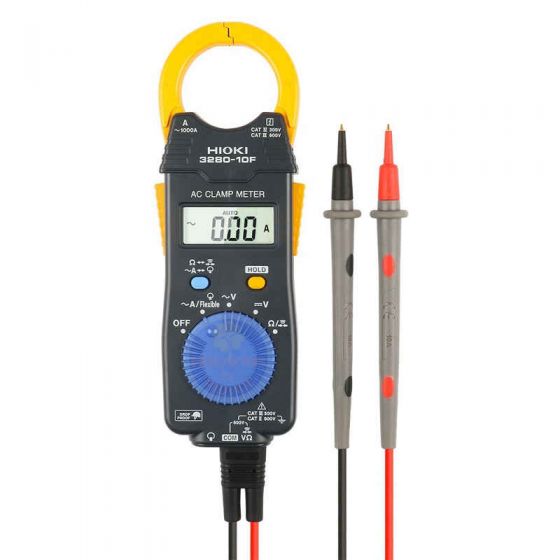

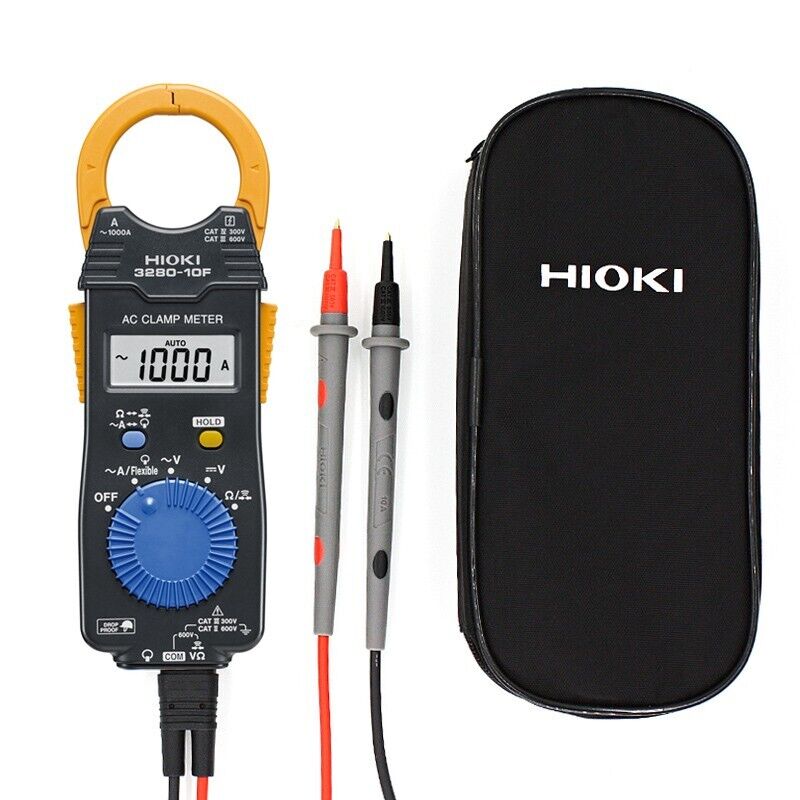

Package Including:

• 1 x HIOKI 3280-10F Clamp Meter
• 1 x Carrying Case 9398
• 1 x Test Lead L9208
• 1 x Coin type lithium battery (CR2032)
• 1 x Instruction manual

Specs
