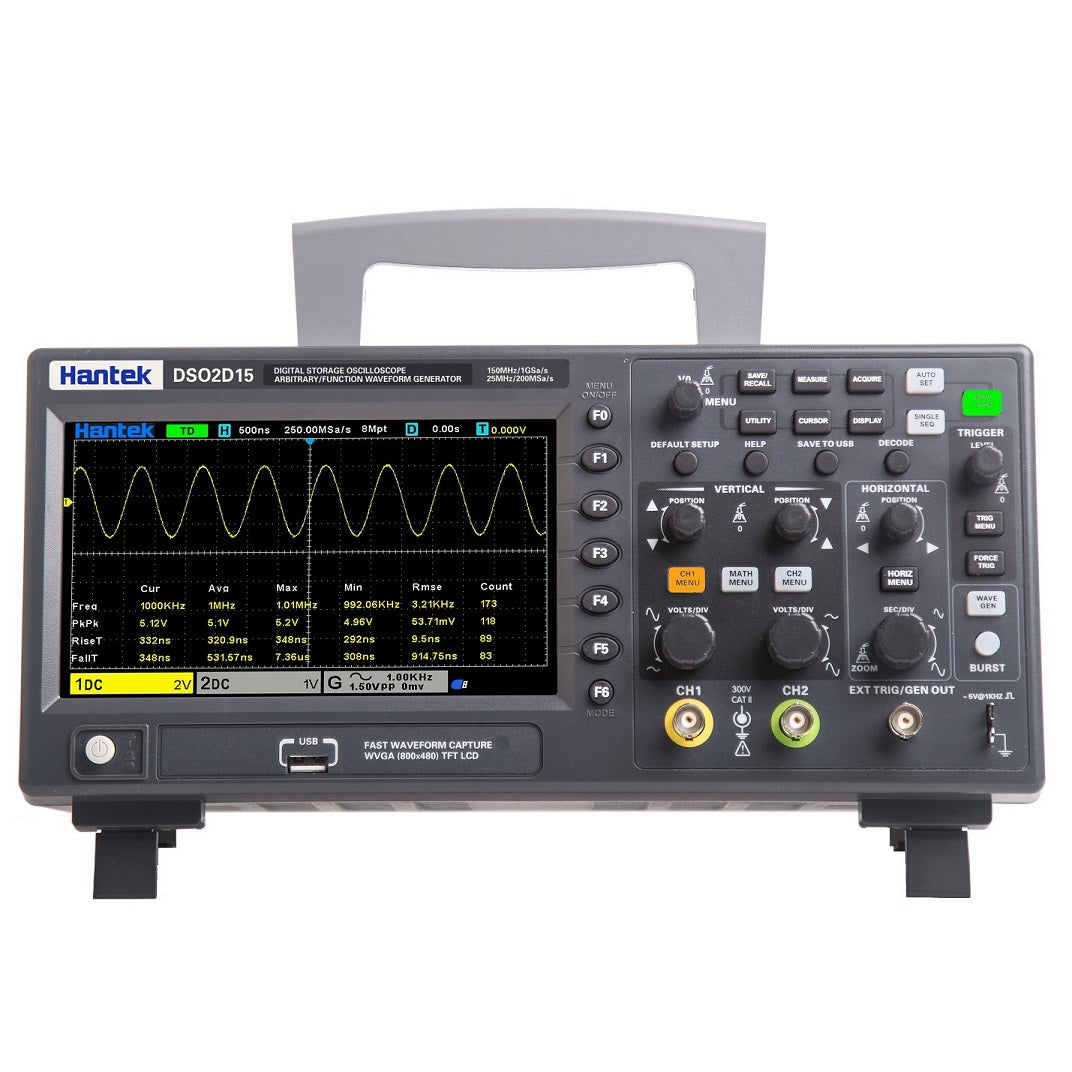

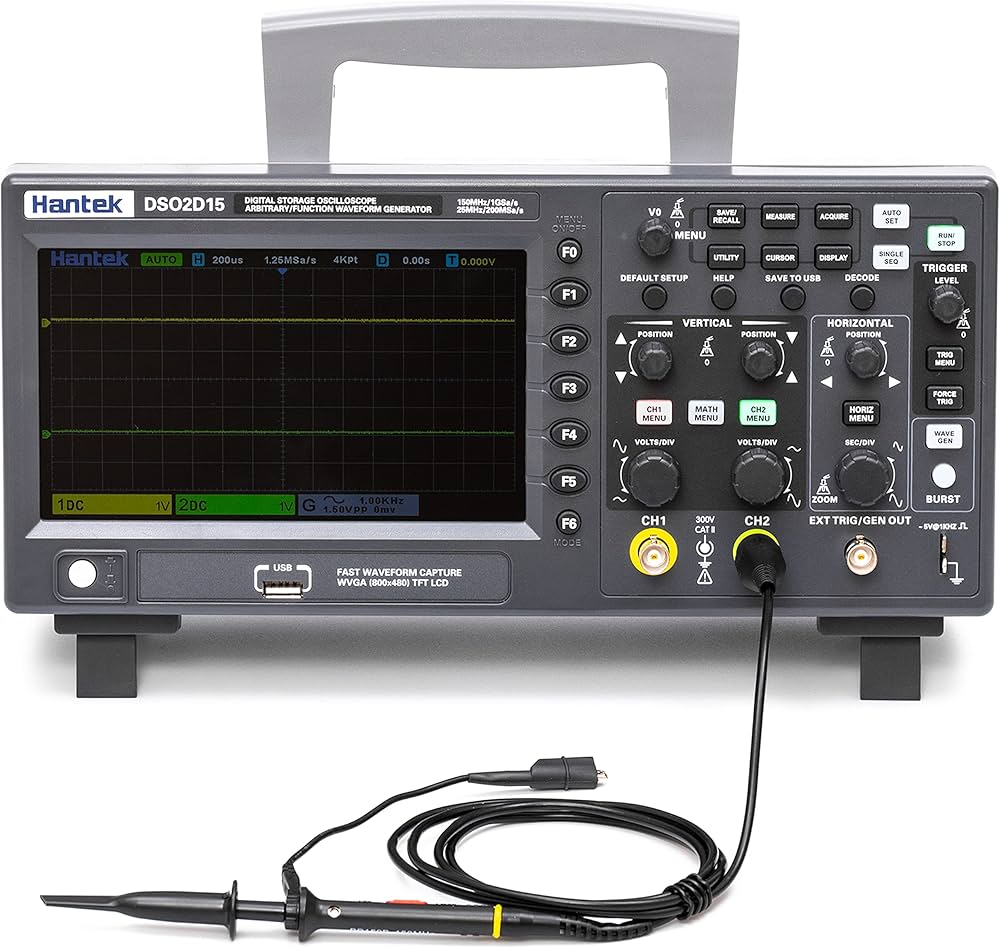

Hantek DSO2D15 Digital Oscilloscope ‚Äì 150MHz Bandwidth, 1GSa/s Sampling Rate

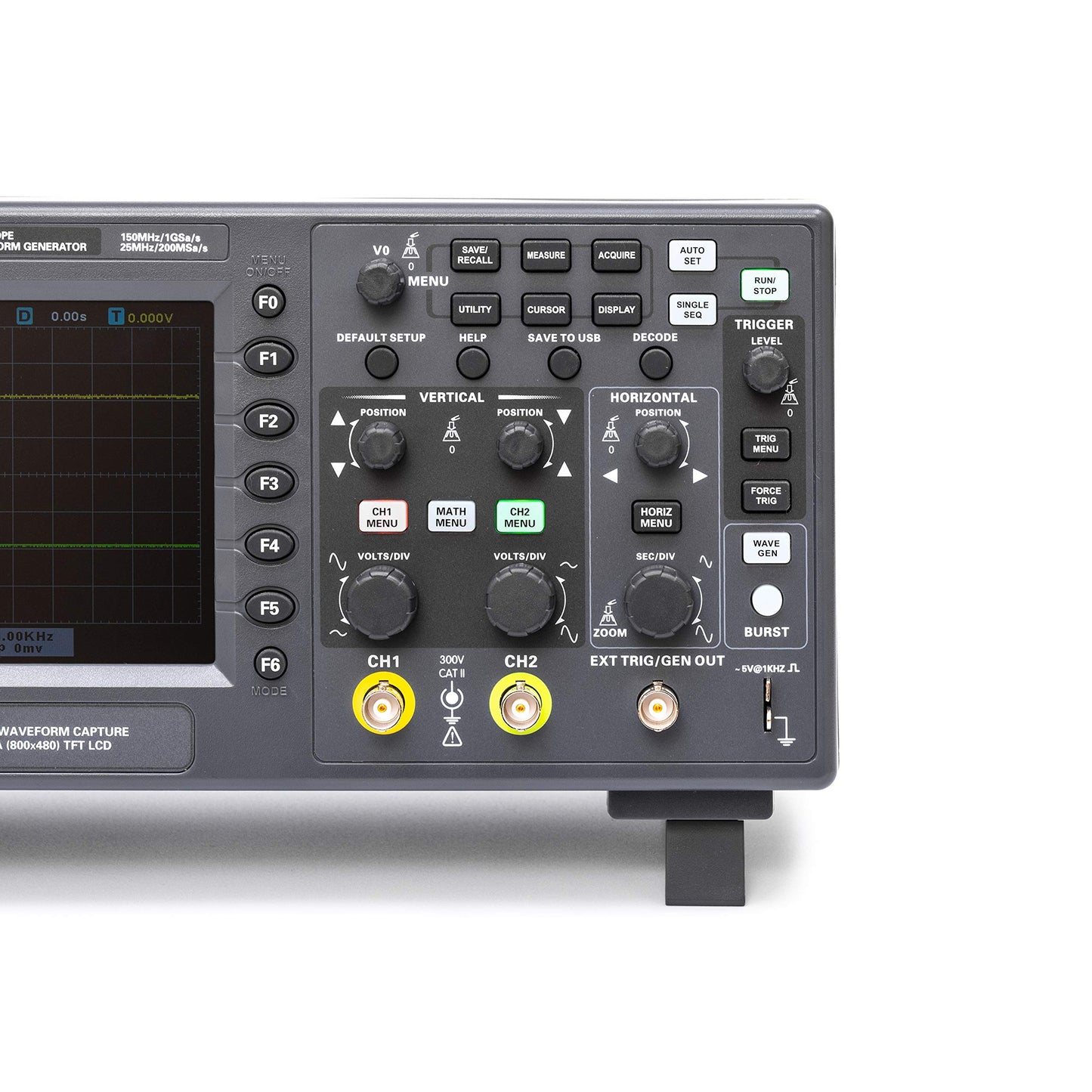

2 Channels respectively controlled by independent knobs for intuitive operation.
150 MHz Analog Channel Bandwidth for capturing high-frequency signals.
High Sampling Rate up to 1 GSa/s (single channel) for accurate signal representation.
8M Memory Depth (single channel) for extended waveform recording.
Vertical Range: 2 mV/div ~ 10 V/div to accommodate a wide variety of signal amplitudes.
Built-in 1 CH 25 MHz Waveform Generator for signal generation and testing.
8-bit Vertical Resolution for detailed waveform display.
Advanced Trigger Functions: Edge, Pulse, Video, Slope, Overtime, Window, Pattern, Interval, Under Amp, UART, LIN, CAN, SPI, IIC.
Bus Decode and Protocol Analysis: RS232/UART, I2C, SPI, CAN, LIN.
Multiple Data Formats Saving: Settings, waveforms, reference waveforms, CSV files, and pictures.
3-digit Digital Voltage Meter and 6-digit Hardware Frequency Indicator for precise measurements.
32 Types of Auto Measurements with real-time statistics of maximum, minimum, standard deviation, etc.
2 Sets of Digital Voltmeters for simultaneous measurements.
Support for Threshold Testing and free measurements within the screen.
Abundant SCPI Remote Command Control for automated testing.
USB Host/Device interface for easy data transfer and connectivity.

Model	DSO2D15	DSO2D10	DSO2C15	DSO2C10
Bandwidth	150 MHz	100 MHz	150 MHz	100 MHz
Oscilloscope Channels	2 CH	2 CH	2 CH	2 CH
Waveform Generator	1 CH	1 CH	-	-

Sampling
Sample Rate	1 GSa/s (single channel), 500 MSa/s (two channels)
Acquisition Modes
Normal	Sample data
Peak-to-peak Value	Display high frequency and random burr
Average	Average waveform; times: 4, 8, 16, 32, 64, 128
High Resolution	Up to 12-bit
Input
Input Coupling	DC, AC, GND
Input Impedance	1 MΩ ±2% ‖ 20 pF ±3 pF
Probe Attenuation Factor	1X, 10X, 100X, 1000X
Voltage Rating	300 V CAT II
Maximum Input Voltage	300 V_RMS (10X)
Horizontal
Waveform Interpolation	(sin x)/x
Maximum Record Length	Single channel: 8M; Two channels: 4M
Horizontal Scale Range	2 ns/div ~ 100 s/div (1, 2, 5 steps)
Time Base Mode	Y-T, X-Y, Roll
Zero Offset	±0.5 div × minimum time base setting
Sample Rate and Delay Time Accuracy	±25 ppm
Vertical
Bandwidth	150 MHz
Rising Time in BNC Position (Typical)	2.4 ns
Vertical Resolution	8 bits resolution, each channel samples simultaneously
Vertical Sensitivity	2 mV/div to 10 V/div
Offset Range	≥200 mV/div: ±1 V <200 mV/div: ±50 V
Mathematical Operations	Addition (+), Subtraction (-), Multiplication (×), Division (÷), FFT
FFT Window	Rectangle, Hanning, Hamming, Blackman, Bartlett, Flattop
Bandwidth Limit	20 MHz
Bass Response (-3 dB)	In BNC position ≤10 Hz
Vertical Gain Accuracy	In "Normal" or "Average" acquisition mode, 10 V/div to 10 mV/div: ±3% In "Normal" or "Average" acquisition mode, 5 mV/div to 2 mV/div: ±4% Note: Bandwidth reduced to 6 MHz when using a 1X probe.

Trigger Types	Edge, Pulse Width, Video, Slope, Overtime, Window, Pattern, Interval, Under Amp, UART, LIN, CAN, SPI, IIC
Trigger Level Range	±5 divisions from the center of the screen
Trigger Modes	Auto, Normal, Single
Trigger Level Accuracy	CH1~CH2: 0.2 div × volts/div within ±4 divisions from the center of the screen EXT (Only with AWG model): ±(Set value × 6% + 40 mV)
Edge Trigger	Slope: Rising edge, Falling edge, Rising or Falling edge Signal Source: CH1, CH2, EXT (Only with AWG model)

Cursor Measurements	Voltage difference between cursors (ΔV) Time difference between cursors (ΔT) Reciprocal of ΔT in Hertz (1/ΔT)
Auto Measurements	32 types including frequency, period, mean, peak-to-peak, RMS, minimum, maximum, rise time, fall time, positive width, negative width, base, top, amplitude, overshoot, preshoot, duty cycle, etc., with real-time statistics of maximum, minimum, standard deviation.
Digital Voltmeter (DVM)	Data Source: CH1, CH2 Measurement Types: DC RMS, AC RMS, DC Includes 2 sets of digital voltmeters
Frequency Meter	Hardware 6-digit frequency indicator

Note: Available on DSO2D15 and DSO2D10 models only.

Channels	1
Sample Rate	200 MSa/s
Vertical Resolution	12 bits
Maximum Frequency	25 MHz
Standard Waveforms	Sine, Square, Ramp, Exponential, Noise, DC
Arbitrary Waveforms	Arb1, Arb2, Arb3, Arb4
Sine Wave Frequency Range	0.1 Hz ~ 25 MHz
Square/Pulse Frequency Range	0.1 Hz ~ 10 MHz
Waveform Length	4 KSa
Amplitude Output Range	10 mV ~ 7 Vpp (high impedance), 5 mV ~ 3.5 Vpp (50 Ω)
DC Offset Range	±3.5 V (high impedance), ±1.75 V (50 Ω)
Output Impedance	50 Ω

Display Type	7" diagonal TFT LCD
Display Resolution	800 (horizontal) × 480 (vertical) pixels
Display Color	16 million colors (24-bit true color)

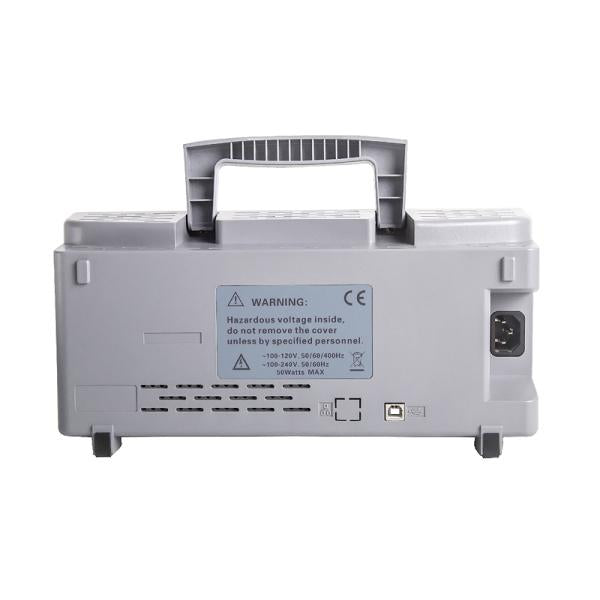

Interface	USB Host, USB Device
Probe Compensator Output	Output Voltage (typical): ~2 Vpp into ≥1 MΩ load Frequency (typical): 1 kHz
Power Supply	100-120 VAC RMS (±10%), 45 Hz to 440 Hz, CAT II 120-240 VAC RMS (±10%), 45 Hz to 66 Hz, CAT II
Power Consumption	<30 W
Fuse	T, 3.15 A, 250 V, 5×20 mm
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-40°C to +71°C (-40°F to 159.8°F)
Humidity	≤+40°C: ≤90% relative humidity +41°C to +50°C: ≤60% relative humidity
Altitude	Operating and Non-operating: up to 3,000 meters (10,000 feet)
Mechanical Shock	Random Vibration: 0.31 g RMS from 50 Hz to 500 Hz, 10 minutes on each axis Non-operating: 2.46 g RMS from 5 Hz to 500 Hz, 10 minutes on each axis Operating: 50 g, 11 ms, half-sine wave
Dimensions (L × W × H)	318 mm × 110 mm × 150 mm
Weight	1.9 kg
