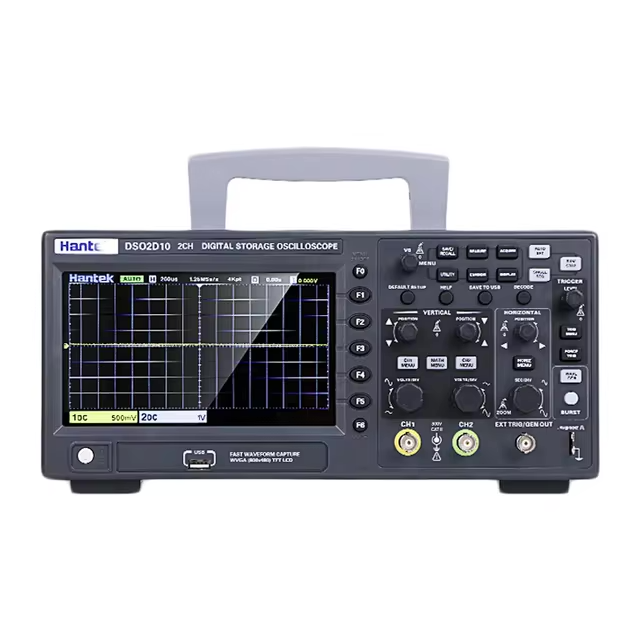

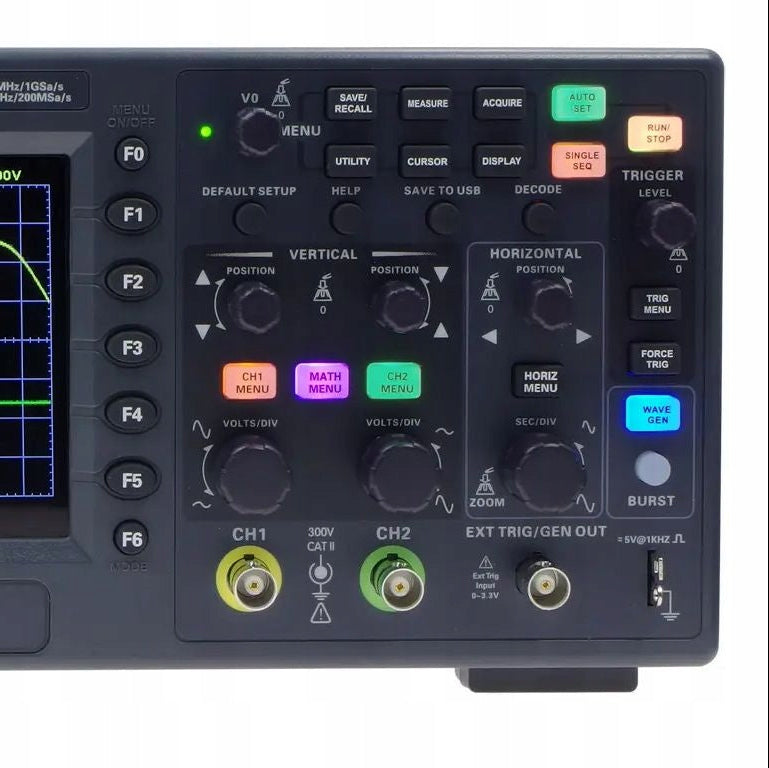

Hantek DSO2D10 2CH 150MHz 1GSa/s, 8M memory Oscilloscope

Cost-effective economy oscilloscope, 150MHz Bandwidth, 1GSa/s, 8M memory depth; with 1CH 25MHz waveform generator, support arbitrary waveform output; 14 kinds of trigger modes, standard with 5 kinds of serial protocol triggers and decodes; 32 kinds of auto measurements with statistics; 3-digit digital voltage meter and 6-digit hardware frequency indicator functions; 2 sets of DVM; Abundant SCPI remote command control. It is a useful commissioning instrument for various fields such as communication, aerospace, embedded systems, computers, research and education.

Specs

Specification	DSO2D10
Model	DSO2D10
Bandwidth	100 MHz
Oscilloscope Channels	2 CH
Waveform Generator	1 CH

Oscilloscope

Sample Rate
Max Rate	1 GSa/s (single channel), 500 MSa/s (two channels)

Acquisition

Mode	Details
Normal	Sample data
Peak-to-peak value	Displays high-frequency and random burr
Average	4, 8, 16, 32, 64, 128 times
High resolution	Up to 12-bit

Input

Parameter	Value
Input coupling	DC, AC, GND
Input impedance	1 MΩ ±2% ‖ 20 pF ±3 pF
Probe attenuation factor	1X, 10X, 100X, 1000X
Voltage rating	300 V CAT II
Maximum input voltage	300 V RMS (10X)

Horizontal

Parameter	Value
Waveform interpolation	(sin x)/x
Maximum record length	8M (single channel), 4M (two channels)
Horizontal scale range	2 ns/div to 100 s/div (1, 2, 5 steps)
Time base mode	Y-T, X-Y, Roll
Zero offset	±0.5 div × minimum time base gear
Sample Rate & Delay Time Accuracy	±25 ppm
Delta Time Measurement Accuracy	Single-shot, Normal mode: ±(1 sample interval + 100 ppm×reading + 0.6 ns) >16 averages: ±(1 sample interval + 100 ppm×reading + 0.4 ns) Sample interval = sec/div ÷ 200
Sample Rate & Delay Time Accuracy (long interval)	±50 ppm (interval > 1 ms)

Vertical

Parameter	Value
Model	DSO2D10
Bandwidth	100 MHz
Rising time (typical)	3.5 ns
Vertical resolution	8 bits (each channel samples simultaneously)
Vertical sensitivity	2 mV/div to 10 V/div
Offset range	≥200 mV/div: ±1 V; <200 mV/div: ±50 V
Math operations	+, -, ×, ÷, FFT
FFT	Windows: Rectangle, Hanning, Hamming, Blackman, Bartlett, Flattop
Bandwidth limit	20 MHz
Bass response (-3 dB)	≤10 Hz (BNC position)
Vertical gain accuracy	10V/div to 10mV/div: ±3% 5mV/div to 2mV/div: ±4%
Note	Bandwidth is reduced to 6 MHz when using a 1X probe

Trigger

Parameter	Value
Trigger type	Edge, Pulse width, Video, Slope, Overtime, Window, Pattern, Interval, Under Amp, UART, LIN, CAN, SPI, IIC
Trigger level range	±5 divisions from center
Trigger mode	Auto, Normal, Single
Trigger level accuracy	CH1/CH2: ±(0.2 div×volts/div) within ±4 divisions EXT (AWG models only): ±(Set value×6% + 40 mV)
Common trigger sources	CH1, CH2, EXT (AWG models)
Serial Trigger (UART, LIN, CAN, SPI, IIC)	Various conditions (start bit, stop bit, data, etc.) with user-definable baud rates

Measurement

Cursor
Types	ΔV (voltage difference), ΔT (time difference), 1/ΔT (frequency)
Auto Measurement
Parameters	Frequency, Period, Mean, Peak-to-peak, RMS, Min, Max, Rise time, Fall time, +Width, -Width, Base, Top, Middle, Amplitude, Overshoot, Preshoot, Phase difference, +Duty, -Duty, etc.
DVM
Data source	CH1, CH2
Measurement types	DC RMS, AC RMS, DC Hardware 6-bit frequency meter

Arbitrary Waveform Generator

Channel	1
Sample rate	200 MSa/s
Vertical resolution	12 bits
Maximum frequency	25 MHz
Standard waveforms	Sine, Square, Ramp, Exp, Noise, DC
Arbitrary waveforms	Arb1, Arb2, Arb3, Arb4
Waveform length	4KSa
Frequency accuracy	100 ppm (<10 kHz), 50 ppm (>10 kHz)
Amplitude (high impedance)	10 mV~7 V p-p
Amplitude (50 Ω)	5 mV~3.5 V p-p
DC offset range	±3.5 V (high-Z), ±1.75 V (50 Ω)
Output impedance	50 Ω

General Specifications

Display
Type	7" TFT LCD (800×480), 16 million colors
Persistence time	Minimum, 1 s, 5 s, 10 s, 30 s, Infinite
Display mode	Dot or Vector
Interface
Standard ports	USB Host, USB Device
Power / Environmental
Power supply	100-120 VAC ±10%, 45 Hz – 440 Hz, CAT II 120-240 VAC ±10%, 45 Hz – 66 Hz, CAT II
Power consumption	<30 W
Operating temperature	0~50 °C (32~122 °F)
Storage temperature	-40~71 °C (-40~159.8 °F)
Humidity	≤90% at ≤40 °C, ≤60% at 41~50 °C
Altitude	Up to 3000 m (10,000 ft)
Mechanical
Dimensions (L×W×H)	318 × 110 × 150 mm
Weight	1900 g
