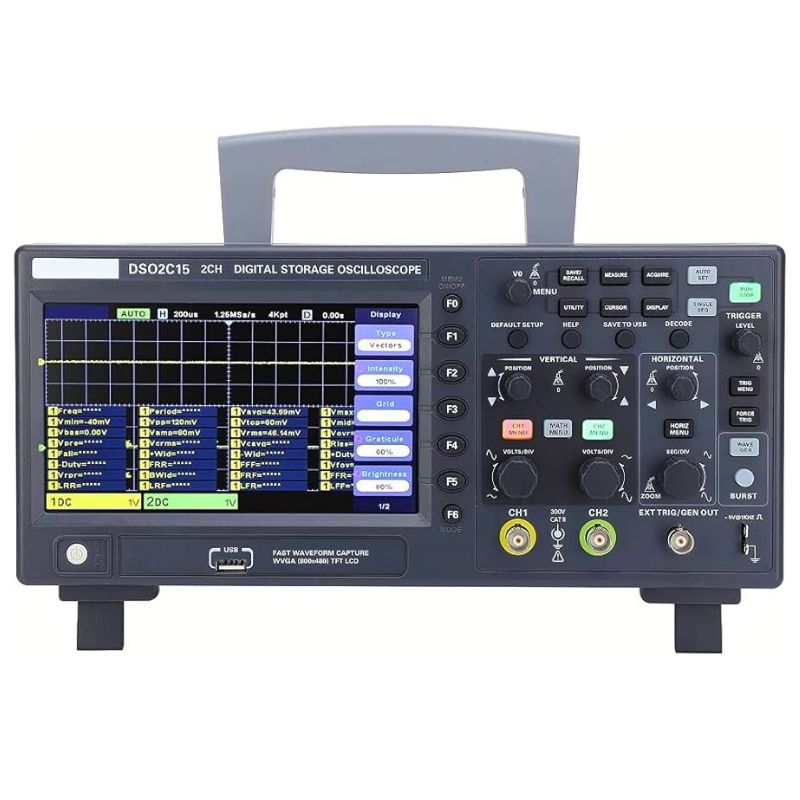

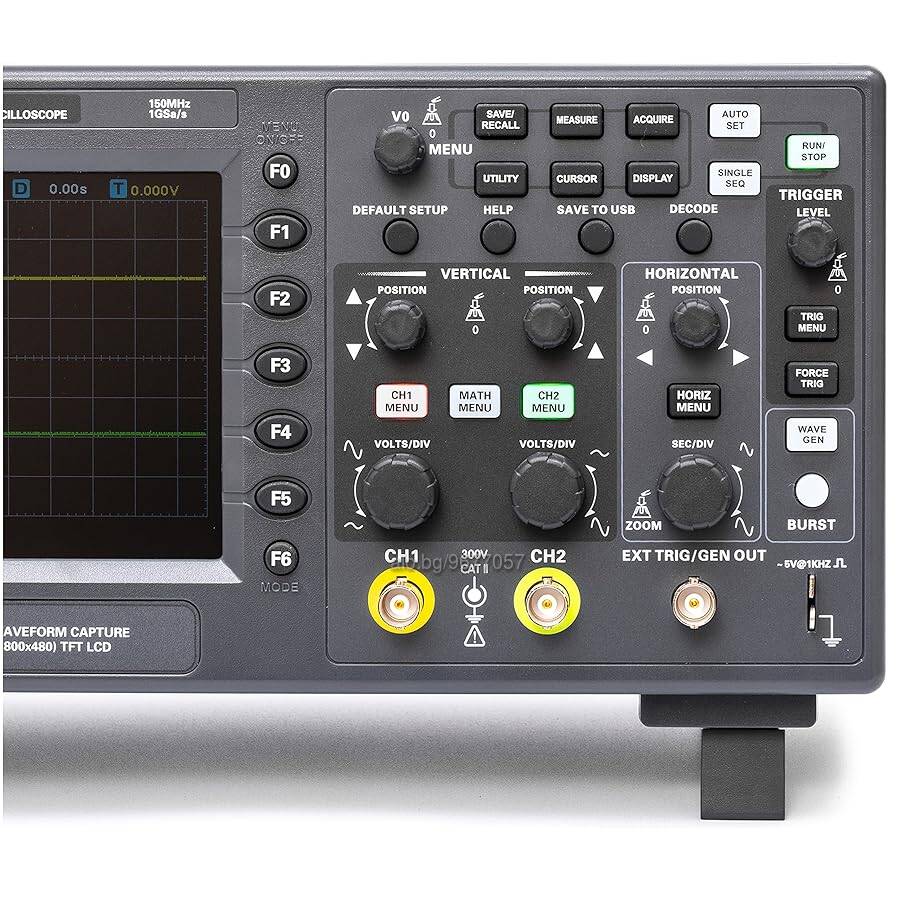

Hantek DSO2C15 Digital Storage Oscilloscope

Cost-effective economy oscilloscope, 150MHz Bandwidth, 1GSa/s, 8M memory depth; with 1CH 25MHz waveform generator, support arbitrary waveform output; 14 kinds of trigger modes, standard with 5 kinds of serial protocol triggers and decodes; 32 kinds of auto measurements with statistics; 3-digit digital voltage meter and 6-digit hardware frequency indicator functions; 2 sets of DVM; Abundant SCPI remote command control. It is a useful commissioning instrument for various fields such as communication, aerospace, embedded systems, computers, research and education.

Feature:

1) 2 channels which are respectively controlled by independent knobs
2) 100 MHZ and 150MHZ analog channel bandwidth
3) Sampling rate up to 1 GSa/s
4) 8M memory depth
5) Vertical range 2mV/div ~ 10V/div
6) Built-in 1 CH 25MHz waveform generator (DSO2D10, DSO2D15)
7) Vertical resolution: 8bit
8) Trigger: Edge, Pulse, Video, Slope, Overtime, Window, Pattern, Interval, Under Amp, UART, LIN, CAN, SPI, IIC
9) BUS decode and protocol analysis: RS232/UART, I2C, SPI, CAN, LIN
10) Can save multiple data formats, such as settings, waveforms, reference waveforms, CSV, pictures
11) A 3-digit digital voltage meter and a 6-digit hardware frequency indicator
12) 32 kinds of auto measurements with statistics, real-time statistics of maximum, minimum, standard deviation and etc.
13) 2 sets of digital voltmeters
14) Support threshold testing, free measurements within the screen
15) Abundant SCPI remote command control
16) USB Host/Device.

Package Including:

1*oscilloscope host
2*probe（1X and 10X）
1*Charger
1*User manual

Details

1CH 25MHz waveform generator, support arbitrary waveform burst output, support modulation waveform output

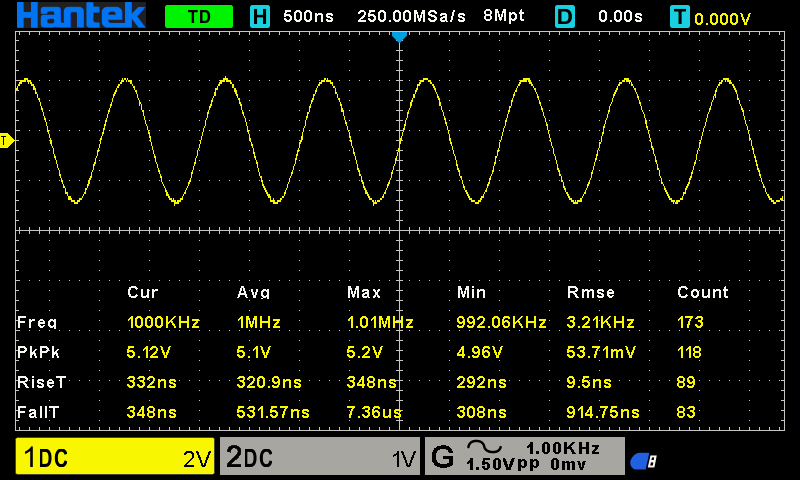

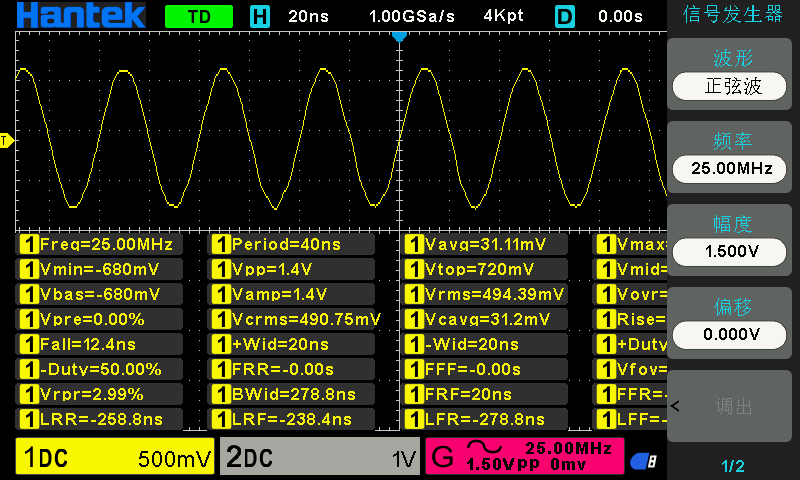

32 kinds of auto measurements with statistics

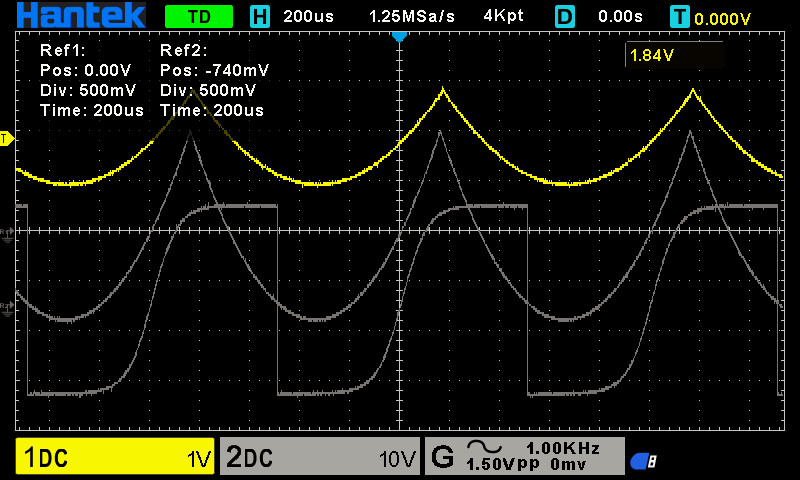

Can save 10 sets of reference waveforms, CSV waveforms and settings. The USB one-click screenshot function.

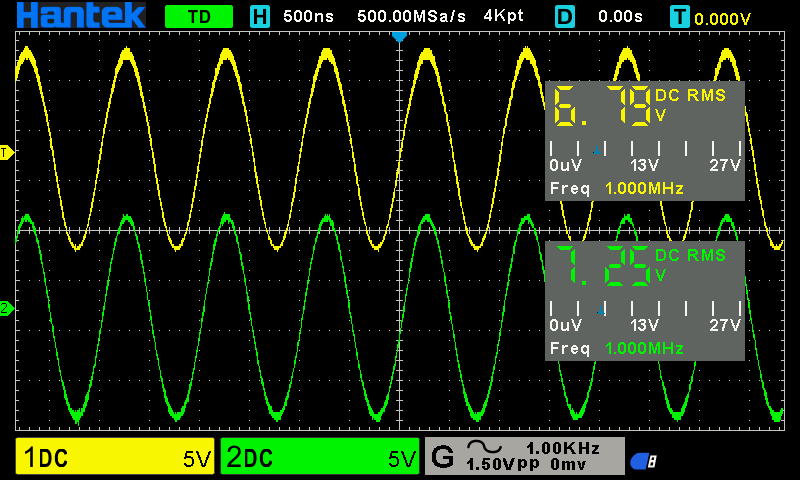

2 sets of DVM, 3-digit digital voltage meter and 6-digit hardware frequency indicator functions

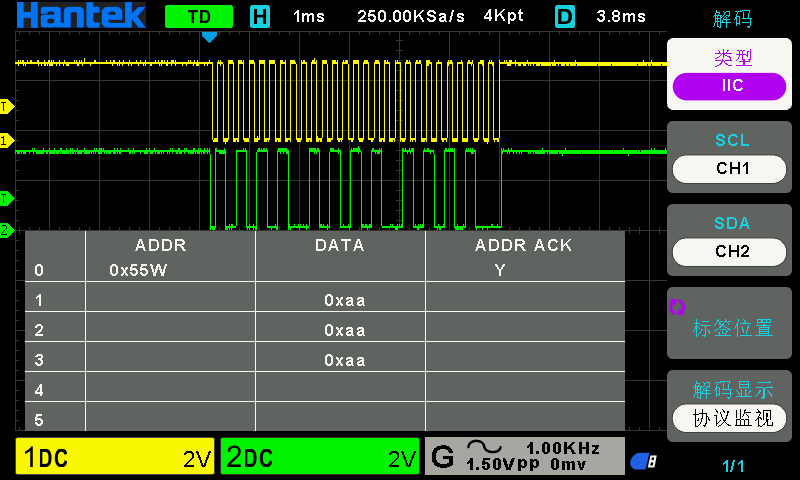

Serial bus trigger and decode, with the protocol monitoring function

8M memory depth, reducing waveform distortion and restore real waveforms

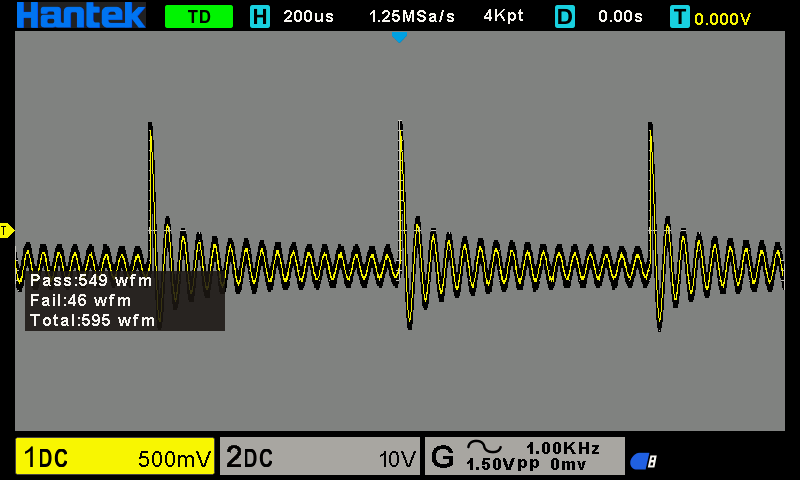

PASS/FAIL

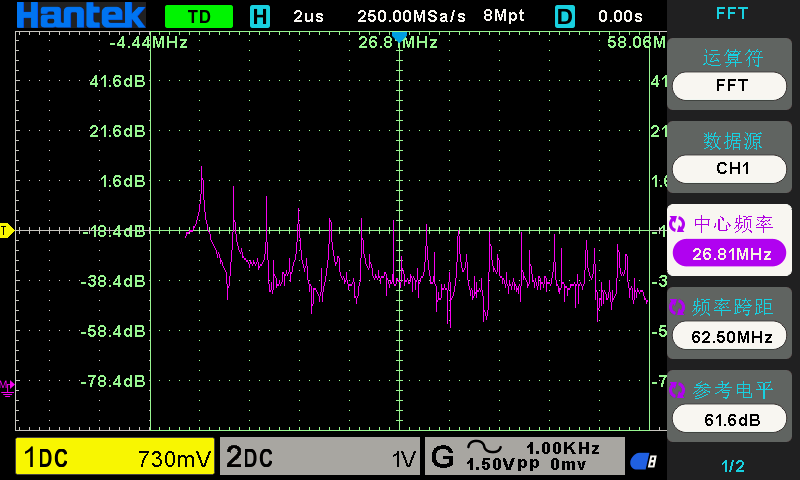

Mathematical operation and FFT

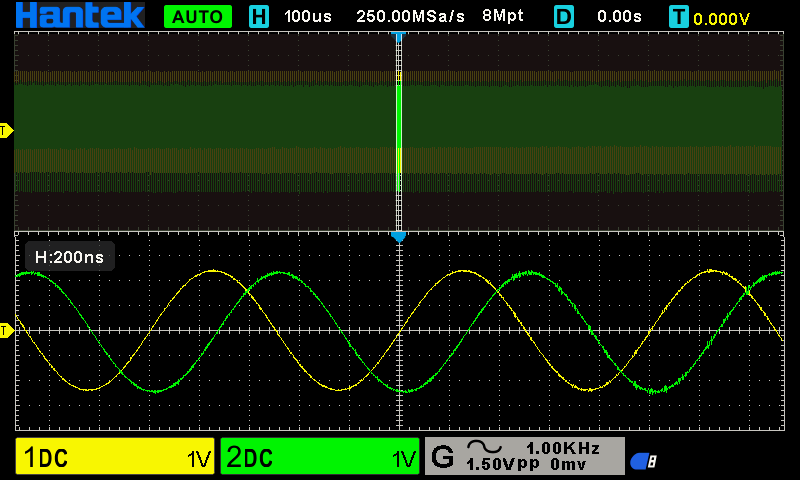

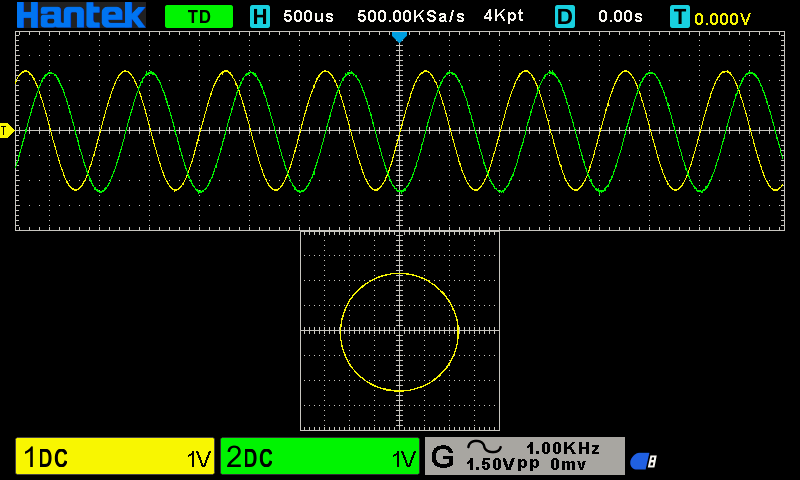

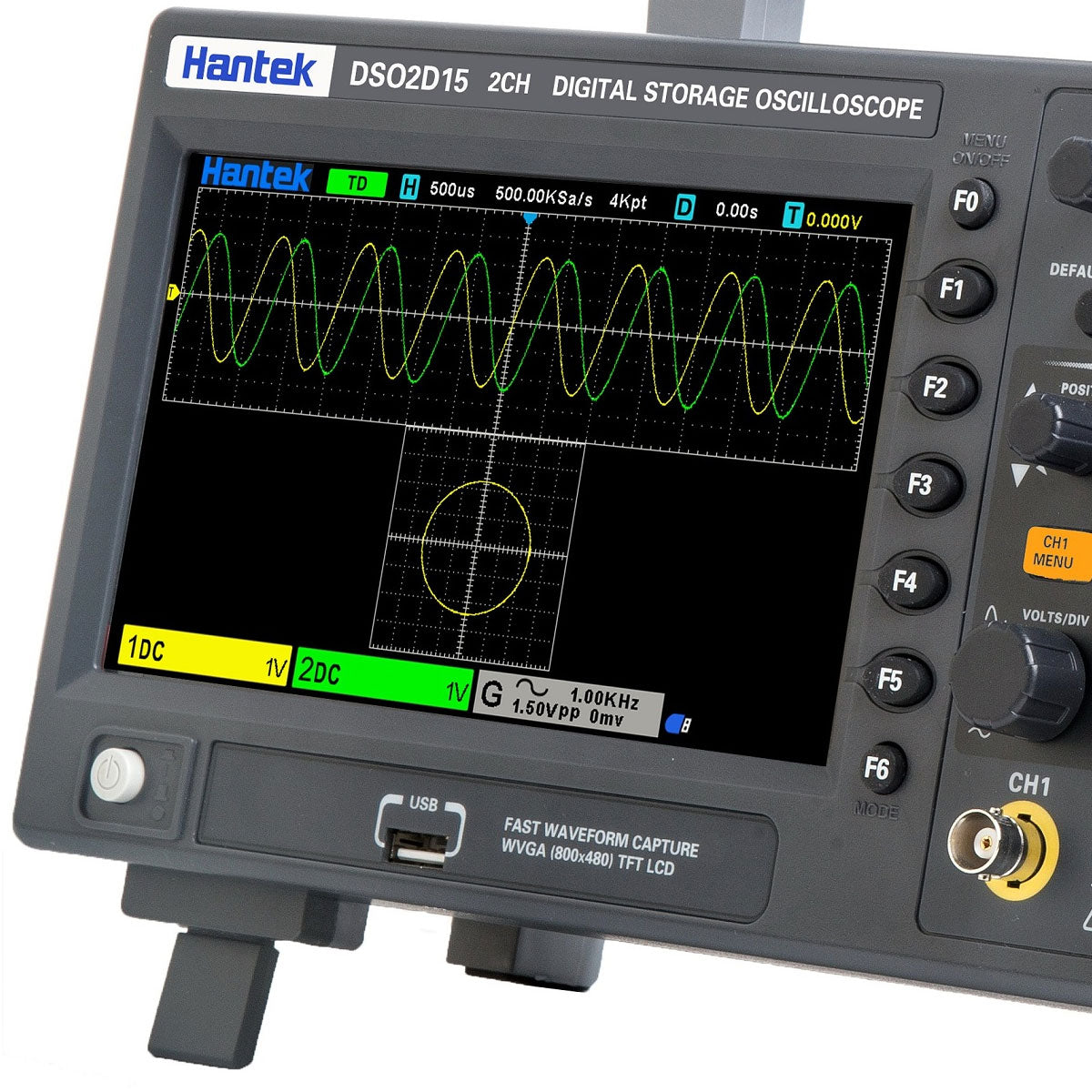

X-Y format and display in dual windows

Specs

Model	DSO2D15	DSO2D10	DSO2C15	DSO2C10
Bandwidth	150MHz	100MHz	150MHz	100MHz
Oscilloscope channels	2CH	2CH	2CH	2CH
Waveform generator	1CH	1CH	-	-
Oscilloscope
Sample rate	1GSa/s (single channel) 500MSa/s (two channels)
Acquisition
Normal	Sample data
Peak-to-peak value	Display high frequency and random burr
Average	Average waveform, times: 4, 8, 16, 32, 64, 128
High resolution	Up to 12bit
Input
Input coupling	DC, AC, GND
Input impedance	1MΩ±2% ‖20pF±3pF
Probe attenuation factor	1X, 10X, 100X, 1000X
Voltage rating	300V CAT II
Maximum input voltage	300VRMS (10X)
Horizontal
Waveform interpolation	(sin x)/x
Maximum record length	Single channel maximum 8M
	Two channels maximum 4M
Horizontal scale range	2ns/div~100s/div (1, 2, 5 steps)
Time base mode	Y-T, X-Y, Roll
Zero offset	±0.5 div × minimum time base gear
Sample Rate and Delay Time Accuracy	±25ppm
Delta Time Measurement Accuracy (Full Bandwidth) Sample Rate and Delay Time Accuracy	single-shot, Normal mode ±(1 sample interval + 100ppm×reading + 0.6ns)

	>16 times averages ±(1 sample interval + 100ppm×reading + 0.4ns)

	Sample interval = sec/div ÷ 200
Sample Rate and Delay Time Accuracy	±50ppm (at intervals > 1ms)
Vertical
Model	DSO2D15	DSO2D10	DSO2C15	DSO2C10
Bandwidth	150MHz	100MHz	150MHz	100MHz
Rising time in BNC position (typical)	2.4ns	3.5ns	2.4ns	3.5ns
Vertical resolution	8 bits resolution, each channel samples simultaneously
Vertical sensitivity	2mV/div to 10V/div
Offset range	≥200mV/div, ±1V
	<200mV/div ±50V
Mathematical operation	+, -, ×, ÷, FFT
FFT	Window: Rectangle, Hanning, Hamming, Blackman, Bartlett, Flattop
Bandwidth Limit	20MHz
Bass response (-3db)	In BNC position ≤ 10Hz
Vertical gain accuracy	In normal or average acquisition mode, accuracy of 10V/div to 10mV/div is ±3%;
	In normal or average acquisition mode, accuracy of 5mV/div to 2mV/div is ±4%
Note: Bandwidth reduced to 6MHz when using a 1X probe
Trigger
Trigger type	Edge, Pulse width, Video, Slope, Overtime, Window, Pattern, Interval, Under Amp, UART, LIN, CAN, SPI, IIC
Trigger level range	±5 divisions from the center of the screen
Trigger mode	Auto, Normal, single
Level	CH1~CH2	±4 divisions from the center of the screen
	EXT (Only With AWG Model)	0~3.3V
Holdoff range	8ns~10s
Trigger level accuracy	CH1~CH2	0.2 div×volts/div within ±4 divisions from center
	EXT (Only With AWG Model)	±(Set value×6% + 40mV)
Edge trigger	Slope	Rising edge, falling edge, rising or falling edge
	Signal source	CH1, CH2, EXT (Only With AWG Model)
Pulse width trigger	Polarity	Positive polarity, negative polarity
	Condition(When)	<, >, !=, =
	Signal source	CH1~CH2
	Pulse width range	8ns ~ 10s
	Accuracy	8ns
Video trigger	Signal standard	NTSC, PAL
	Signal source	CH1~CH2
	Synchronization	Scanning line, line number, odd field, even field, all field
Slope trigger	Slope	rising, falling
	Condition(When)	<, >, !=, =
	Signal source	CH1~CH2
	Time range	8ns ~ 10s
	Accuracy	8ns
Overtime trigger	Signal source	CH1~CH2
	Polarity	Positive polarity, negative polarity
	Time range	8ns ~ 10s
	Accuracy	8ns
Window trigger	Signal source	CH1~CH2
Pattern trigger	Pattern	0: low level; 1: high level; X: ignore
	Level (signal source)	CH1~CH2
Interval trigger	Slope	rising, falling
	Condition(When)	<, >, !=, =
	Signal source	CH1~CH2
	Time range	8ns ~ 10s
	Accuracy	8ns
Under Amp trigger	Polarity	Positive polarity, negative polarity
	Condition(When)	<, >, !=, =
	Signal source	CH1~CH2
	Time range	8ns ~ 10s
	Accuracy	8ns
UART trigger	Condition(When)	Start, Stop, data, Parity ERR, COM ERR
	Signal source(RX/TX)	CH1~CH2
	Data format	Hex (hexadecimal)
	Data length	1 byte
	Data bit width	5 bit, 6 bit, 7 bit, 8 bit
	Odd-even check	none, odd, even
	Idle level	high, low
	Baud rate (optional)	110/300/600/1200/2400/4800/9600/14400/19200/38400/57600/ 115200/230400/380400/460400 bit/s
	Baud rate(user-defined)	300bit/s~334000bit/s
LIN trigger	Condition(When)	Interval field, synchronization field, ID field, synchronization error, identifier, ID and data
	Signal source	CH1~CH2
	Data format	Hex (hexadecimal)
	Baud rate (optional)	110/300/600/1200/2400/4800/9600/14400/19200/38400/57600/ 115200/230400/380400/460400 bit/s
	Baud rate (user-defined)	300bit/s~334000bit/s
CAN trigger	Condition(When)	Start bit, remote frame ID, data frame ID, frame ID, data frame data, error frame, all errors, ACK Error, overload frame
	Signal source	CH1~CH2
	Data format	Hex (hexadecimal)
	Baud rate (optional)	10000, 20000, 33300, 500000, 62500, 83300, 100000, 125000, 250000, 500000, 800000, 1000000
	Baud rate (user-defined)	5kbit/s~1Mbit/s
SPI trigger	Signal source	CH1~CH2
	Data format	Hex (hexadecimal)
	Data bit width	4, 8, 16, 24, 32
IIC trigger	Signal source (SDA/SCL)	CH1~CH2
	Data format	Hex (hexadecimal)
	Data index	0~7
	When(condition)	Start bit, stop bit, No Ack, address, restart, address and data
Measurement
Cursor	Voltage difference between cursors (ΔV)
	Time difference between cursors (ΔT)
	Reciprocal of ΔT, in Hertz (1/ΔT)
Auto measurement	frequency, period, mean, peak-to-peak, RMS, minimum, mixmum, rising time, falling time, + width, - width, base, top, middle, amplitude, overshoot, preshoot, rising edge phase difference, falling edge phase difference, + duty, - duty, period mean, PRMS, FOVshoot, ROVshoot, BWIDTH, FRF, FFR, LRR, LRF, LFR, LFF

DVM	Data source	CH1, CH2
	Measurement type	DC RMS
		AC RMS
		DC
	Frequency meter	hardware 6 bits frequency meter
Arbitrary waveform generator
Channel	1
Sample rate	200MSa/s
Vertical resolution	12 bits
Maximum frequency	25 MHz
Standard waveforms	sine, square, ramp, Exp, noise, DC

Arbitrary waveform	Arb1, Arb2, Arb3, Arb4
Sin	Frequency range	0.1Hz~25MHz
Square/pulse	Frequency range	0.1Hz~10MHz
Triangular wave	Frequency range	0.1Hz~1MHz
Sampling wave	Frequency range	0.1Hz~1MHz
Index	Frequency range	0.1Hz~5MHz
Noise
Arb1	Frequency range	0.1Hz ~ 10MHz
Arb2	Frequency range	0.1Hz ~ 10MHz
Arb3	Frequency range	0.1Hz ~ 10MHz
Arb4	Frequency range	0.1Hz ~ 10MHz
Waveform length	4KSa
Frequency	Accuracy	100 ppm (<10 kHz), 50 ppm (>10 kHz)
	Resolution	0.1 Hz or 4 bits, whichever is larger
Amplitude	Output range	10mV~7Vp-p (high impedance)
		5mV~3.5Vp-p (50Ω)
DC offset	Range	±3.5V (high impedance)
		±1.75V (50Ω)
	Resolution	100μV or 3 bits, whichever is larger
	Accuracy	2% (1 kHz)
Output impedance	50Ω
General specifications
Display	Display type	7" diagonal TFT liquid crystal
	Display resolution	800×480 pixels
	Display colour	16 million colours (24-bit true colour)
	Persistence time	minimum, 1s, 5s, 10s, 30s, infinite
	Display type	dot, vector
	Display brightness	adjustable
	Grid type	adjustable
	Grid brightness	adjustable
Interface	Standard interface	USB Host, USB Device
General specifications	Probe compensator output
	Output voltage, typical	~2Vpp into ≥1MΩ load
	Frequency, typical	1kHz
	Power supply	100-120VAC(±10%), 45Hz to 440Hz, CATⅡ
		120-240VAC(±10%), 45Hz to 66Hz, CATⅡ
	Power consumption	<30W
	Fuse	T, 3.15A, 250V, 5×20mm
	Operating temperature	0~50°C (32~122°F)
	Storage temperature	-40~+71°C (-40~159.8°F)
	Humidity	≤+40°C: ≤90% RH
		41°C~50°C: ≤60% RH
	Altitude	Operating & nonoperating	3,000m (10,000 ft)
	Mechanical shock	Random vibration	0.31g RMS, 50~500Hz
			10 minutes on each axis
		Nonoperating	2.46g RMS, 5~500Hz
			10 minutes on each axis
		Operating	50g, 11ms, half-sine wave
	Mechanical	Size	318×110×150mm (L×W×H)
		Weight	1900g
