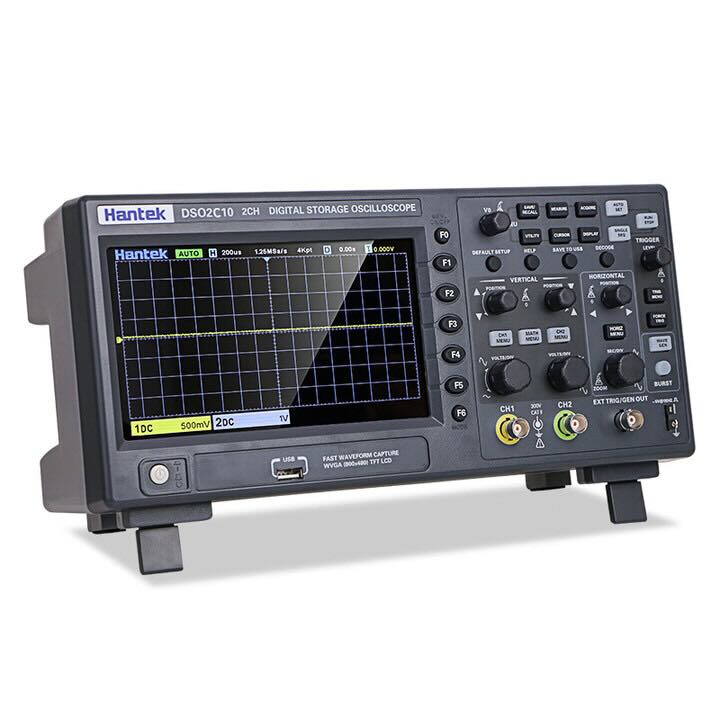

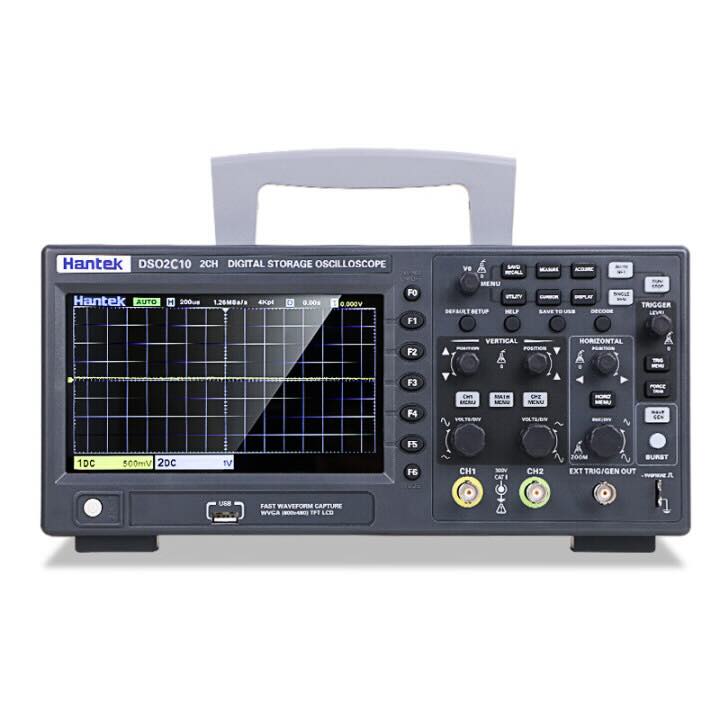

Hantek DSO2C10 Digital Storage Oscilloscope 100MHz 2CH 1GSa/s
Hantek DSO2C10 Digital Storage Oscilloscope 100MHz 2CH 1GSa/s
Regular price
$174.98 USD
Regular price
Sale price
$174.98 USD
Unit price
/
per
Free Shipping
No Extra Costs
Local Warehouse
Shipping from US
Easy Returns
No Return Cost
Couldn't load pickup availability
The Hantek DSO2C10 is a 2-channel digital storage oscilloscope built for bench testing, embedded development, electronics repair, and technical training. It combines 100MHz bandwidth, up to 1GSa/s single-channel sampling, deep memory, serial bus trigger and decode, USB connectivity, and SCPI remote control in a practical entry-level benchtop platform for everyday measurement work.
Key features
- 100MHz bandwidth with 2 analog channels
- Up to 1GSa/s sample rate on a single channel and 500MSa/s on dual channels
- 8M maximum memory depth on a single channel and 4M on dual channels
- 8-bit vertical resolution with 2mV/div to 10V/div vertical sensitivity
- 32 automatic measurements with statistics
- Math functions and FFT analysis
- 14 trigger modes including UART, LIN, CAN, SPI, and IIC decoding support
- 3-digit digital voltage meter and 6-digit hardware frequency counter functions
- USB host/device support for screenshots, waveform storage, and PC workflow
- SCPI remote command support for lab integration and automated control
Specifications
Oscilloscope Performance
| Item | Specification |
|---|---|
| Model | DSO2C10 |
| Oscilloscope Channels | 2CH |
| Bandwidth | 100MHz |
| Sample Rate | 1GSa/s single channel, 500MSa/s dual channel |
| Record Length | 8M single channel, 4M dual channel |
| Vertical Resolution | 8-bit |
| Vertical Sensitivity | 2mV/div to 10V/div |
| Input Coupling | DC, AC, GND |
| Input Impedance | 1MOhm +/-2% parallel with 13pF +/-3pF |
| Maximum Input Voltage | 300VRMS with 10X probe |
| Rise Time | 3.5ns typical |
Trigger and Analysis
| Item | Specification |
|---|---|
| Trigger Types | Edge, Pulse Width, Video, Slope, Overtime, Window, Pattern, Interval, Under Amp, UART, LIN, CAN, SPI, IIC |
| Automatic Measurements | 32 types with statistical analysis |
| Math Functions | Plus, minus, multiply, divide, FFT |
| Bandwidth Limit | 20MHz |
Connectivity and Workflow
| Item | Specification |
|---|---|
| USB | USB Host / Device |
| Storage Functions | Settings, waveforms, reference waveforms, CSV, pictures |
| Remote Control | SCPI command support |
| Built-in Measurement Tools | 3-digit DVM and 6-digit hardware frequency counter |
