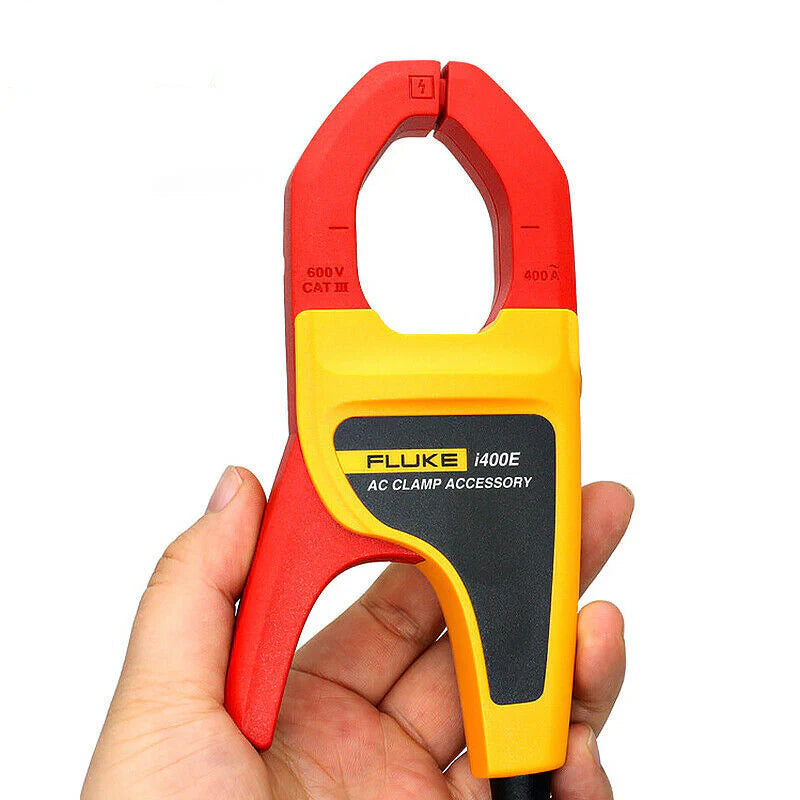

Fluke i400E AC Current Clamp
Fluke i400E AC Current Clamp
Regular price
$49.89 USD
Regular price
$59.99 USD
Sale price
$49.89 USD
Unit price
/
per
Free Shipping
No Extra Costs
Local Warehouse
Shipping from US
Easy Returns
No Return Cost
Couldn't load pickup availability
The Fluke i400E AC Current Clamp is an ideal tool to extend current measurement. It is designed to work with the new Fluke 101, 106 and 107 palm sized digital multimeters, as well as most Fluke multimeters or other voltage measurement tools that accepts 19.05 mm shrouded banana plugs and has mV ac measurement functionality.
Features
- Compatible with most Fluke multimeters or mV ac measurement tools with these features:
- 400 mV ac range
- 19.05 mm banana jack inputs
- Input accuracy of 2 % or greater to take full advantage of the accuracy of the product
- Input impedance of >1 M?
- 1 mV/A ac output guarantees easy current readings on you meter
- CAT III 600 V safety rating
- Specially designed to offer maximum utility in a very compact shape
- Take accurate current readings
Package Including:
- AC current clamp accessory with attached output cable
- User instructions
Specs
| Electrical specifications | |
| AC current range |
1 A to 400 A |
| Output signal 1 | mV/A ac |
| Accuracy | 2.0 % ± 5 digits (45 Hz to 65 Hz) 2.5 % ± 5 digits (65 Hz to 400 Hz) |
| Typical bandwith | 5 Hz to 20 kHz |
| Working voltage | 600 V ac rms, in compliance with IEC 61010-1 and IEC 61010-2-030 |
| Load impedance | 1 A to 400 A |
| Maximum non-destructive current | 600 A |
| Jaw inner diameter | 30 mm |
| Maximum wire size | 600 MCM |
| Standard plugs | 19.04 mm dual banana plugs |
