Name: Fluke 378 FC True-RMS AC/DC Clamp Meter with FieldSense and iFlex
Brand: Fluke
SKU: STINF-DM-0117
Price: 794.99 USD
Availability: InStock
Rating: 0.0 (0 reviews)

The Fluke 378 FC is a True-RMS AC/DC clamp meter with FieldSense technology for simultaneous AC voltage, AC current, and frequency measurements through the clamp jaw without electrical contact to live voltage. For FieldSense measurements, the black test lead must be connected to electrical ground. The meter also includes a power quality indicator, a guided three-phase measurement workflow, Fluke Connect logging, and an i2500-18 iFlex probe for AC current measurements up to 2500 A.

Key features

FieldSense technology measures AC voltage, AC current, and frequency through the clamp jaw; the black test lead must be connected to electrical ground
Power quality indicator flags current, voltage, and power-factor issues
Completes 3-phase voltage and current tests in three guided steps
Measures up to 999.9 A AC/DC through the jaw
Included i2500-18 iFlex probe extends AC current measurement to 2500 A
Fluke Connect support for remote logging, trending, sharing, and cloud storage
CAT III 1000 V / CAT IV 600 V safety rating

Spec

General specifications

Maximum voltage between any terminal and earth ground	1000 V
Battery	2 AA IEC LR6 alkaline
Battery life	200 hours
Display	Dual readout
Automatic power off	20 minutes

AC current - jaw

Range	999.9 A
Resolution	0.1 A
Accuracy	2% +/-5 digits, 45 Hz to 66 Hz
Crest factor	3 at 500 A; 2.5 at 600 A; 1.42 at 1000 A; add 2% for C.F. >2

AC current - flexible current probe

Range	2500 A
Resolution	1 A up to 2500 A; 0.1 A up to 999.9 A
Accuracy	3% +/-5 digits, 5 Hz to 500 Hz
Crest factor	3.0 at 1100 A; 2.5 at 1400 A; 1.42 at 2500 A; add 2% for C.F. >2

DC current

Range	999.9 A
Resolution	0.1 A
Accuracy	2% +/-10 digits when using ZERO to compensate for offsets

Voltage and frequency

AC voltage FieldSense range	1000 V
AC voltage FieldSense resolution	1 V up to 1000 V
AC voltage FieldSense accuracy	<=4/0 AWG: 3% +/-5 digits; >=4/0 AWG: 5% +/-5 digits, 45 Hz to 66 Hz
AC voltage test lead range	600.0 V and 1000 V
AC voltage test lead resolution	0.1 V up to 600.0 V; 1 V up to 1000 V
AC voltage test lead accuracy	1% +/-5 digits, 20 Hz to 500 Hz
DC voltage range	600.0 V and 1000 V
DC voltage resolution	0.1 V up to 600.0 V; 1 V up to 1000 V
DC voltage accuracy	1% +/-10 digits
mV dc range	500.0 mV
mV dc resolution	0.1 mV
mV dc accuracy	1% +/-5 digits
Jaw frequency range	45 Hz to 66 Hz
Jaw frequency resolution	0.1 Hz
Jaw frequency accuracy	0.5% +/-5 digits
Flexible probe frequency range	5.0 Hz to 500.0 Hz
Flexible probe frequency resolution	0.1 Hz
Flexible probe frequency accuracy	0.5% +/-5 digits

Resistance and capacitance

Resistance ranges	60.00 kOhm; 6000 Ohm; 600.0 Ohm
Resistance resolution	0.1 Ohm up to 600.0 Ohm; 1 Ohm up to 6000 Ohm; 10 Ohm up to 60.00 kOhm
Resistance accuracy	1% +/-5 digits
Capacitance range	1000 uF
Capacitance resolution	0.1 uF up to 100.0 uF; 1 uF up to 1000 uF
Capacitance accuracy	1% +/-4 digits

Mechanical and environmental

Size	274 mm x 86 mm x 47 mm
Instrument weight	463 g with batteries
Jaw opening	34 mm
Flexible current probe diameter	7.5 mm
Flexible current probe cable length	1.8 m from head to electronics connector
Rogowski coil length	450 mm
Operating temperature	-10 deg C to 50 deg C
Storage temperature	-40 deg C to 60 deg C
Operating humidity	Non-condensing below 10 deg C; <=90% RH from 10 deg C to 30 deg C; <=75% RH from 30 deg C to 40 deg C; <=45% RH from 40 deg C to 50 deg C
Ingress protection	IEC 60529: IP30 with jaw closed
Operating altitude	2,000 m
Storage altitude	12,000 m
Safety	IEC 61010-1 Pollution Degree 2; IEC 61010-2-032 CAT III 1000 V / CAT IV 600 V; IEC 61010-2-033 CAT III 1000 V / CAT IV 600 V

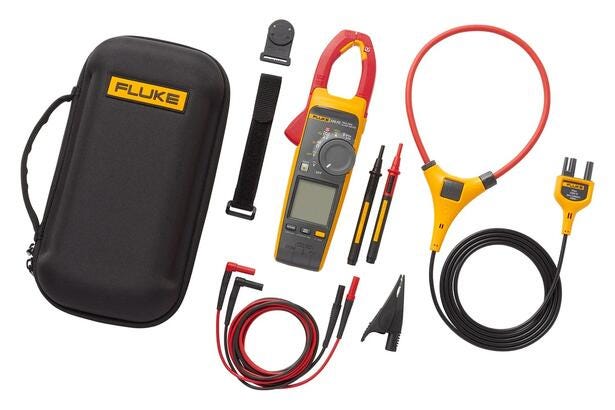

Included items

Clamp meter	Fluke 378 FC Non-Contact Voltage True-rms AC/DC Clamp Meter
Flexible probe	i2500-18 iFlex Flexible Current Probe, 18 in / 48 cm
Test leads	TL224 silicone insulated test leads
Test probes	TP175 adjustable length test probes
Grounding clip	AC285 black grounding clip, quantity one
Hanger	TPAK magnetic hanging kit with 9 in / 23 cm hanging strap
Case and guide	Premium carrying case and quick reference guide
