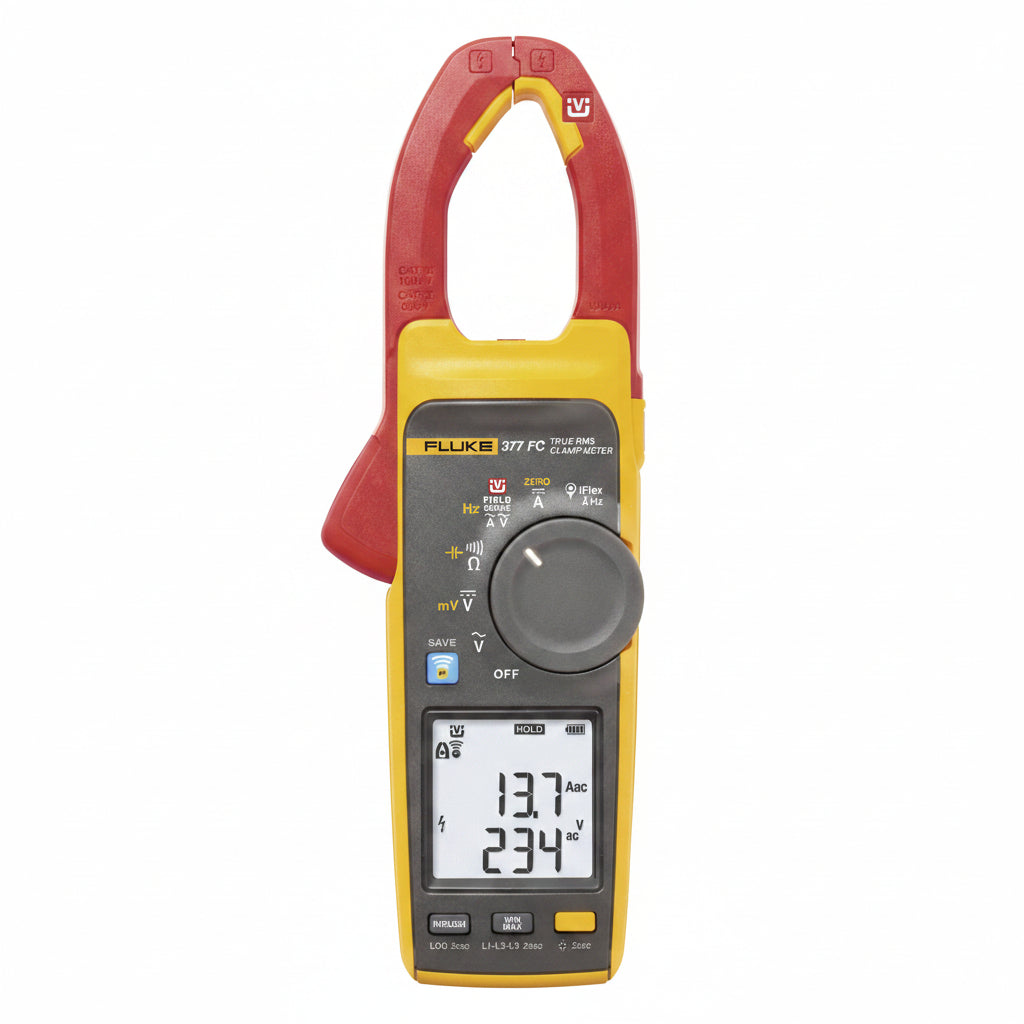

Fluke 377 FC Clamp Meter Non-Contact Voltage True-RMS AC/DC with iFlex 3-Phase
Fluke 377 FC Clamp Meter Non-Contact Voltage True-RMS AC/DC with iFlex 3-Phase
Regular price
$614.99 USD
Regular price
$615.00 USD
Sale price
$614.99 USD
Unit price
/
per
Free Shipping
No Extra Costs
Local Warehouse
Shipping from US
Easy Returns
No Return Cost
Couldn't load pickup availability
The Fluke 377 FC clamp meter is built for electricians and industrial technicians who need faster, safer testing with fewer lead connections. It combines True-RMS AC/DC measurement, FieldSense non-contact voltage through the clamp jaw, 3-phase testing workflow, and the included iFlex flexible current probe for high-current applications in one professional meter.
Key features
- FieldSense technology measures voltage and current through the clamp jaw in many tasks without direct contact to live conductors
- Measures AC and DC current through the jaw up to 999.9 A

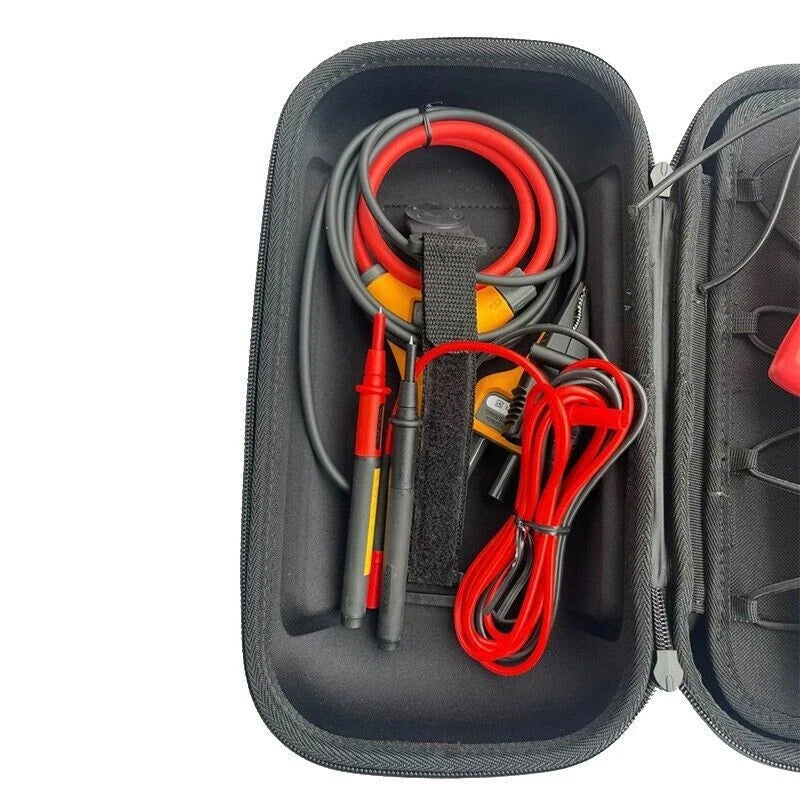

- Included iFlex flexible current probe measures AC current up to 2500 A
- Supports fast 3-phase voltage and current testing with Fluke Connect workflow support
- Measures voltage, current, resistance, capacitance, frequency, continuity, and inrush
- Visual continuity and green display feedback improve field usability
- Bluetooth and Fluke Connect support remote logging, trending, and reporting
- Professional CAT III 1000 V / CAT IV 600 V safety rating
Spec
| Model | Fluke 377 FC |
| Product type | Clamp Meter |
| AC current via jaw | Up to 999.9 A |
| DC current | Up to 999.9 A |
| AC current via iFlex | Up to 2500 A |
| AC voltage | Up to 1000 V |
| DC voltage | Up to 1000 V |
| Resistance | Up to 60 kOhms |
| Capacitance | Up to 1000 uF |
| Jaw opening | 34 mm |
| Battery | 2 AA IEC LR6 alkaline |
| Battery life | About 200 hours |
| Size | 274 x 86 x 47 mm |
| Weight with batteries | 463 g |
| Ingress protection | IP30 (jaw closed) |
| Safety rating | CAT III 1000 V / CAT IV 600 V |
Applications
- Troubleshoot AC/DC current and voltage in industrial and commercial electrical systems
- Perform 3-phase testing with faster workflow and fewer handwritten calculations
- Measure high current on large conductors with the included iFlex probe
- Log and share field results through Fluke Connect
