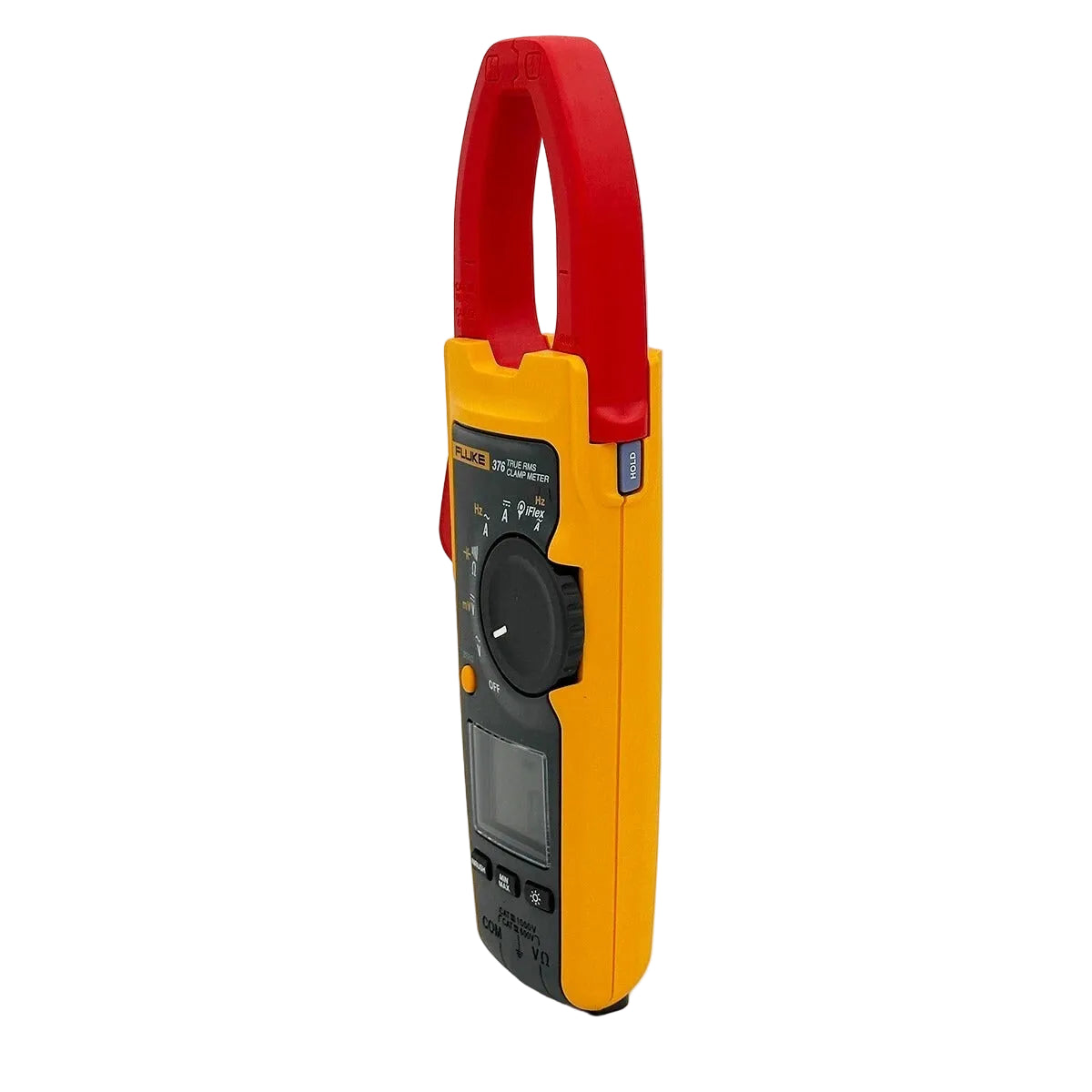

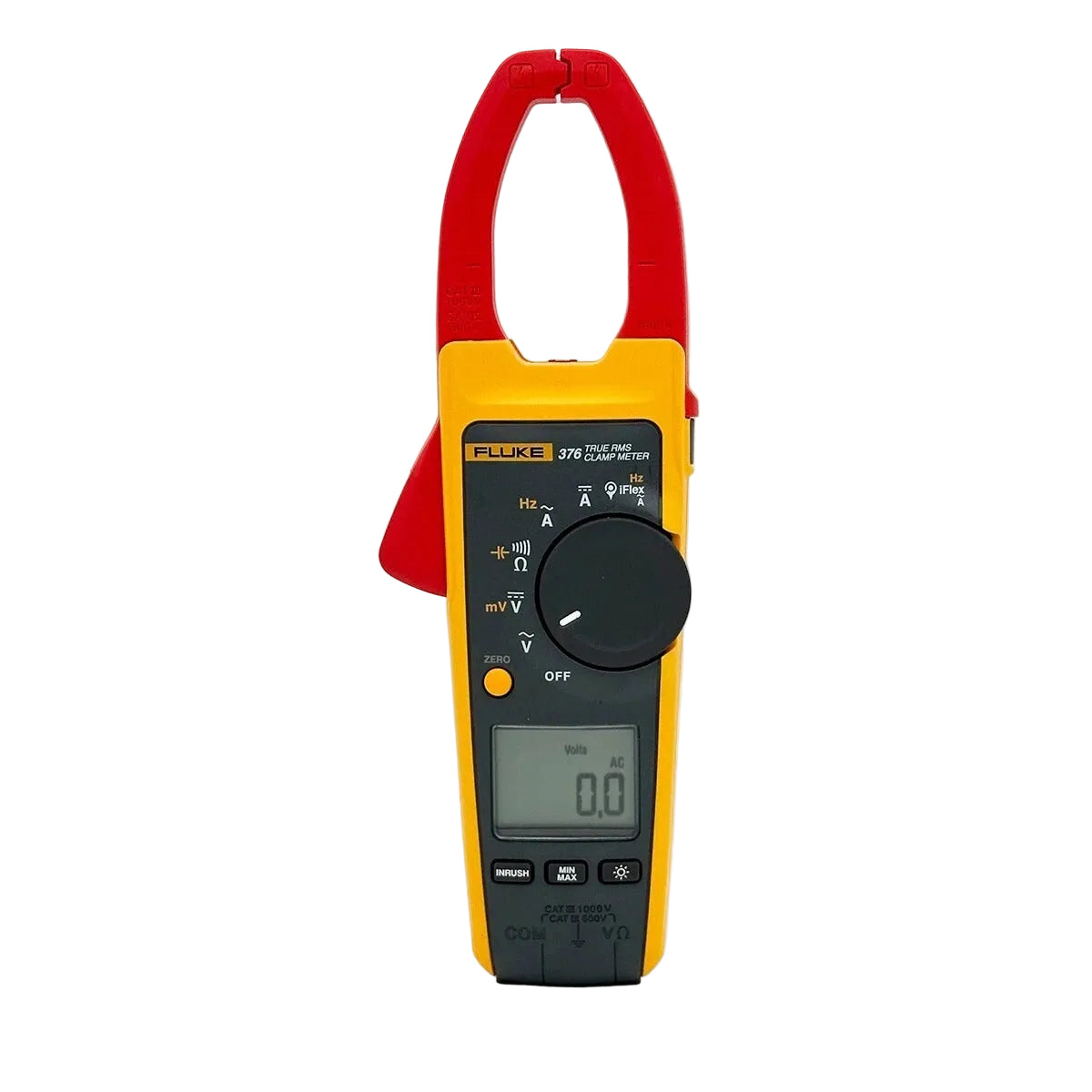

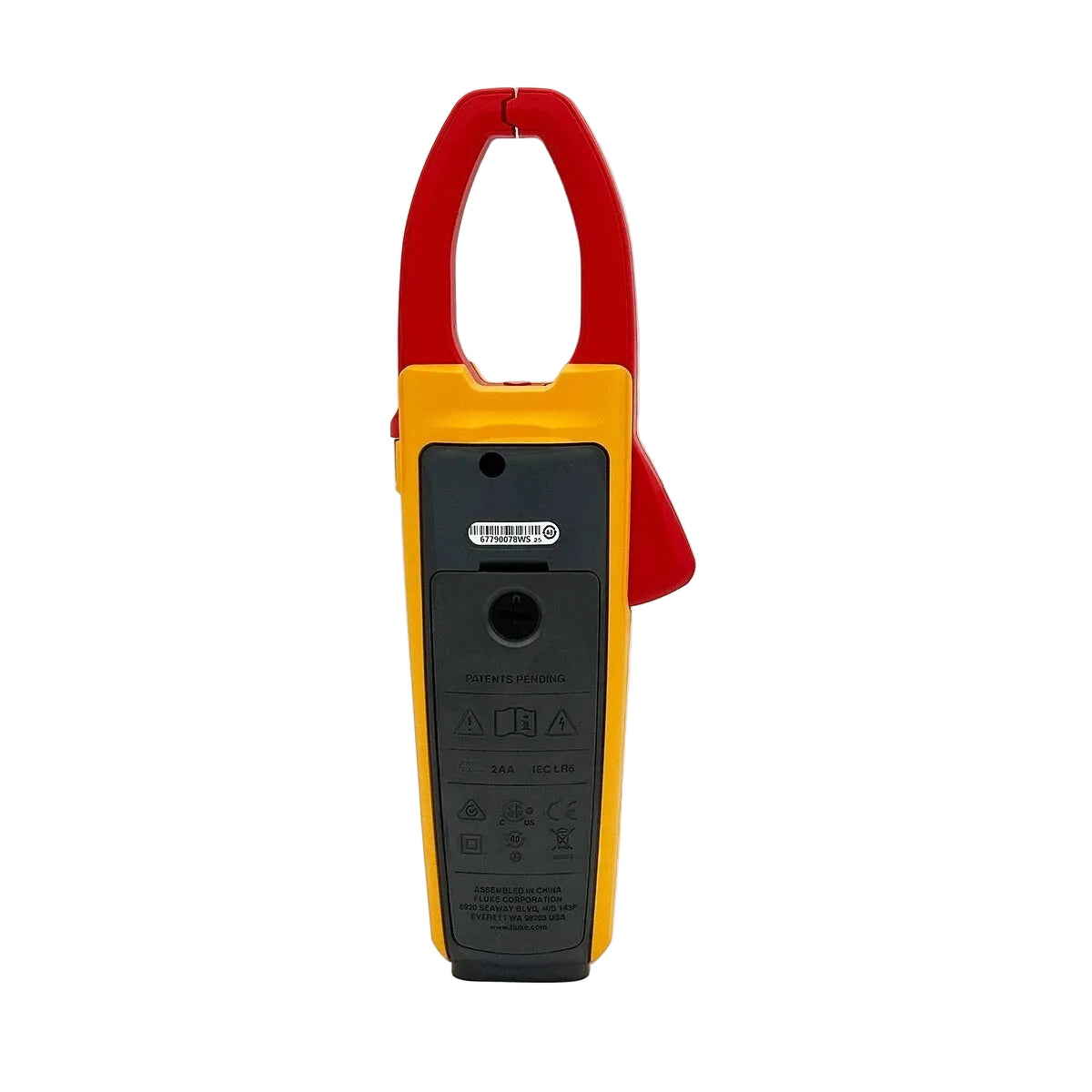

Fluke 376 FC True-RMS AC/DC Clamp Meter with iFlex 1000V 1000A Inrush
Fluke 376 FC True-RMS AC/DC Clamp Meter with iFlex 1000V 1000A Inrush
Regular price
$424.99 USD
Regular price
$671.00 USD
Sale price
$424.99 USD
Unit price
/
per
Free Shipping
No Extra Costs
Local Warehouse
Shipping from US
Easy Returns
No Return Cost
Couldn't load pickup availability
The Fluke 376 FC clamp meter is a professional True-RMS AC/DC meter for electrical troubleshooting, industrial maintenance, and motor drive work. It combines 1000 A jaw measurement, iFlex flexible current probe expansion to 2500 A AC, VFD low-pass filtering, inrush measurement, and Fluke Connect wireless workflow support in one rugged field meter.
Key features
- Measures AC and DC current through the jaw up to 999.9 A
- Includes iFlex flexible current probe for AC current measurements up to 2500 A
- Measures AC/DC voltage, DC millivolts, resistance, frequency, capacitance, continuity, and inrush current
- VFD low-pass filter improves measurements on variable frequency drives
- True-RMS performance for accurate non-linear signal measurement
- Fluke Connect support for wireless viewing, logging, and reporting
- Backlit display, min/max/average capture, display hold, and DC zero functions
- CAT III 1000 V / CAT IV 600 V safety rating
Spec
Official specifications are from the Fluke 370 FC Series technical data sheet for the 376 FC model.
| Function | Range | Resolution | Accuracy | Notes |
|---|---|---|---|---|
| AC current via jaw | 376 FC: 999.9 A | 0.1 A | +/-(2% + 5 digits), 10 Hz to 100 Hz | Crest factor 3 at 500 A; 2.5 at 600 A; 1.42 at 1000 A; add 2% for crest factor >2 |
| AC current via iFlex flexible current probe | 2500 A | 0.1 A <=999.9 A; 1 A <=2500 A |
+/-(3% + 5 digits), 5 Hz to 500 Hz | Crest factor 3.0 at 1100 A; 2.5 at 1400 A; 1.42 at 2500 A; add 2% for crest factor >2 |
| DC current | 376 FC: 999.9 A | 0.1 A | +/-(2% + 5 digits) | |
| AC voltage | 1000 V | 0.1 V <=600.0 V; 1 V <=1000 V |
+/-(1% + 5 digits), 20 Hz to 500 Hz | |
| DC voltage | 1000 V | 0.1 V <=600.0 V; 1 V <=1000 V |
+/-(1% + 5 digits) | |
| mV dc | 500.0 mV | 0.1 mV | +/-(1% + 5 digits) | |
| Frequency via jaw | 5.0 Hz to 500.0 Hz | 0.1 Hz | +/-(0.5% + 5 digits) | Trigger level: 5 Hz to 10 Hz >=10 A; 10 Hz to 100 Hz >=5 A; 100 Hz to 500 Hz >=10 A |
| Frequency via flexible current probe | 5.0 Hz to 500.0 Hz | 0.1 Hz | +/-(0.5% + 5 digits) | Trigger level: 5 Hz to 20 Hz >=25 A; 20 Hz to 100 Hz >=20 A; 100 Hz to 500 Hz >=25 A |
| Resistance | 60 kOhms | 0.1 Ohm <=600 Ohms; 1 Ohm <=6000 Ohms; 10 Ohms <=60 kOhms |
+/-(1% + 5 digits) | |
| Capacitance | 1000 uF | 0.1 uF <=100 uF; 1 uF <=1000 uF |
+/-(1% + 4 digits) |
| Maximum voltage between any terminal and earth ground | 1000 V |
| Battery type | 2 AA alkaline batteries, IEC LR6 |
| Operating temperature | -10 deg C to +50 deg C (14 deg F to +122 deg F) |
| Storage temperature | -40 deg C to +60 deg C (-40 deg F to +140 deg F) |
| Operating humidity | Non-condensing below 10 deg C; <=90% RH at 10 deg C to 30 deg C; <=75% RH at 30 deg C to 40 deg C; <=45% RH at 40 deg C to 50 deg C |
| Operating / storage altitude | 3000 m operating; 12000 m storage |
| Instrument dimensions | 24.9 cm x 8.5 cm x 4.5 cm (9.8 in x 3.3 in x 1.7 in) |
| Instrument weight | 395 g (13.9 oz) |
| Shipping weight | 1020 g from local package data |
| Jaw opening | 34 mm (1.3 in) |
| Flexible current probe diameter / cable length | 7.5 mm diameter; 1.8 m cable length from head to electronics connector |
| Safety | IEC 61010-1 Pollution Degree 2; IEC 61010-2-032 CAT III 1000 V / CAT IV 600 V; IEC 61010-2-033 CAT III 1000 V / CAT IV 600 V |
| IP rating | IEC 60529: IP30, non-operating |
| Radio frequency certification | FCC ID:T68-FBLE; IC:6627A-FBLE |
| EMC | IEC 61326-1 portable electromagnetic environment; IEC 61326-2-2; CISPR 11 Group 1, Class A |
| Temperature coefficient | Add 0.1 x specified accuracy for each deg C above 28 deg C or below 18 deg C |
| Warranty | Three-year warranty |
Applications
- Troubleshoot AC/DC electrical systems in commercial and industrial environments
- Measure high current with the included iFlex flexible current probe
- Check variable frequency drive output using the VFD low-pass filter
- Capture inrush current during motor startup and service checks
- Log and share readings through Fluke Connect workflow

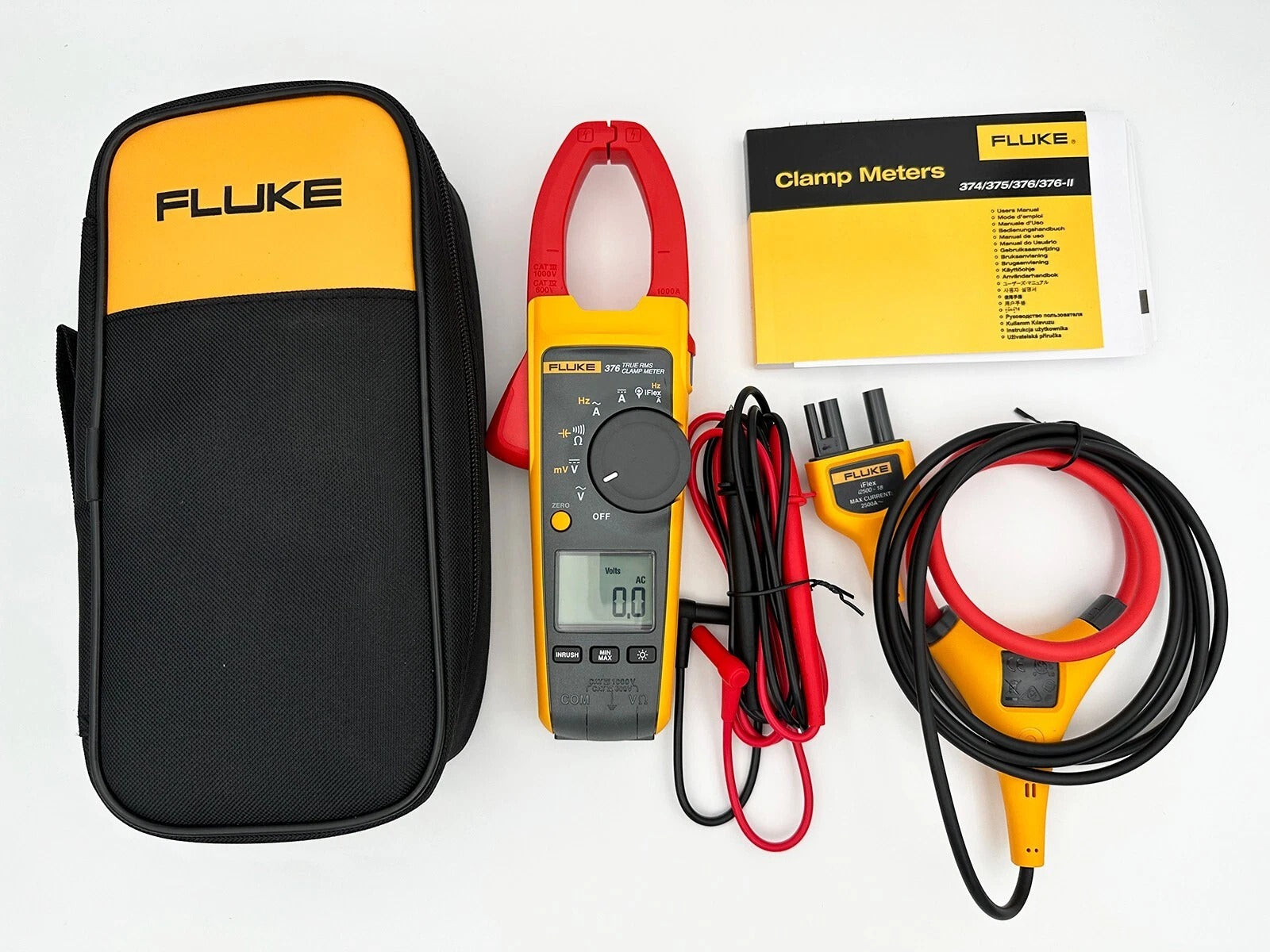

Included

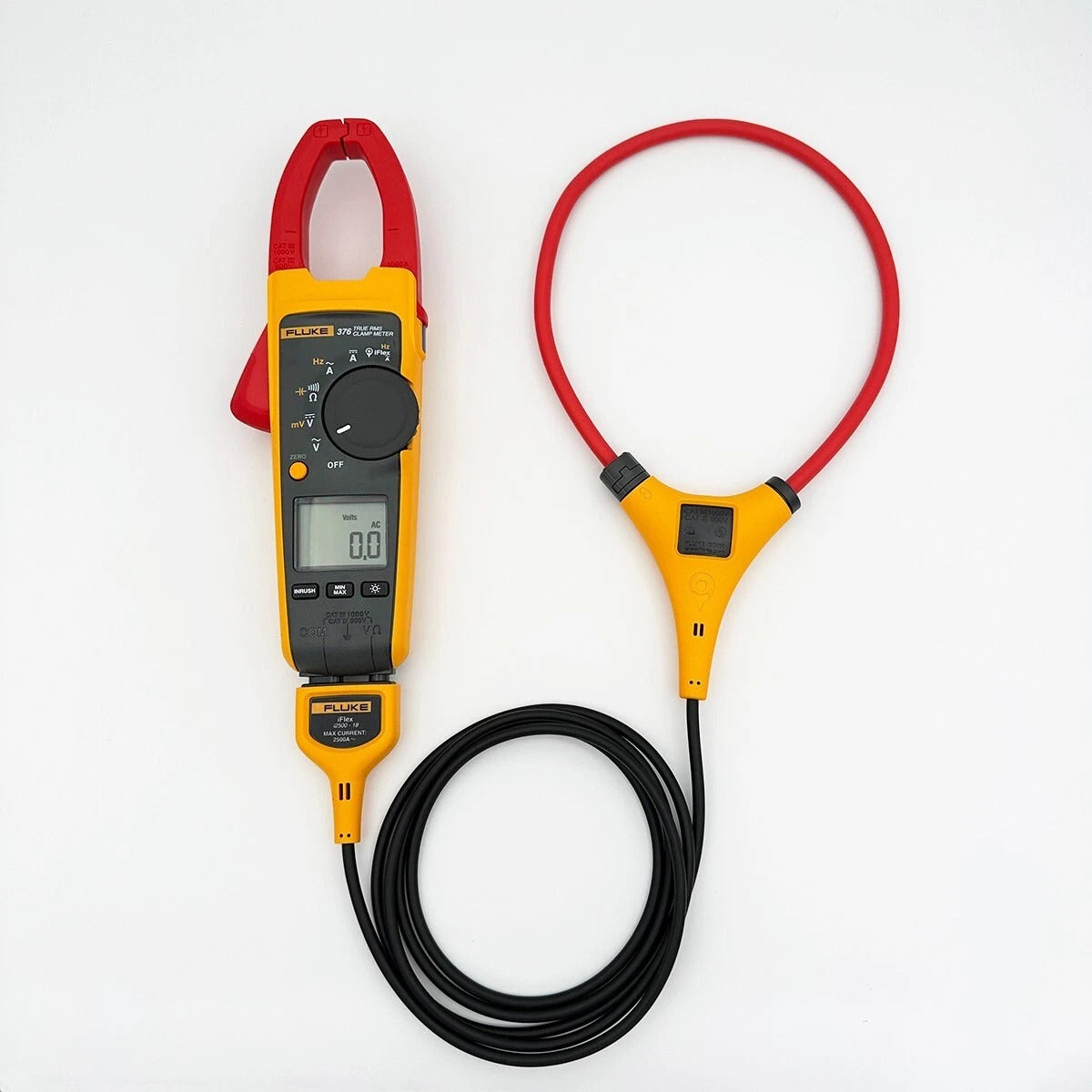

- 18-inch iFlex Flexible Current Probe
- TPAK Magnetic Hanging Strap

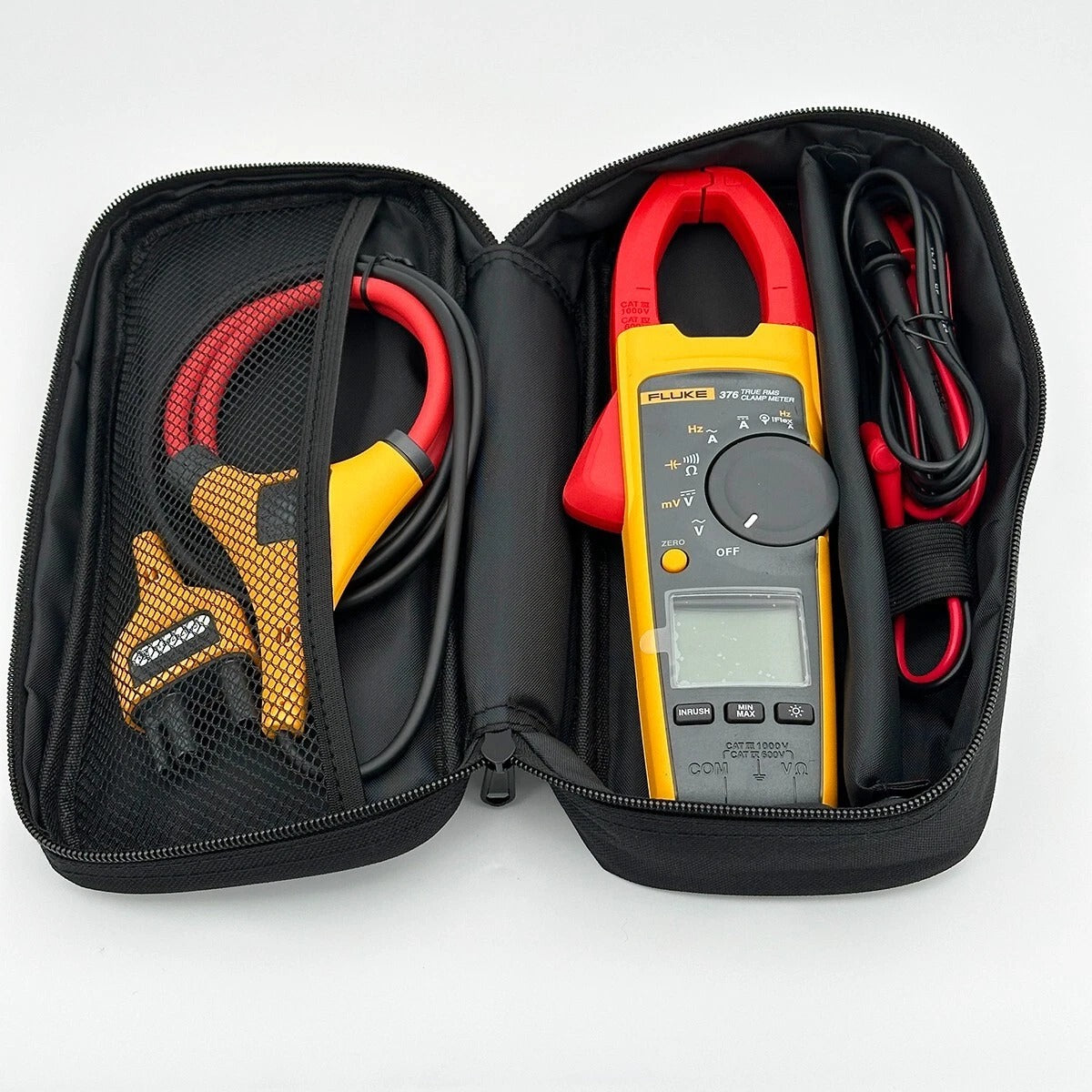

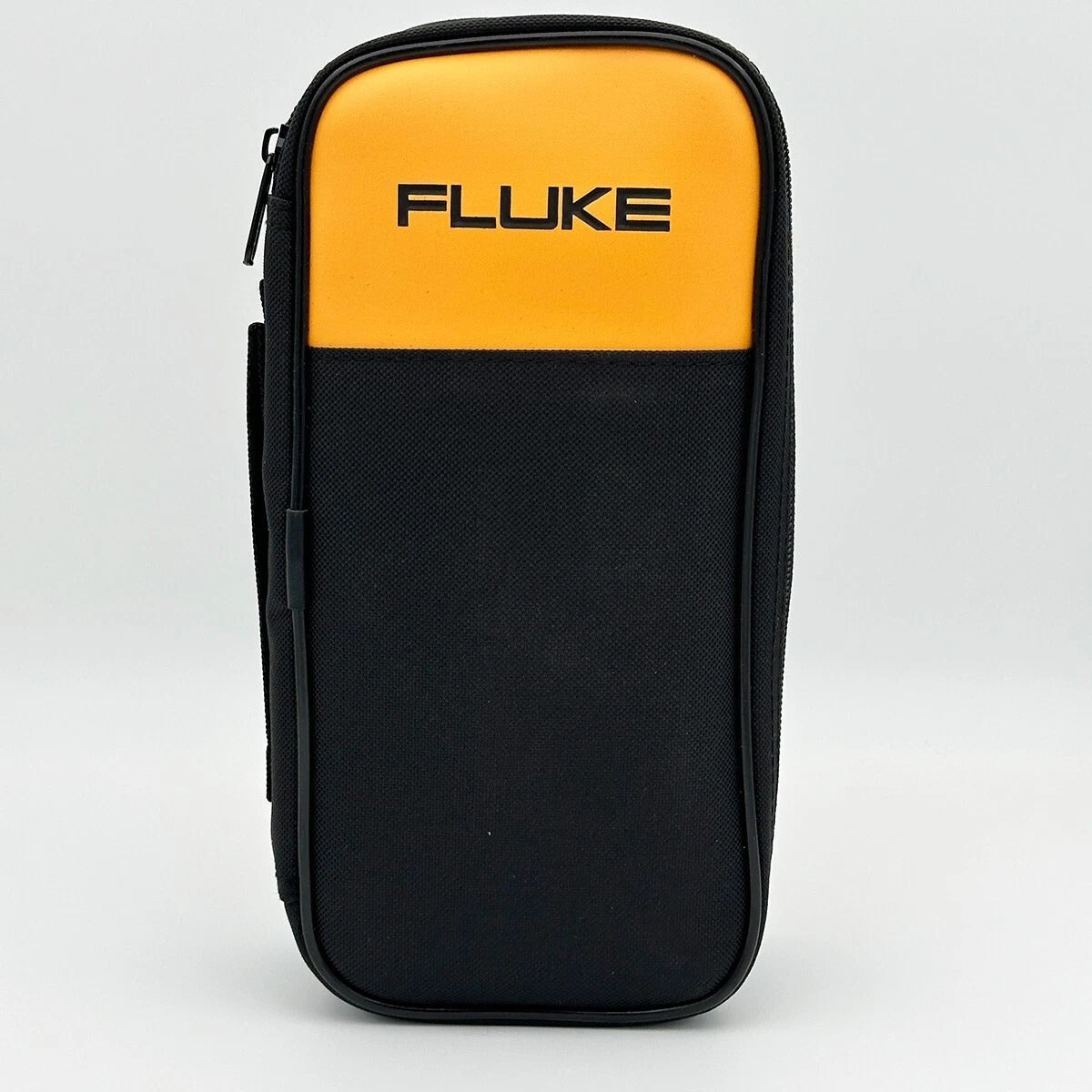

- Soft Carrying Case

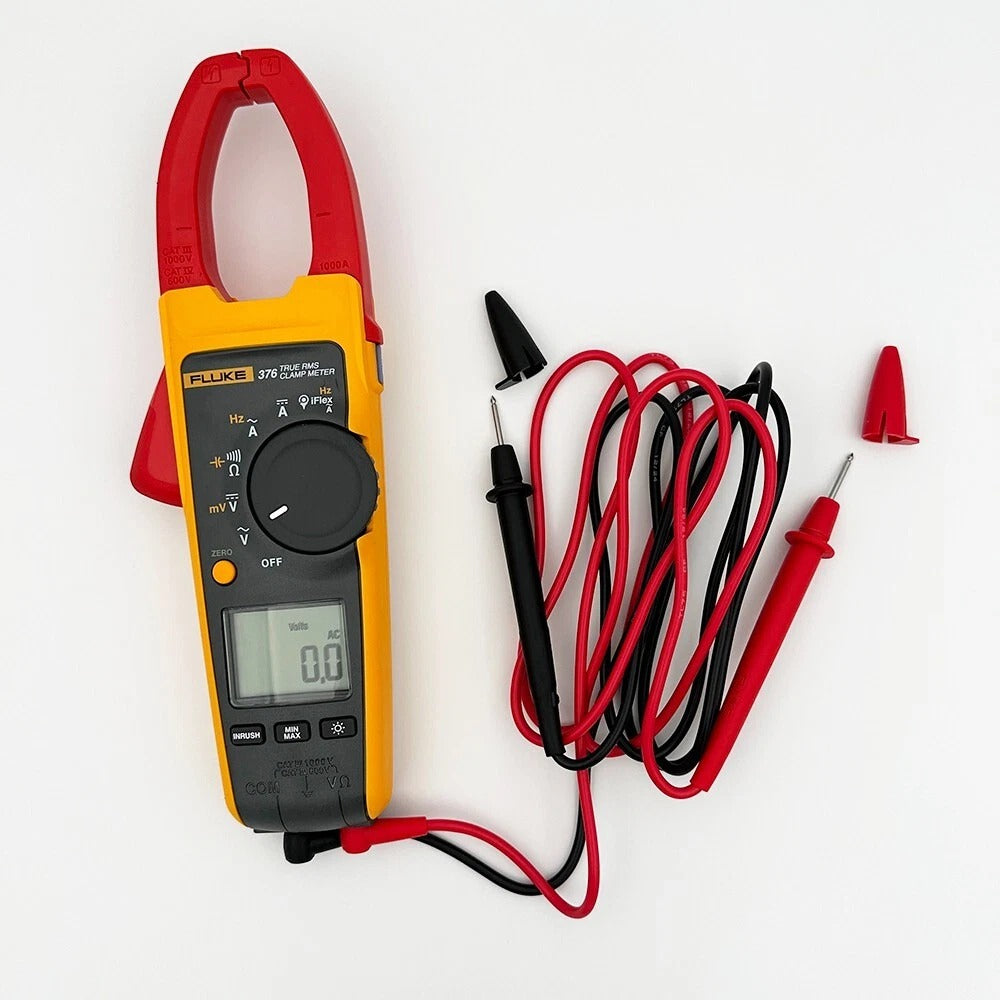

- TL75 Test Leads
- Two AA alkaline batteries
- Coated Instruction Card
- Safety Information Sheet
