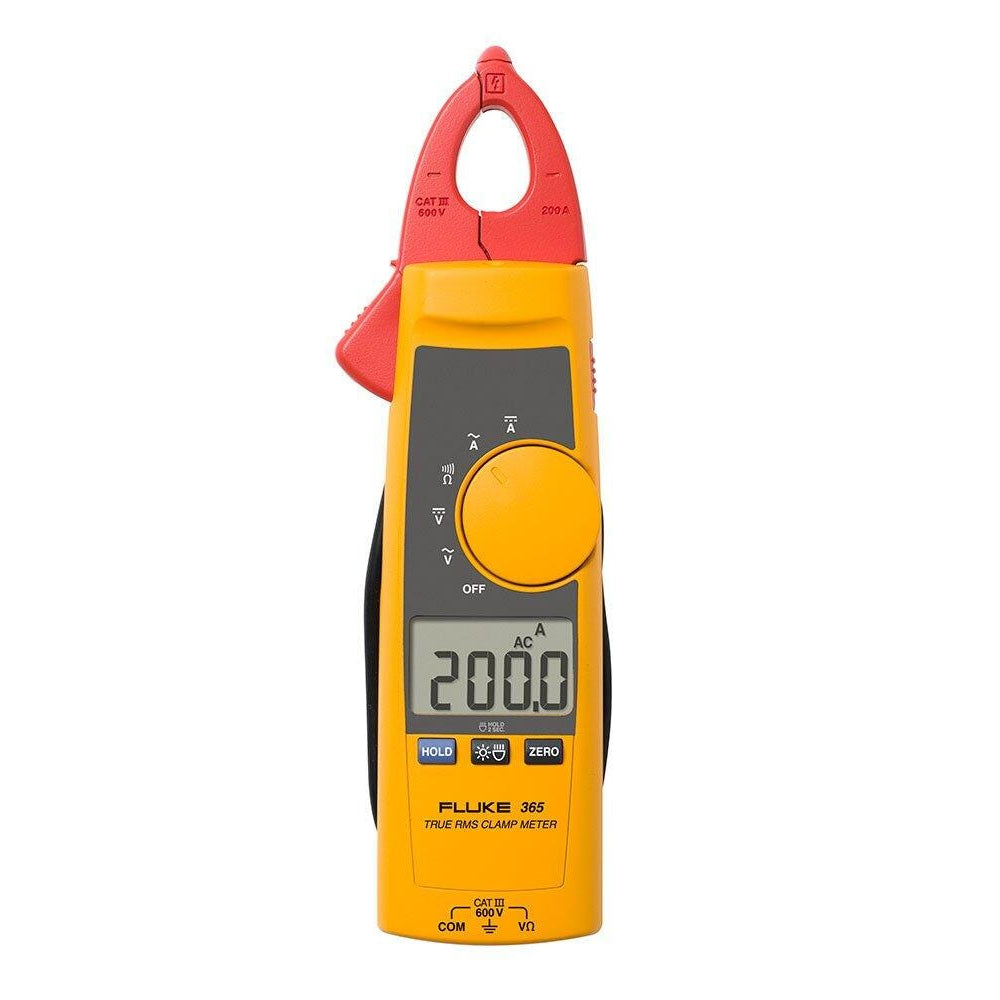

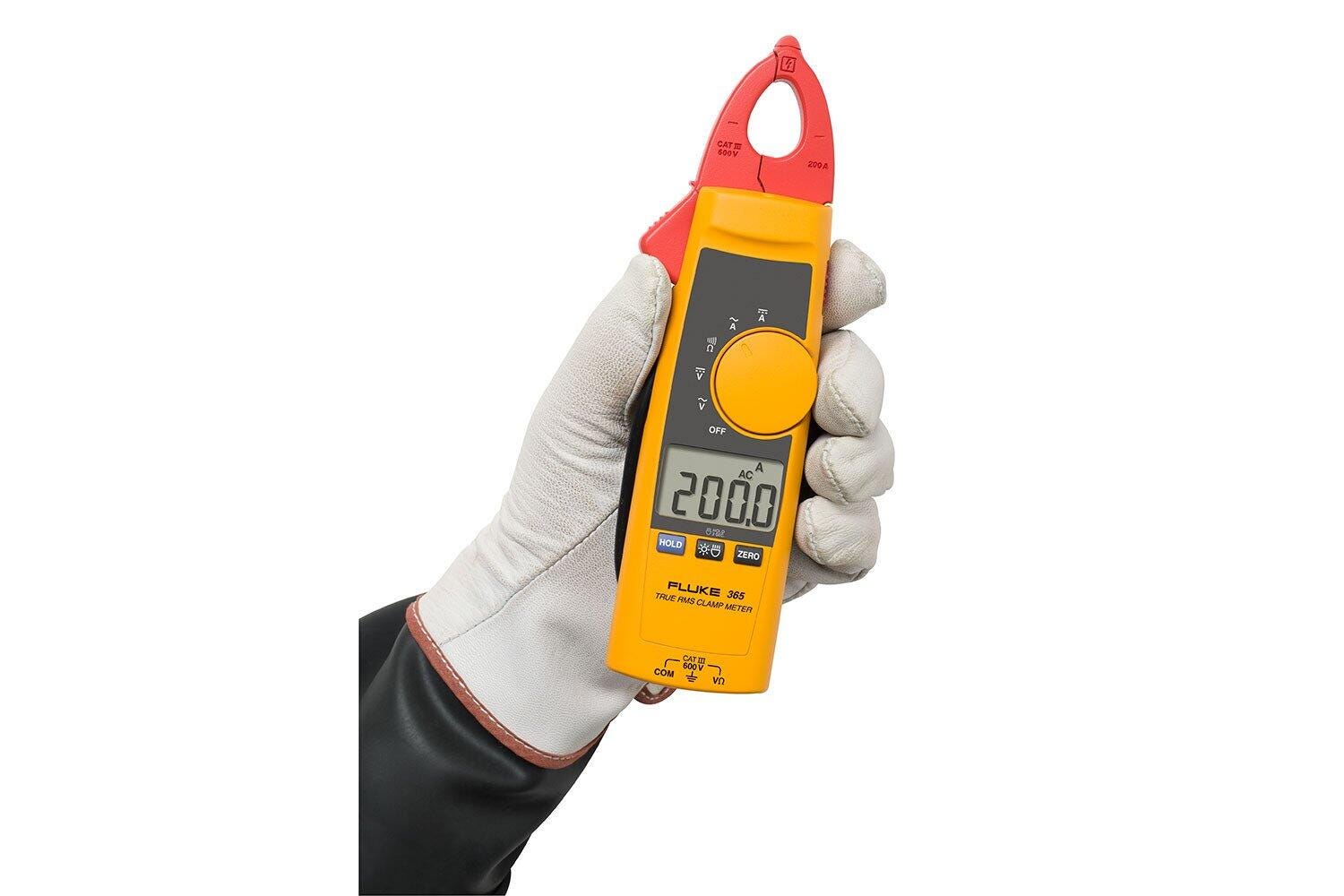

Fluke 365 Detachable Jaw True-RMS AC/DC Clamp Meter

Name: Fluke 365 Detachable Jaw True-RMS AC/DC Clamp Meter
Brand: Fluke
SKU: STINF-TS-0091
Price: 234.99 USD
Availability: InStock

$234.99 USD

~~$241.00 USD~~ $234.99 USD

Sale Sold out

Quantity

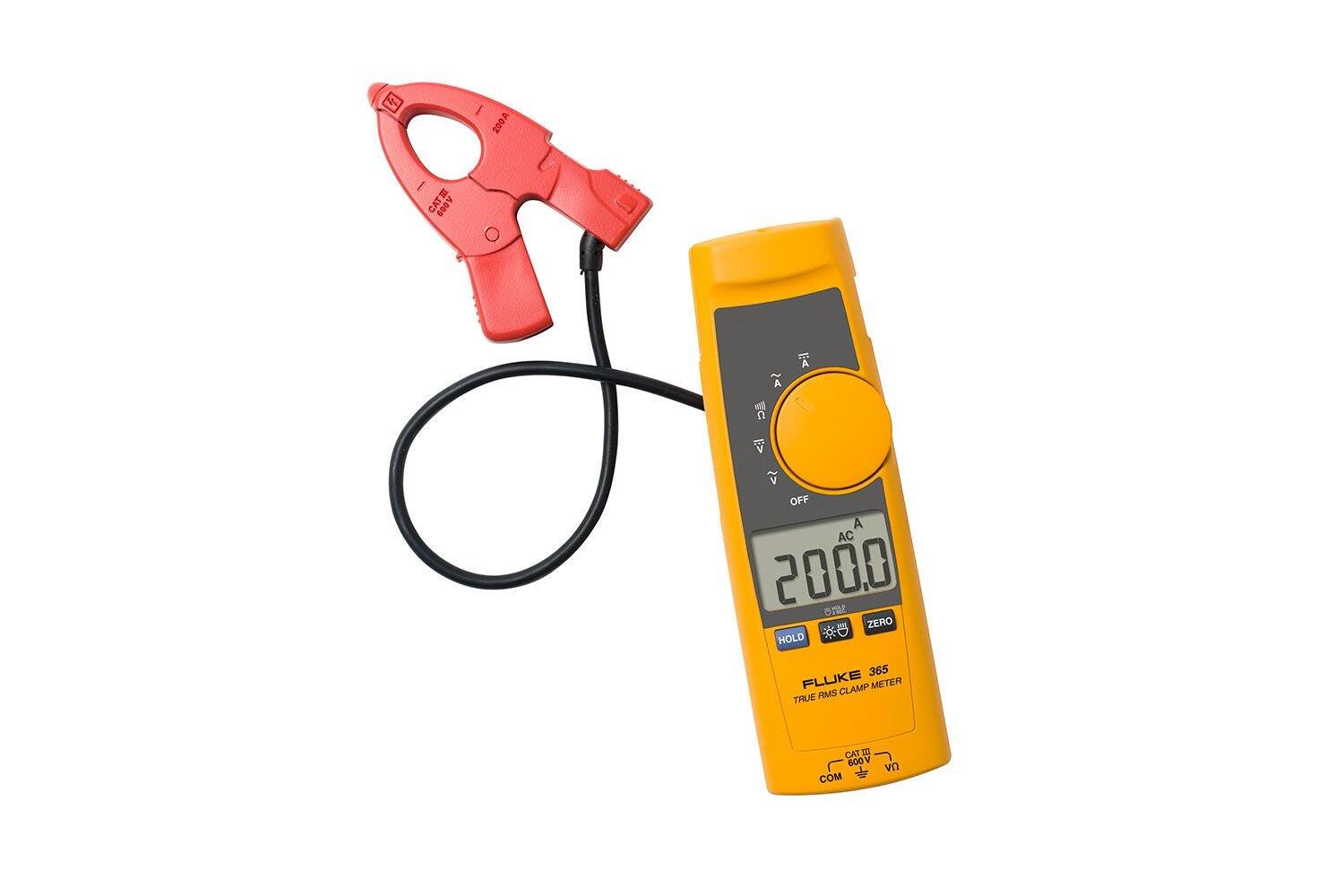

The Fluke 365 is a detachable-jaw True-RMS AC/DC clamp meter built for electrical troubleshooting where conductor access is tight. The thin jaw detaches from the meter body on a flexible 900 mm cable, making it easier to position the jaw around wiring while keeping the display visible.

Key features

True-RMS detachable-jaw clamp meter for difficult conductor access
Measures AC and DC current to 200 A with 0.1 A resolution
Measures AC and DC voltage to 600 V and resistance to 6000 ohms
18 mm detachable jaw on a 900 mm cable helps position the jaw and view the display
Backlit auto-ranging display, built-in flashlight, and compact hand-held body
CAT III 600 V safety rating with three-year Fluke warranty

Spec

Measurement specifications

AC current	Range 200.0 A; resolution 0.1 A; accuracy 2% +/-5 digits (45 Hz to 65 Hz), 2.5% +/-5 digits (65 Hz to 400 Hz); crest factor 2.5 at 125 A and 1.55 at 200 A, add 2% for C.F. >2
DC current	Range 200.0 A; resolution 0.1 A; accuracy 2% +/-5 digits
AC voltage	Range 600.0 V; resolution 0.1 V; accuracy 1.5% +/-5 digits (45 Hz to 400 Hz)
DC voltage	Range 600.0 V; resolution 0.1 V; accuracy 1% +/-5 digits
Resistance	Ranges 600.0 ohms / 6000 ohms; resolution 0.1 ohm / 1 ohm; accuracy 1% +/-5 digits

Mechanical specifications

Size	225 x 65 x 46 mm
Instrument weight	275 g including batteries
Shipping weight used for Shopify	700 g from local source-of-truth database
Jaw opening	18 mm
Detachable jaw cable length	900 mm
Display	Large backlit auto-ranging display
Work light	Built-in flashlight/torch for wire illumination and identification

Environmental specifications

Operating temperature	-10 C to +50 C
Storage temperature	-40 C to +60 C
Operating humidity	Non-condensing below 10 C; <=90% RH at 10 C to 30 C; <=75% RH at 30 C to 40 C; <=45% RH at 40 C to 50 C
Operating altitude	2000 m
Storage altitude	12000 m
Temperature coefficient	0.1 x specified accuracy per C below 18 C or above 28 C

Safety and included items

Safety compliance	ANSI/ISA S82.02.01:2004; CAN/CSA-C22.2 No. 61010-1-04; UL 61010-1:2004; EN/IEC 61010-1:2001 to 600 V CAT III; Pollution Degree 2
Batteries	2 AA, NEDA 15A, IEC LR6

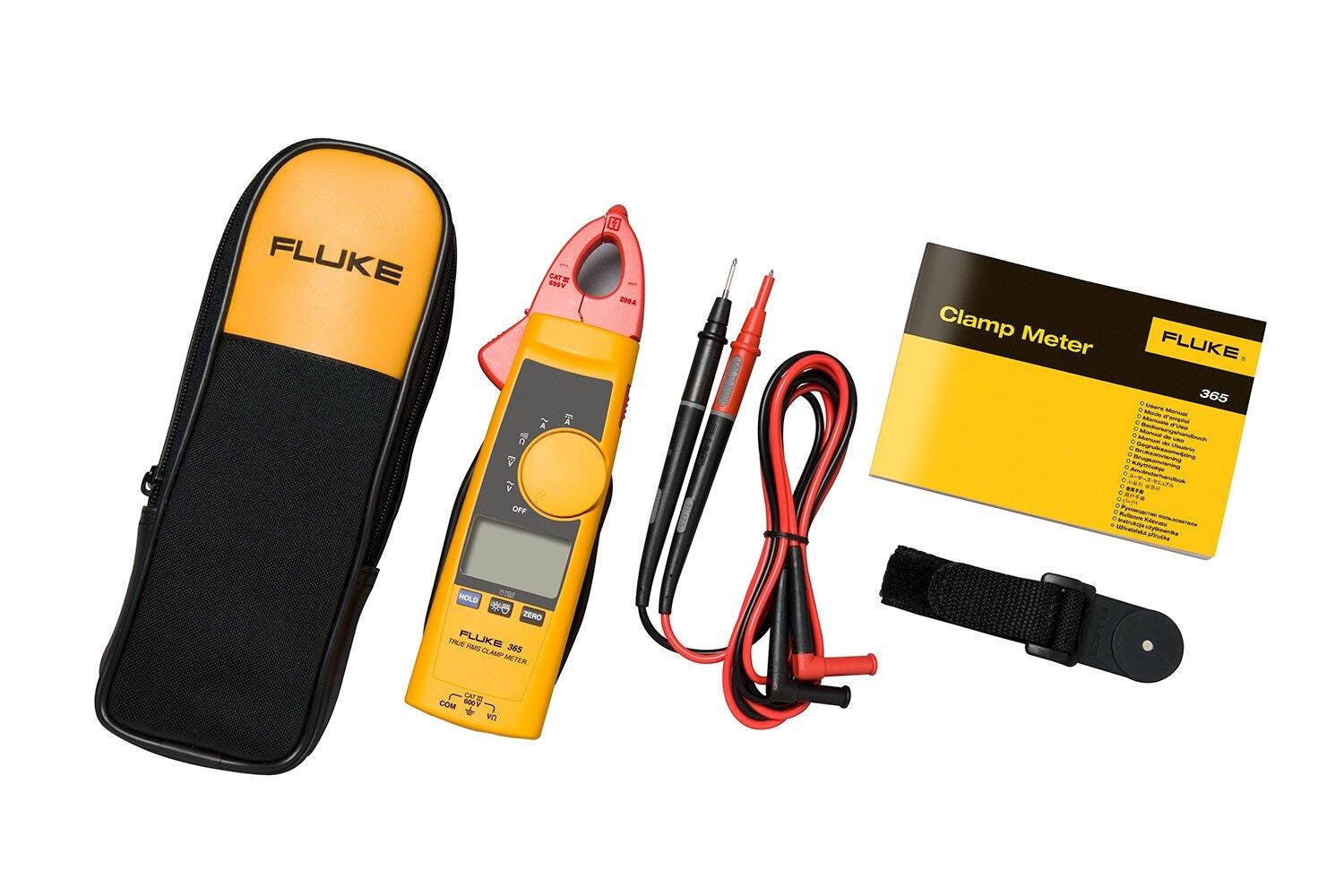

Included	365 detachable jaw clamp meter, TL75 test leads, five installed AA alkaline batteries, soft carrying case, magnetic hanging strap, quick reference guide
Warranty	Three-year warranty

Manual
