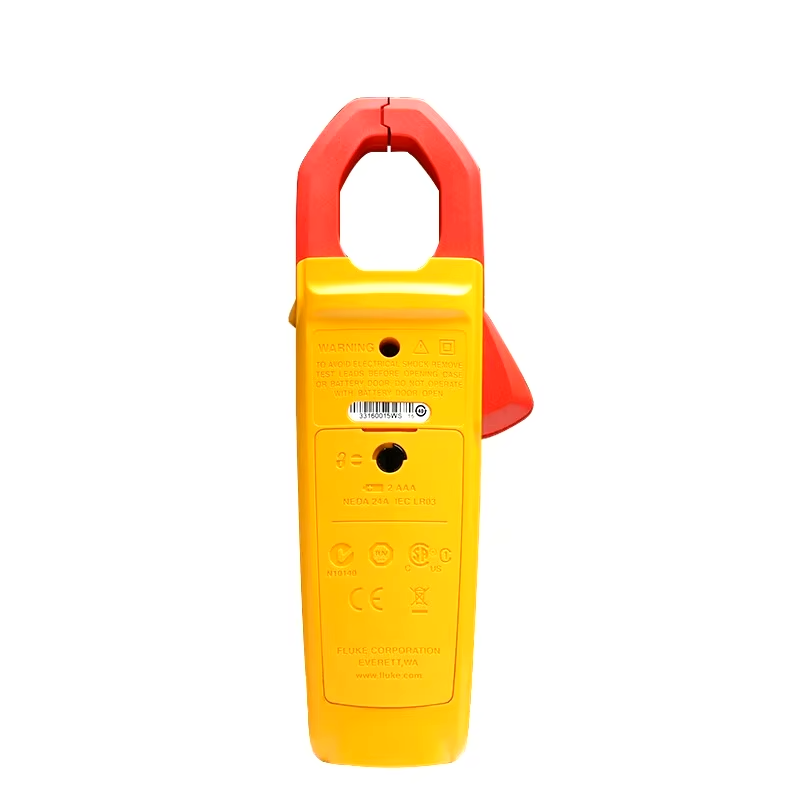

Fluke 325 True RMS Clamp Meter
Fluke 325 True RMS Clamp Meter
Regular price
$248.89 USD
Regular price
$257.99 USD
Sale price
$248.89 USD
Unit price
/
per
Free Shipping
No Extra Costs
Local Warehouse
Shipping from US
Easy Returns
No Return Cost
Couldn't load pickup availability
The Fluke 325 clamp meter is a True-RMS AC/DC troubleshooting tool for commercial and residential electricians. It measures current to 400 A through the jaw, voltage to 600 V with test leads, plus resistance, capacitance, frequency, and contact temperature.
Key features
- Measures True-RMS AC and DC current to 400 A through the jaw
- Measures AC and DC voltage to 600 V with the included TL75 test leads
- Measures frequency from 5 Hz to 500 Hz, resistance to 40 kΩ, and capacitance to 1000 µF
- Measures contact temperature from -10 °C to 400 °C. The included Type K thermocouple is rated to 260 °C; use a suitably rated probe for higher temperatures
- Includes Min/Max, data hold, backlight, and DC current zero functions
- CAT III 600 V and CAT IV 300 V safety ratings
Spec
| Function | Range | Resolution | Accuracy / notes |
|---|---|---|---|
| AC current with jaw | 40.00 A / 400.0 A | 0.01 A / 0.1 A | 2.0% ± 5 digits, 45 Hz to 65 Hz; 2.5% ± 5 digits, 65 Hz to 400 Hz. Add 2% for position sensitivity. |
| DC current with jaw | 40.00 A / 400.0 A | 0.01 A / 0.1 A | 2.0% ± 5 digits |
| AC voltage | 600.0 V | 0.1 V | 1.5% ± 5 digits, 45 Hz to 400 Hz |
| DC voltage | 600.0 V | 0.1 V | 1.0% ± 5 digits |
| Resistance | 400.0 Ω / 4000 Ω / 40.00 kΩ | 0.1 Ω / 1 Ω / 10 Ω | 1.0% ± 5 digits |
| Continuity | 30 Ω or less | - | Audible beeper |
| Capacitance | 100.0 µF / 1000 µF | 0.1 µF / 1 µF | 1.0% ± 4 digits |
| Frequency with jaw | 5.0 Hz to 500.0 Hz | 0.1 Hz | 0.5% ± 4 digits; trigger level varies by frequency and current |
| Contact temperature | -10.0 °C to 400.0 °C | 0.1 °C | 1.0% ± 8 digits; thermocouple probe error not included. The included Type K probe is rated to 260 °C |
| Maximum voltage | 600 V between any terminal and earth ground |
| AC response | True-RMS |
| Operating temperature | -10 °C to +50 °C |
| Storage temperature | -30 °C to +60 °C |
| Operating / storage altitude | 2000 m / 12000 m |
| Instrument dimensions | 207 x 75 x 34 mm |
| Instrument weight | 283 g |
| Maximum wire diameter | 30 mm (600 MCM) |
| Batteries | 2 AAA, NEDA 24A / IEC LR03 |
| Safety | IEC 61010-1, IEC 61010-2-032, and IEC 61010-2-033; CAT III 600 V / CAT IV 300 V |
| Ingress protection | IP30, non-operating |
| Warranty | Two years |
Included
- Fluke 325 True-RMS Clamp Meter
- TL75 test leads
- Type K thermocouple
- Two AAA batteries installed
- Soft carrying case
