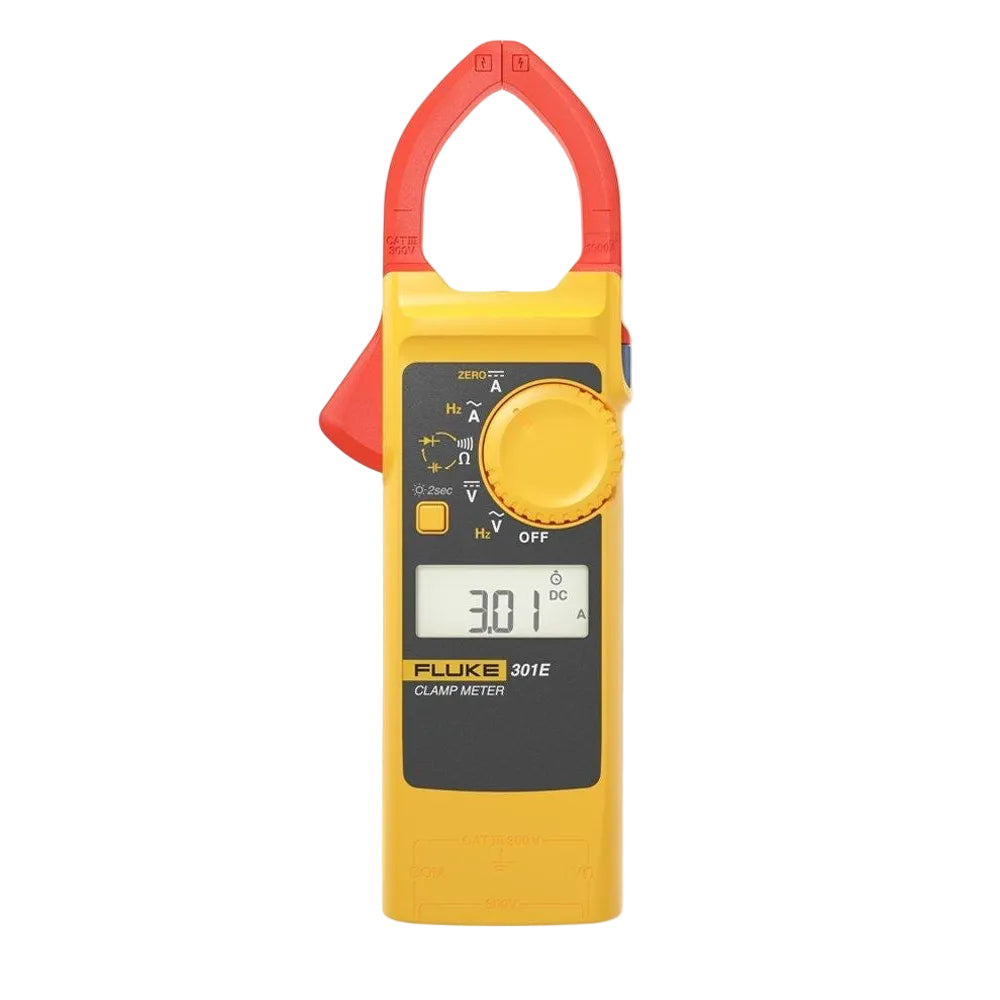

Fluke 301E AC/DC Clamp Meter 1000A with 600V Voltage and Backlight
Fluke 301E AC/DC Clamp Meter 1000A with 600V Voltage and Backlight
Regular price
$149.99 USD
Regular price
Sale price
$149.99 USD
Unit price
/
per
Free Shipping
No Extra Costs
Local Warehouse
Shipping from US
Easy Returns
No Return Cost
Couldn't load pickup availability

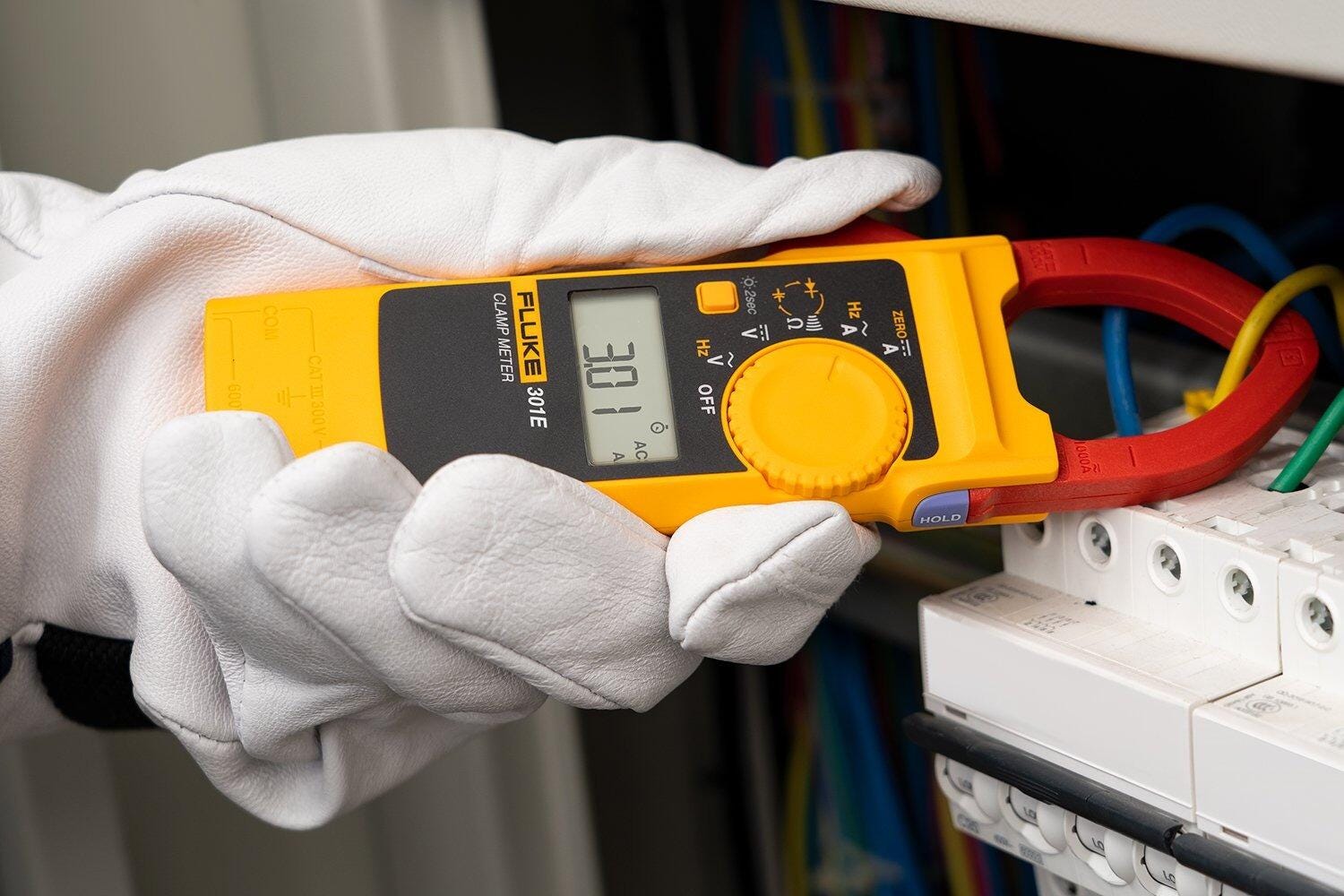

The Fluke 301E is a compact AC/DC clamp meter with a slim jaw for work around tightly packed conductors. It covers high-current AC/DC clamp measurement, voltage checks, resistance, capacitance, frequency, diode, and continuity tests in a pocket-friendly tool.
Key features
- Slim AC/DC clamp meter for tightly packed wires
- Measures AC and DC current to 1000 A
- Measures AC and DC voltage to 600 V
- Resistance, capacitance, frequency, diode, and continuity test functions
- Backlit 6000-count LCD with hold function
- 34 mm jaw opening with CAT III 300 V safety rating
Spec
Current specifications
| AC current, 45 Hz to 400 Hz | Ranges 60.00 A / 600.0 A / 1000 A; resolution 0.01 A / 0.1 A / 1 A; accuracy 2% + 10 digits on 60 A and 2% + 5 digits on 600 A / 1000 A |
|---|---|
| DC current | Ranges 60.00 A / 600.0 A / 1000 A; resolution 0.01 A / 0.1 A / 1 A; accuracy 2% + 10 digits on 60 A and 2% + 5 digits on 600 A / 1000 A |
| Current frequency | Range 45.0 Hz to 400.0 Hz; accuracy 0.1% + 3 digits |
Voltage and resistance specifications
| AC voltage, 45 Hz to 400 Hz | Range 600.0 V; resolution 0.1 V; accuracy 1.5% + 5 digits |
|---|---|
| DC voltage | Range 600.0 V; resolution 0.1 V; accuracy 1% + 5 digits |
| Resistance | Ranges 600.0 ohms / 6.000 kohms / 60.00 kohms; accuracy 1% + 5 digits |
| Voltage frequency | Ranges 9.999 Hz / 99.99 Hz / 999.9 Hz / 9.999 kHz / 99.99 kHz; accuracy 0.1% + 3 digits |
Additional measurement functions
| Capacitance | Ranges 9.999 uF / 99.99 uF / 999.9 uF; accuracy 2% + 5 digits / 5% + 5 digits |
|---|---|
| Diode | Range 3.000 V; accuracy 10% |
| Continuity | Supported |
| Hold | Supported |
| Backlight | Supported |
Mechanical and general specifications
| Display | 6000-count LCD, updates 3 times per second |
|---|---|
| Instrument dimensions | 190 x 52 x 16 mm |
| Source-of-truth package dimensions | 23 x 10.5 x 5.5 cm from db/listings.db |
| Instrument weight | 154 g for 301D/E |
| Shipping weight used for Shopify | 353 g from db/listings.db |
| Jaw opening | 34 mm |
| Clamp arm size | 10 x 10 mm |
| Battery | 2 AAA, IEC LR03; 500 hours minimum battery life |
| Auto power off | 20 minutes |
| Operating temperature | -10 C to 50 C |
| Storage temperature | -30 C to 60 C |
| Operating altitude | 2000 m |
| Storage altitude | 12000 m |
| Ingress protection | IP30 |
Safety and included items
| Safety rating | IEC 61010-1 and IEC 61010-2-032 CAT III 300 V, Pollution Degree 2 |
|---|---|
| Maximum voltage to earth ground | 300 V |
| Maximum differential voltage between V/ohm and COM terminals | 600 V |
| Electromagnetic environment | IEC 61326-1 portable |

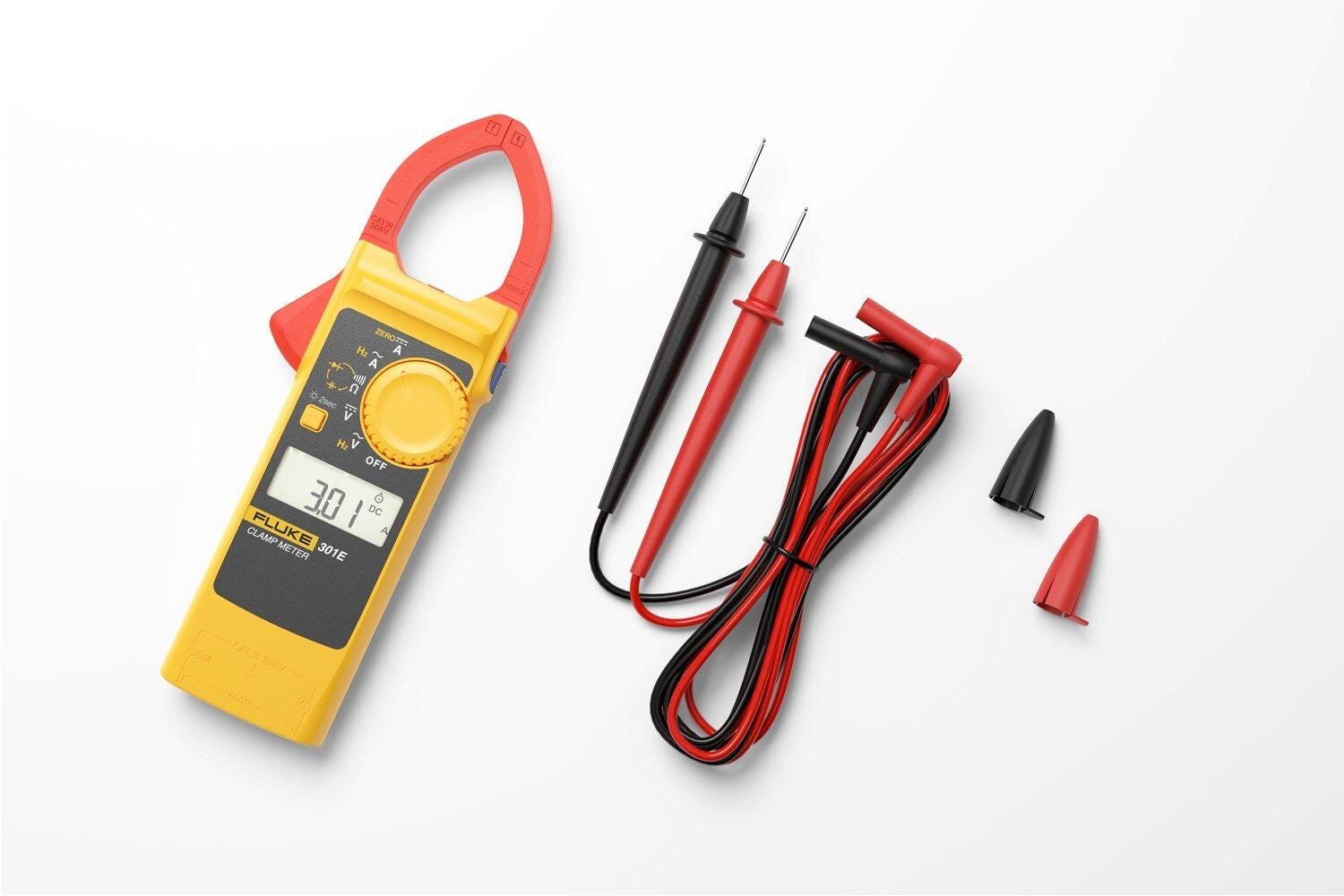

| Included | Fluke 301E clamp meter, TL75 test leads, two AAA batteries |
| Warranty | One-year warranty |
