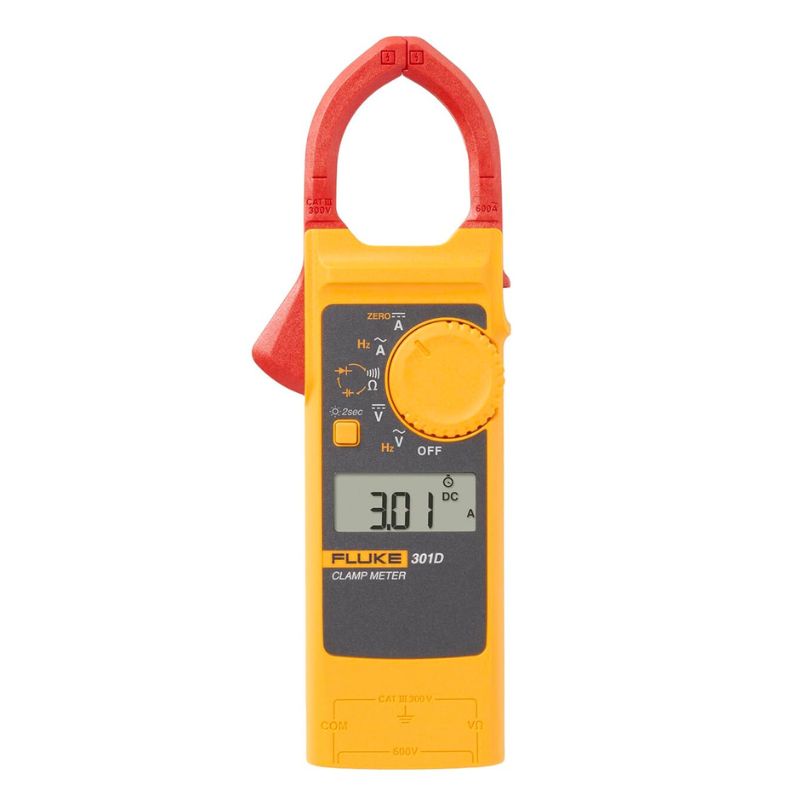

Fluke 301D AC/DC Clamp Meter
Fluke 301D AC/DC Clamp Meter
Regular price
$128.89 USD
Regular price
$154.99 USD
Sale price
$128.89 USD
Unit price
/
per
Free Shipping
No Extra Costs
Local Warehouse
Shipping from US
Easy Returns
No Return Cost
Couldn't load pickup availability
The Fluke 301D Series AC/DC Clamp Meter is designed with a lightweight and compact body, which allows you to carry it around in your pocket. The slim and thin jaw can easily fit into tightly packed wires. The Fluke 301D test current, voltage, resistance, continuity, frequency (voltage and current), capacitance, and diode, etc.. You can handle multiple test needs with just one tool. With the AC/DC function, it can be applied to more application scenarios requiring DC testing, such as new energy of PV and wind power, new energy vehicles, communications, data centers, etc..
Features:

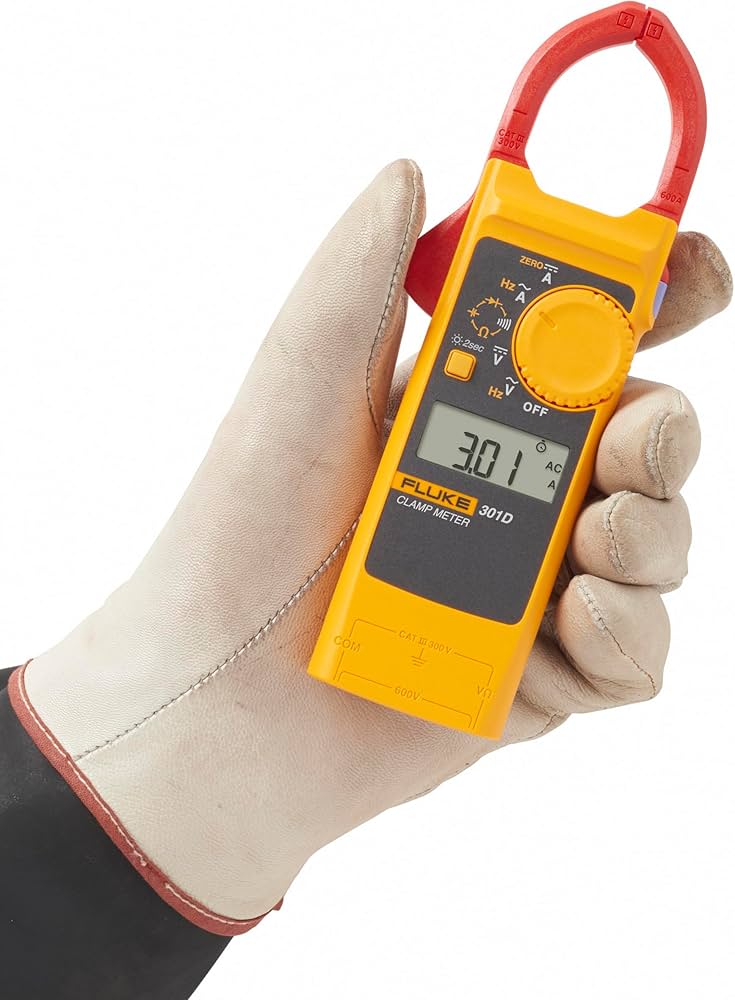

- The body weighs only 154g and is 16mm thick, which is light and portable and can be put into a pocket
- The slim and thin jaw of only 10mm can easily fit into tightly packed wires
- 600A AC/DC range (D model), 0.01A high resolution
- Tests voltage, resistance and continuity
- Tests current frequency and voltage frequency
- Tests capacitance and diodes
- Backlight

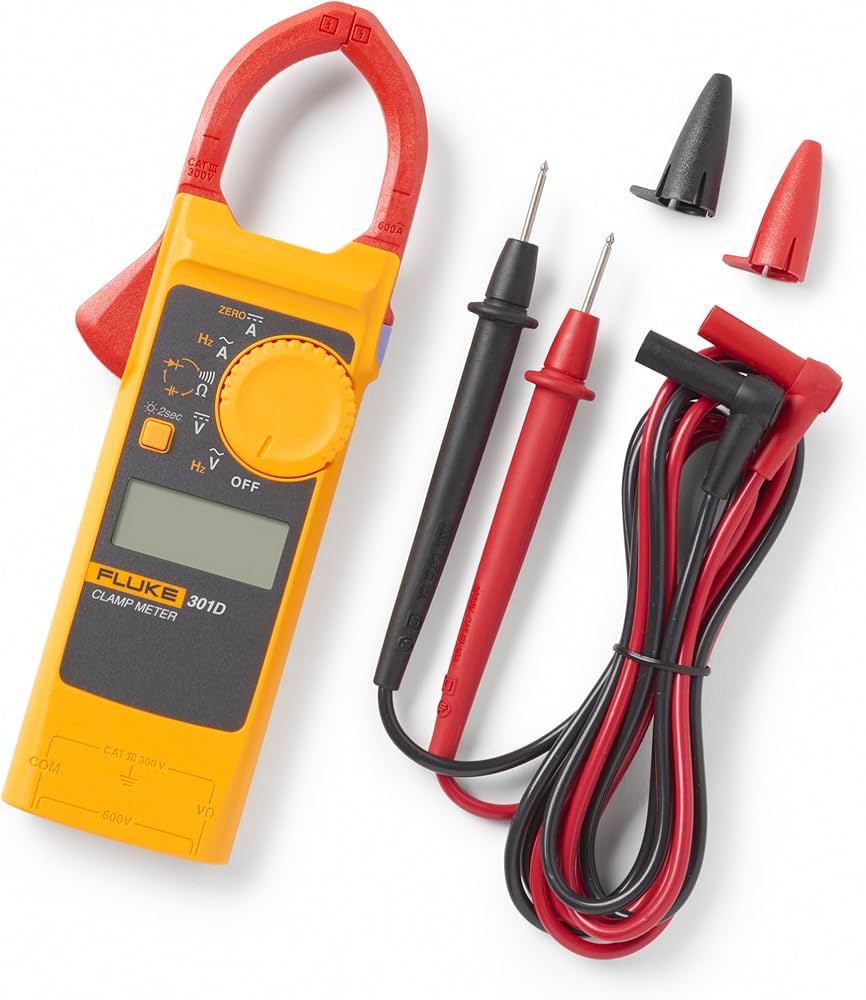

Package Including:
- Fluke 301D Clamp Meter
- TL75 test lead
- (2) AAA batteries
Specs
| AC Current (45 to 400 Hz) | Range | 60.00 A | 600.0 A |
| Resolution | 0.01 A | 0.1 A | |
| Accuracy | 2% + 10 | 2% + 5 | |
| DC Current | Range | 60.00 A | 600.0 A |
| Resolution | 0.01 A | 0.1 A | |
| Accuracy | 2% + 10 | 2% + 5 | |
| AC Voltage (45 to 400 Hz) | Range | 600.0 V | |
| Resolution | 0.1 V | ||
| Accuracy | 1.5% + 5 | ||
| DC Voltage | Range | 600.0 V | |
| Resolution | 0.1 V | ||
| Accuracy | 1% + 5 | ||
| Resistance | Range | 600.0 Ω 6.000 kΩ 60.00 kΩ |
|
| Accuracy | 1% + 5 | ||
| Voltage Frequency | Range | 9.999 Hz 99.99 Hz 999.9 Hz 9.999 kHz 99.99 kHz |
|
| Accuracy | 0.1% + 3 | ||
| Current Frequency | Range | 45.0-400.0 Hz | |
| Accuracy | 0.1% + 3 | ||
| Capacitance | Range | 9.999 uF | 99.99 uF 999.9 uF |
| Accuracy | 2% + 5 | 5% + 5 | |
| Diode | Range | 3.000 V | |
| Accuracy | 10% | ||
| T-rms Value | - | ||
| Continuity | ● | ||
| Hold | ● | ||
| Backlight | ● | ||
| Safety rating | CAT III 300 V | ||
| Weight | 154 g | ||
| Size | 190 mm x 52 mm x 16 mm | ||
| Jaw Opening | 34 mm | ||
| Clamp Arm Size | 10 mm X 10 mm | ||
| Battery | (2) AAA batteries | ||
| Warranty | 1 year | ||
