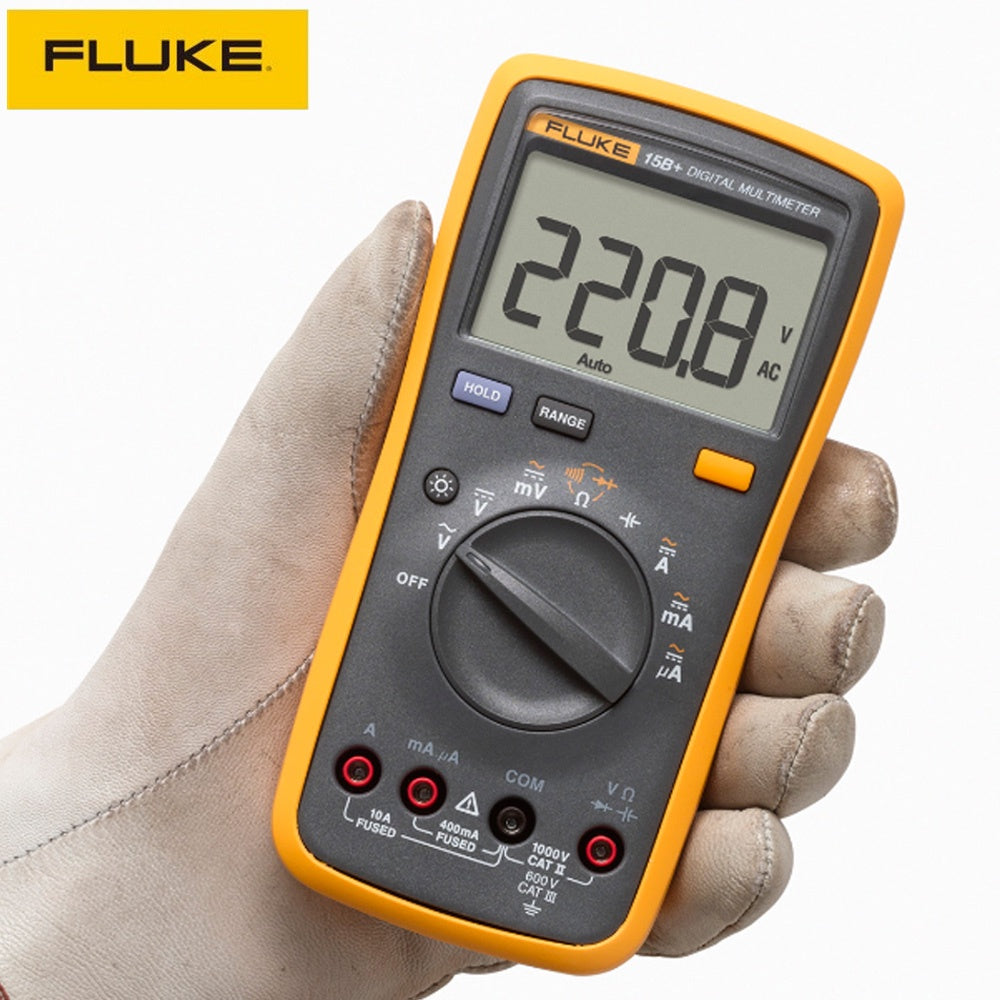

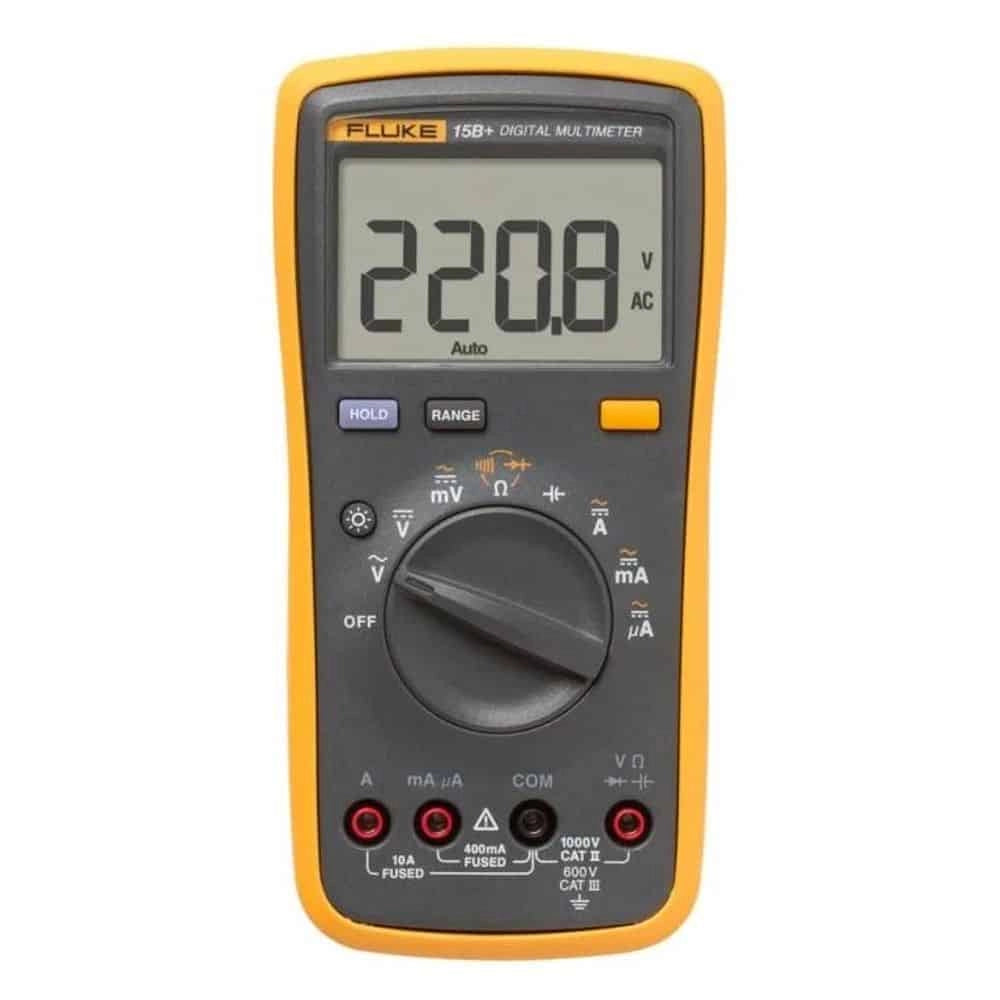

The Fluke 15B+ is a professional digital multimeter for everyday electrical troubleshooting. It combines 1000 V AC/DC voltage measurement, 10 A current measurement, resistance, capacitance, continuity, diode, data hold, and backlight functions in a CAT III 600 V rated meter.
Key features
- Measures AC and DC voltage up to 1000 V
- Measures AC and DC current up to 10 A
- Resistance, capacitance, continuity, frequency check, diode, and data-hold functions
- 4000-count LCD with bright white backlight
- CAT III 600 V safety rating
- Includes TL75 test leads, two AA batteries, and users manual
Spec
Accuracy Specifications
Accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, relative humidity at 0% to 75%. Accuracy specifications take the form of: ±(% of Reading + Number of Least Significant Digits).
| Function | Range | Resolution | Accuracy |
|---|---|---|---|
| AC volts (40 Hz to 500Hz)1 | 4.000 V 40.00 V 400.0 V 1000 V |
0.001 V 0.01 V 0.1 V 1 V |
1.0% + 3 |
| DC volts | 4.000 V 40.00 V 400.0 V 1000 V |
0.001 V 0.01 V 0.1 V 1 V |
0.5% + 3 |
| AC millivolts | 400.0 mV | 0.1 mV | 3.0% + 3 |
| DC millivolts | 400.0 mV | 0.1 mV | 1.0% + 10 |
| Diode test2 | 2.000 V | 0.001 V | 10% |
| Resistance (Ohms) | 400.0 Ω 4.000 kΩ 40.00 kΩ 400.0 kΩ 4.000 MΩ 40.00 MΩ |
0.1 Ω 0.001 kΩ 0.01 kΩ 0.1 kΩ 0.001 MΩ 0.01 MΩ |
0.5% + 3 0.5% + 2 0.5% + 2 0.5% + 2 0.5% + 2 1.5% + 3 |
| Capacitance3 | 40.00 nF 400.0 nF 4.000 μF 40.00 μF 400.0 μF 1000 μF |
0.01 nF 0.1 nF 0.001 μF 0.01 μF 0.1 μF 1 μF |
2% + 5 2% + 5 5% + 5 5% + 5 5% + 5 5% + 5 |
| AC current μA (40 Hz to 400 Hz) | 400.0 μA 4000 μA |
0.1 μA 1 μA |
1.5% + 3 |
| AC current mA (40 Hz to 400 Hz) | 40.00 mA 400.0 mA |
0.01 mA 0.1 mA |
1.5% + 3 |
| AC current A (40 Hz to 400 Hz) | 4.000 A 10.00 A |
0.001 A 0.01 A |
1.5% + 3 |
| DC current μA | 400.0 μA 4000 μA |
0.1 μA 1 μA |
1.5% + 3 |
| DC current mA | 40.00 mA 400.0 mA |
0.01 mA 0.1 mA |
1.5% + 3 |
| DC current A | 4.000 A 10.00 A |
0.001 A 0.01 A |
1.5% + 3 |
| Backlight | Yes |
- AC volts are specified from 1% to 100% of range. Inputs below 1% of range are not specified.
- Typically, open circuit test voltage is 2.0 V and short circuit current is <0.6 mA.
- Specifications do not include errors due to test lead capacitance and capacitance floor (may be up to 1.5 nF in the 40 nF range).
Input protection and rejection specifications
| Function | Overload protection | Input impedance (Nominal) | Common mode rejection ratio | Normal mode rejection ratio |
|---|---|---|---|---|
| AC volts | 1000 V1 | >10 MΩ | >60 dB at dc, 50 Hz or 60 Hz | - |
| AC millivolts | 400 mV | >1MΩ | >80 dB at 50 Hz or 60 Hz | - |
| DC volts | 1000 V1 | >10 MΩ | >100 dB at dc, 50 Hz or 60 Hz | >60 dB at 50 Hz or 60 Hz |
| DC millivolts | 400 mV | >1MΩ | >80 dB at 50 Hz or 60 Hz | - |
1 106 V Hz Max
General specifications
| General specification | Value |
|---|---|
| Maximum voltage between any terminal and earth ground | 1000 V |
| Display (LCD) | 4000 counts, updates 3/sec |
| Battery type | 2 AA, NEDA 15A, IEC LR6 |
| Battery life | 500 hours minimum |
| Temperature - Operating | 0 °C to 40 °C |
| Temperature - Storage | -30 °C to 60 °C |
| Relative humidity - Operating humidity | Non-condensing (<10 °C); ≤90% RH at 10 °C to 30 °C; ≤75% RH at 30 °C to 40 °C |
| Relative humidity - 40 MΩ range | ≤80% RH at 10 °C to 30 °C; ≤70% RH at 30 °C to 40 °C |
| Altitude - Operating | 2000 m |
| Altitude - Storage | 12,000 m |
| Temperature coefficient | 0.1 X (specified accuracy) /°C (<18 °C or >28 °C) |
| Fuse protection for current inputs | 440 mA, 1000 V Fast Fuse, Fluke specified part only. 11A, 1000V Fast Fuse, Fluke specified part only. |
| Size (H x W x L) | 183 x 91 x 49.5 mm |
| Weight | 455 g |
| IP rating | IP 40 |
| Safety | IEC 61010-1, IEC61010-2-030 CAT III 600 V, Pollution Degree 2 |
| Electromagnetic Compatibility | IEC 61326-1: Portable EMC Environment; Class A equipment (industrial broadcasting & communication equipment)1 |
1 This product meets requirements for industrial (Class A) electromagnetic wave equipment and seller or user should take notice of it. This equipment is intended for use in business environments and is not to be used in homes.
Local package and included items
| Local package and included items | Value |
|---|---|
| Source-of-truth package dimensions | 21.5 x 15 x 7 cm from db/listings.db |
| Shipping weight used for Shopify | 760 g from db/listings.db |
| What's in the box | Fluke 15B+ Digital Multimeter, Fluke TL75 Test Leads, 2 AA Batteries |
| Model includes | Fluke 15B+ ESP Digital Multimeter, Fluke TL75 Test Leads, 2 AA Batteries, Users Manual |
