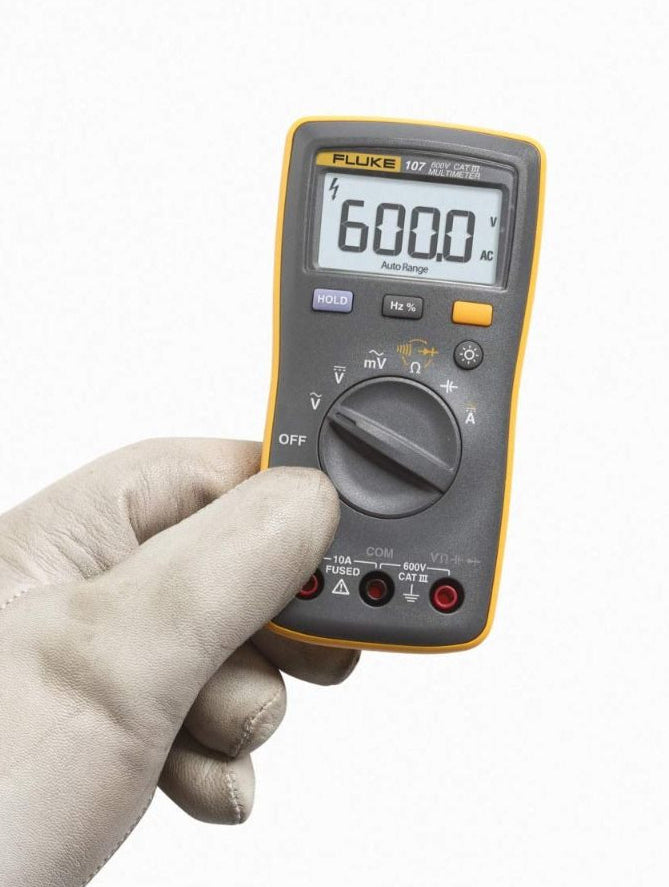

Fluke 107 Pocket Digital Multimeter

The Fluke 107 is a compact, palm size easy-to-use digital multimeter made to fit the way you work. It is the perfect first-pass troubleshooting tool; small enough to fit in a shirt pocket yet tough enough to withstand daily use, including a 1-meter drop test. For everyday applications where true-rms accuracy isn’t needed, the Fluke 107 delivers reliable measurements time after time. With a CAT III 600 V safety rating, you don’t need to compromise safety. The Fluke 107 offers a comfortable grip, weighs only 200 g, and is easy to carry.

Fluke 107 measurement test functions

AC and DC voltage
AC and DC current
Resistance
Capacitance
Diode
Frequency and duty-cycle

Key Features

CAT III 600 V safety rating
Current and voltage measurements
Measures resistance and continuity to check for broken wires
Data hold and backlit display to keep you working safe and fast

Specs

Accuracy is available for one year after calibration, operating from 18 °C to 28 °C and relative humidity from 0% to 75%. The format of the accuracy specification is: ± ([% of reading] + [least significant digit])

Precision specifications
AC voltage (40 Hz to 500 Hz)¹		Range	Resolution	Accuracy
		6.000 V 60.00 V 600.0 V	0.001 V 0.01 V 0.1 V	1.0 % + 3
DC voltage		6.000 V 60.00 V 600.0 V	0.001 V 0.01 V 0.1 V	0.5 % + 3
Exchange millivolts		600.0 mV	0.1 mV	3.0 % + 3
Diode test²		2.000 V	0.001 V	10 %
Resistance (ohm)		400.0 Ω 4.000 kΩ 40.00 kΩ 400.0 kΩ 4.000 MΩ 40.00 MΩ	0.1 Ω 0.001 kΩ 0.01 kΩ 0.1 kΩ 0.001 MΩ 0.01 MΩ	0.5 % + 3 0.5 % + 2 0.5 % + 2 0.5 % + 2 0.5 % + 2 1.5% + 3
Capacitor³		50.00 nF 500.0 nF 5.000 μF 50.00 μF 500.0 μF 1000 μF	0.01 nF 0.1 nF 0.001 μF 0.01 μF 0.1 μF 1 μF	2 % + 5 2 % + 5 5 % + 5 5 % + 5 5 % + 5 5 % + 5
Frequency⁴ Hz (10 Hz – 100 kHz)		50.00 Hz 500.0 Hz 5.000 kHz 50.00 kHz 100.0 kHz	0.01 Hz 0.1 Hz 0.001 kHz 0.01 kHz 0.1 kHz	0.1 % + 3
Duty cycle⁴		1 % to 99 %	0.10 %	1 % typical case⁵
AC current (40 Hz - 200 Hz)		4.000 A 10.00 A	0.001 A 0.01 A	1.5 % + 3
DC		4.000 A 10.00 A	0.001 A 0.01 A	1.5 % + 3
All AC current, frequency, and duty cycle are specified from 1% to 100% of the range. Input values below 1% of range are not specified. Typically, the open circuit test voltage is 2.0 V and the short circuit current is < 0.6 mA. The parameters do not include errors due to test lead capacitance and capacitor substrate (up to 1.5 nF in the 50 nF range). All AC current, frequency, and duty cycle are specified from 1% to 100% of the range. Input values below 1% of range are not specified. Typically, the frequency is 50 Hz or 60 Hz and the duty cycle is 10% to 90%.
Features	Overload protection	Input impedance (nominal value)	Common mode rejection ratio	Normal mode rejection ratio
AC voltage	600 V ¹	>10 MΩ <100 pF ²	>60 dB at 50 Hz or 60 Hz at DC current	−
Exchange millivolts	600 mV	>1M, <100 pF	>80 dB at 50 Hz or 60 Hz	−
DC voltage	600 V ¹	>10 MΩ <100 pF	>100 dB at 50 Hz or 60 Hz at DC current	>60 dB at 50 Hz or 60 Hz
Up to 6 x 105 V Hz For medium voltage (alternating current), the input impedance is approximately 1 MΩ.
General technical indicators
The highest voltage applied to any terminal and ground		600 V
Display (LCD)		6000 counts, updated three times per second
Type of battery		Two AAA batteries (NEDA 24A, IEC LR03)
Battery life		At least 200 hours
Temperature
Operating temperature		0 °C to 40 °C
Storage temperature		-30 °C to 60 °C
Relative humidity
Working humidity		No condensation below 10 °C ≤ 90 % at 10 °C to 30 °C; ≤ 75 % at 30 °C to 40 °C
Working humidity, 40 MΩ range		≤ 80 % at 10 °C to 30 °C; ≤ 70 % at 30 °C to 40 °C
Altitude
Working elevation		2000 m
Storage altitude		12,000 m
Temperature coefficient		0.1 X (specified accuracy) / °C (<18 °C or >28 °C)
Current input fuse protection		11A, 1000V fast-melting type, must use Fluke designated parts
Volume (height x width x length)		142 mm x 69 mm x 28 mm
Weight		200 g
Protection level		IEC 60529: IP 40
Safety		IEC 61010-1: 600 V CAT III, pollution degree 2
Electromagnetic environment		IEC 61326-1: Portable
Electromagnetic compatibility		Applicable only in Korea. Class A equipment (industrial broadcasting and communication equipment)¹
¹ This product meets the requirements of industrial (Class A) electromagnetic wave equipment, which should be noted by the seller or user. The device is suitable for use in a work environment, not a home environment.
