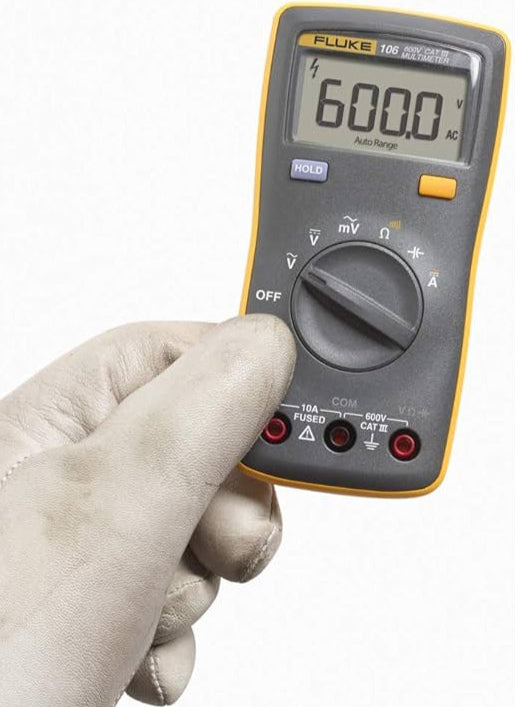

Fluke 106 Palm-sized Digital Multimeter

The Fluke 106 digital multimeter is made to fit the way you work! It is designed to fit in the palm of your hand and go with you no matter where your job takes you.

Key features

Voltage, resistance, continuity, capacitance
Input terminal for ac and dc current measurements to 10 A and current
Data hold

Specs

Accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, relative humidity at 0 % to 75 %. Accuracy specifications take the form of: ±([% of Reading] + [Number of Least Significant Digits])

Accuracy Specifications
Function		Range	Resolution	Accuracy
AC Volts (40 Hz to 500Hz)¹		6.000 V 60.00 V 600.0 V	0.001 V 0.01 V 0.1 V	1.0 % + 3
DC Volts		6.000 V 60.00 V 600.0 V	0.001 V 0.01 V 0.1 V	0.5 % + 3
AC Millivolts		600.0 mV	0.1 mV	3.0 % + 3
Resistance (Ohms)		400.0 Ω 4.000 kΩ 40.00 kΩ 400.0 kΩ 4.000 MΩ 40.00 MΩ	0.1 Ω 0.001 kΩ 0.01 kΩ 0.1 kΩ 0.001 MΩ 0.01 MΩ	0.5 % + 3 0.5 % + 2 0.5 % + 2 0.5 % + 2 0.5 % + 2 1.5% + 3
Capacitance²		50.00 nF 500.0 nF 5.000 μF 50.00 μF 500.0 μF 1000 μF	0.01 nF 0.1 nF 0.001 μF 0.01 μF 0.1 μF 1 μF	2 % + 5 2 % + 5 5 % + 5 5 % + 5 5 % + 5 5 % + 5
Frequency³ Hz (10 Hz – 100 kHz)		50.00 Hz 500.0 Hz 5.000 kHz 50.00 kHz 100.0 kHz	0.01 Hz 0.1 Hz 0.001 kHz 0.01 kHz 0.1 kHz	NA
Duty Cycle³		1 % to 99 %	0.1 %	NA
AC Current (40 Hz to 200 Hz)		4.000 A 10.00 A	0.001 A 0.01 A	1.5 % + 3
DC Current		4.000 A 10.00 A	0.001 A 0.01 A	1.5 % + 3
All AC, Hz, and duty cycle are specified from 1 % to 100 % of range. Inputs below 1 % of range are not specified. Specifications do not include errors due to test lead capacitance and capacitance floor (may be up to 1.5 nF in the 50 nF range). All AC, Hz, and duty cycle are specified from 1 % to 100 % of range. Inputs below 1 % of range are not specified.
Function	Overload Protection	Input Impedance (Nominal)	Common Mode Rejection Ratio	Normal Mode Rejection Ratio
AC Volts	600 V ¹	>10 MΩ <100 pF ²	>60 dB at dc, 50 Hz or 60 Hz	−
\AC Millivolts	600 mV	>1M, <100 pF	>80 dB at 50 Hz or 60 Hz	−
DC Volts	600 V ¹	>10 MΩ <100 pF	>100 dB at dc, 50 Hz or 60 Hz	>60 dB at 50 Hz or 60 Hz
6 x 105 V Hz Max For mV (AC), input impedance is approximately 1 MΩ.
General Specifications
Maximum Voltage Between any Terminal and Earth Ground		600 V
Display (LCD)		6000 counts, updates 3/sec
Battery Type		2 AAA, NEDA 24A, IEC LR03
Battery Life		200 hours minimum
Temperature
Operating		0 °C to 40 °C
Storage		-30 °C to 60 °C
Relative Humidity
Operating Humidity		Non-condensing when <10°C ≤90 % at 10 °C to 30 °C; ≤75 % at 30 °C to 40 °C
Operating Humidity, 40 MΩ Range		≤80 % at 10 °C to 30 °C; ≤70 % at 30 °C to 40 °C
Altitude
Operating		2000 m
Storage		12,000 m
Temperature Coefficient		0.1 X (specified accuracy) /°C (<18 °C or >28 °C)
Fuse Protection for Current Inputs		11A, 1000V Fast Fuse, Fluke specified part only
Size (HxWxL)		142 mm x 69 mm x 28mm
Weight		200 g
IP Rating		IEC 60529: IP 40
Safety		IEC 61010-1: 600 V CAT III, Pollution Degree 2
Electromagnetic Environment		IEC 61326-1: Portable
Electromagnetic Compatibility		Applies to use the Korea only. Class A Equipment (Industrial Broadcasting and Communication Equipment)¹
This product meets requirements for industrial (Class A) electromagnetic wave equipment and seller or user should take notice of it. This equipment is intended for use in business environments and is not to be used in homes.
