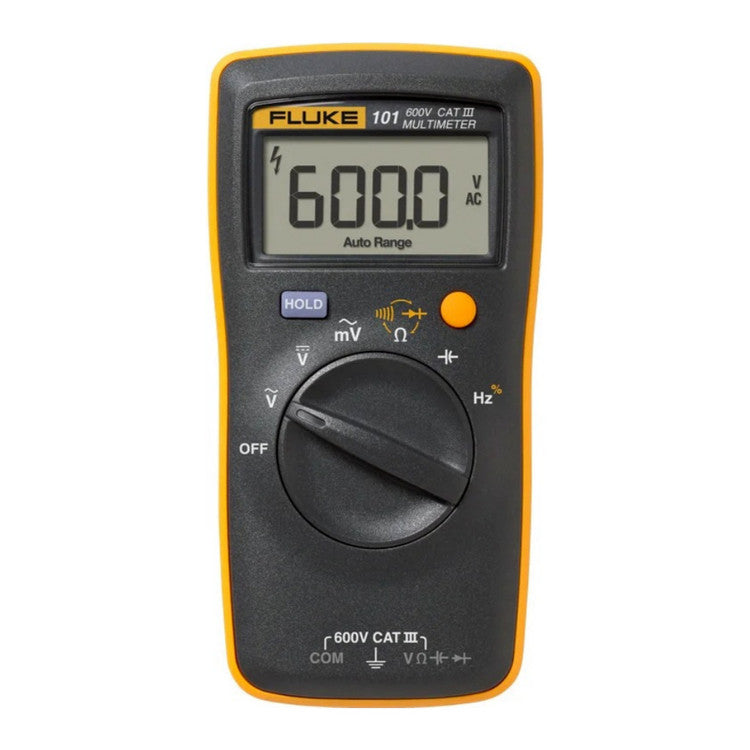

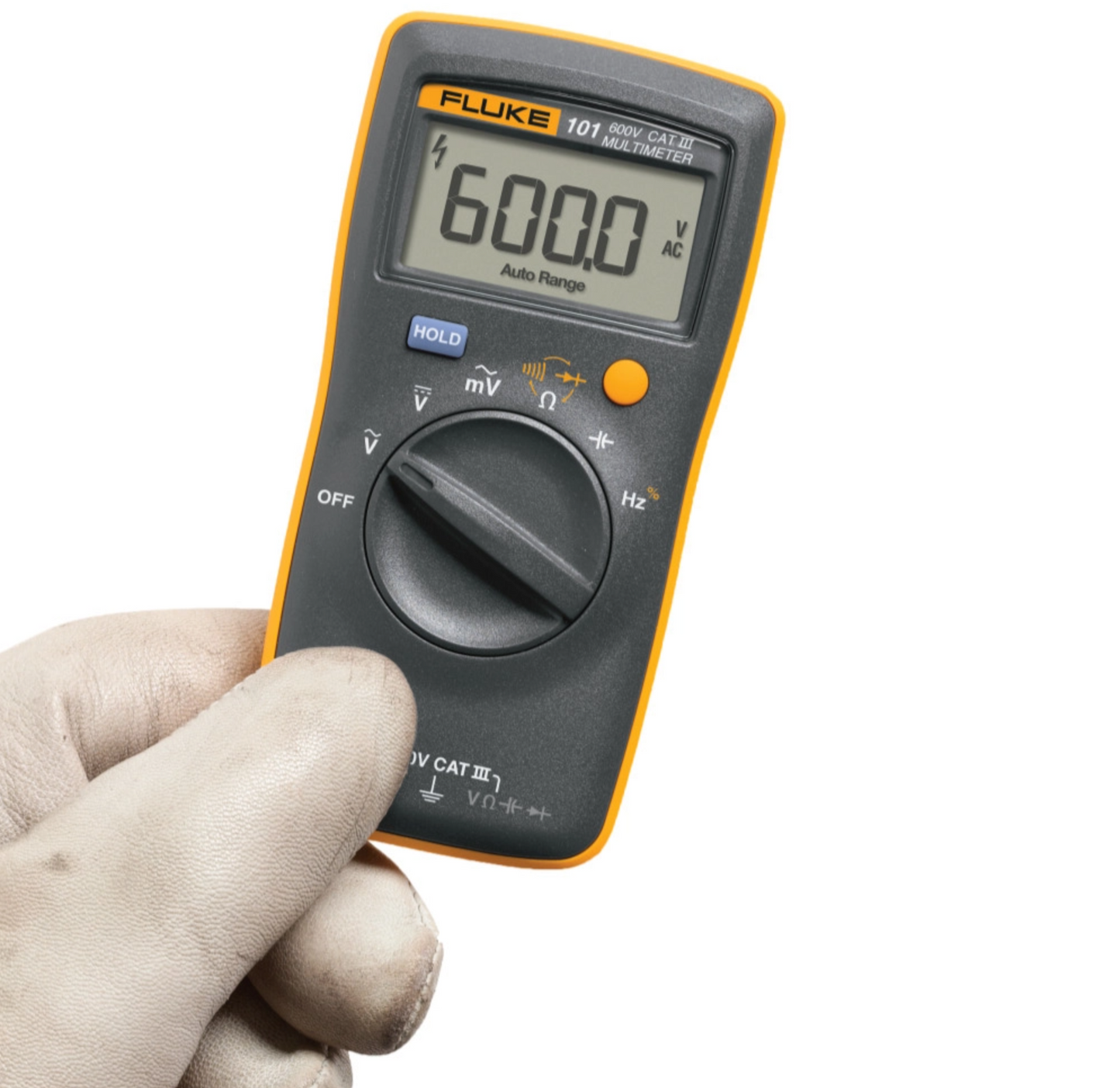

Fluke 101 Digital Multimeter, Compact and Reliable multimeter

Designed for basic electrical tests, the Fluke 101 digital multimeter offers reliable measurements for residential/commercial electricians and heating and air conditioning technicians. This small, lightweight multimeter fits comfortably in your hand but is rugged enough to withstand daily use for years to come. When it comes to professional-grade affordable multimeters, the Fluke 101 digital multimeter is your best choice.

Key features

Basic dc accuracy 0.5%
CAT III 600 V safety rated
Diode and continuity test with buzzer
Small lightweight design for one-handed use
Rugged, durable design
Automatic shutdown
Battery is easy to replace

Specs

V AC (40-500 Hz)

Range	Resolution	Accuracy
600.0 mV	0.1 mV	3.0%±3 digit
6.000 V	0.001 V	1.0%±3 digit
60.00 V	0.01 V	1.0%±3 digit
600.0 V	0.1 V	1.0%±3 digit

V DC

Range	Resolution	Accuracy
6.000 V	0.001 V	0.5%±3 digit
60.00 V	0.01 V	0.5%±3 digit
600.0 V	0.1 V	0.5%±3 digit

Resistance (Ohms)

Range	Resolution	Accuracy
400.0 Ω	0.1 Ω	0.5%±3 digit
4.000 kΩ	0.001 kΩ	0.5%±2 digit
40.00 kΩ	0.01 kΩ	0.5%±2 digit
400.0 kΩ	0.1 kΩ	0.5%±2 digit
4.000 MΩ	0.001 MΩ	0.5%±2 digit
40.00 MΩ	0.01 MΩ	1.5%±3 digit

Capacitance

Range	Resolution
50.00 nF	0.01 nF
500.0 nF	0.1 nF
5.000 μF	0.001 μF
50.00 μF	0.01 μF
500.0 μF	0.1 μF
1000.0 μF	1 μF

Frequency (10 Hz – 100 kHz)

Range	Resolution
50.00 Hz	0.01 Hz
500.0 Hz	0.1 Hz
5.000 kHz	0.001 kHz
50.00 kHz	0.01 kHz
100.0 kHz	0.1 kHz

Duty Cycle

Range	Resolution
0.1 % to 99.9 %	0.1 %

General Specifications

CAT Rating	CAT III 600 V
V AC Range	600.0 V
V DC Range	600.0 V
Ohms Range	40.00 MΩ
Auto Shutoff	Y
Continuity	Y
Capacitor	100.0 μF
Frequency	100.0 kHz
Hold	No
Duty Cycle	Yes
Size	130 mm x 65 mm x 27 mm
Weight	160 g
Battery	Two AAA
Warranty	1 year

Environmental Specifications

Operating Temperature	0 °C to +40 °C
Storage Temperature	-30 °C to +60 °C
Operating Humidity	Non condensing (<10 °C) ≤90% RH (at 10 °C to 30 °C) ≤75% RH (at 30 °C to 40 °C) (Without Condensation)
Operating Humidity, 40 MΩ	80% RH (10 °C to 30 °C), 70% RH (30 °C to 40 °C)
Operating Altitude	2,000 meters
Storage Altitude	12,000 meters
IP Rating	IP 40 per IEC 60529
Vibration Requirements	MIL-PRF-28800F, Class 2
Drop Test Requirements	-10°C and 1 meter to surface, per IEC-61010-1, and Fluke SOP 39.1 Shipping container drop per Fluke SOP 39.
EMI, RFI, EMC	Must meet all applicable requirements in IEC/EN 61326-1
Absorption/Corrosion	Per Fluke SOP 39.1
Temperature Coefficients	Add 0.1 × specified accuracy for each degree C above 28 °C or below 18 °C
