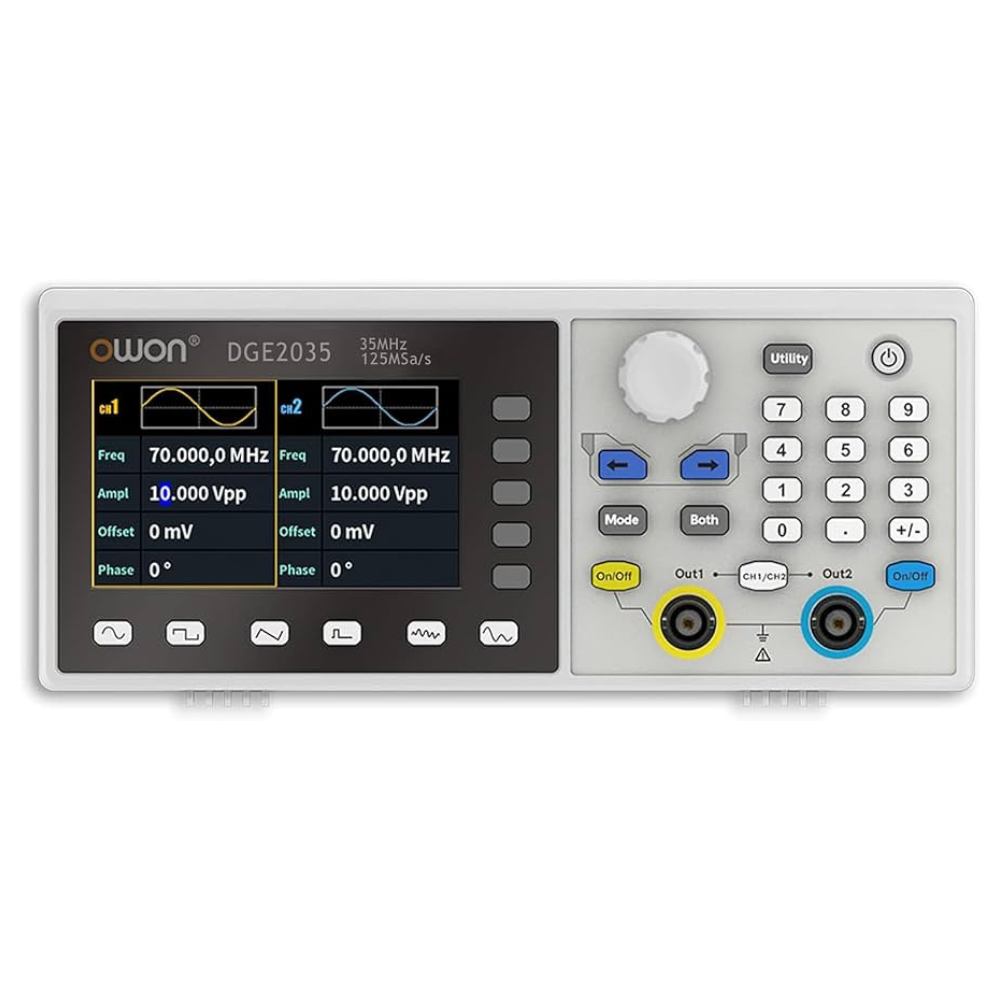

Owon DGE2035 function generator

The DGE2035 from Owon is a 14 bit function generator with a bandwith of 35MHz. This function generator comes with 5 basic waveforms, 150 built-in arbitrary waveforms and has 16 digital arbitrary waveform storage functions. Furthermore the DGE2035 has comprehensive modulation functions such as: AM, FM, PM, FSK, Sweep, Burst and more. With the free PC software it is possible to draw your own waveforms and save them on the function generator. The function generator is easy to operate and has a very small size.

Key Features:

+ 35MHz/70MHz frequency output
+ Max 300MSa/s Sample rate，Vertical resolution 1μHz
+ 14 bits Vertical Resolution，8K Arb waveform length
+ Comprehensive waveform output : 5 basic waveforms,
and 150 built-in arbitrary waveforms
+ Comprehensive modulation functions : AM, FM, PM, FSK, Sweep, and Burst
+ SCPI supported
+ 3.6 inch (480 × 260 pixels) LCD

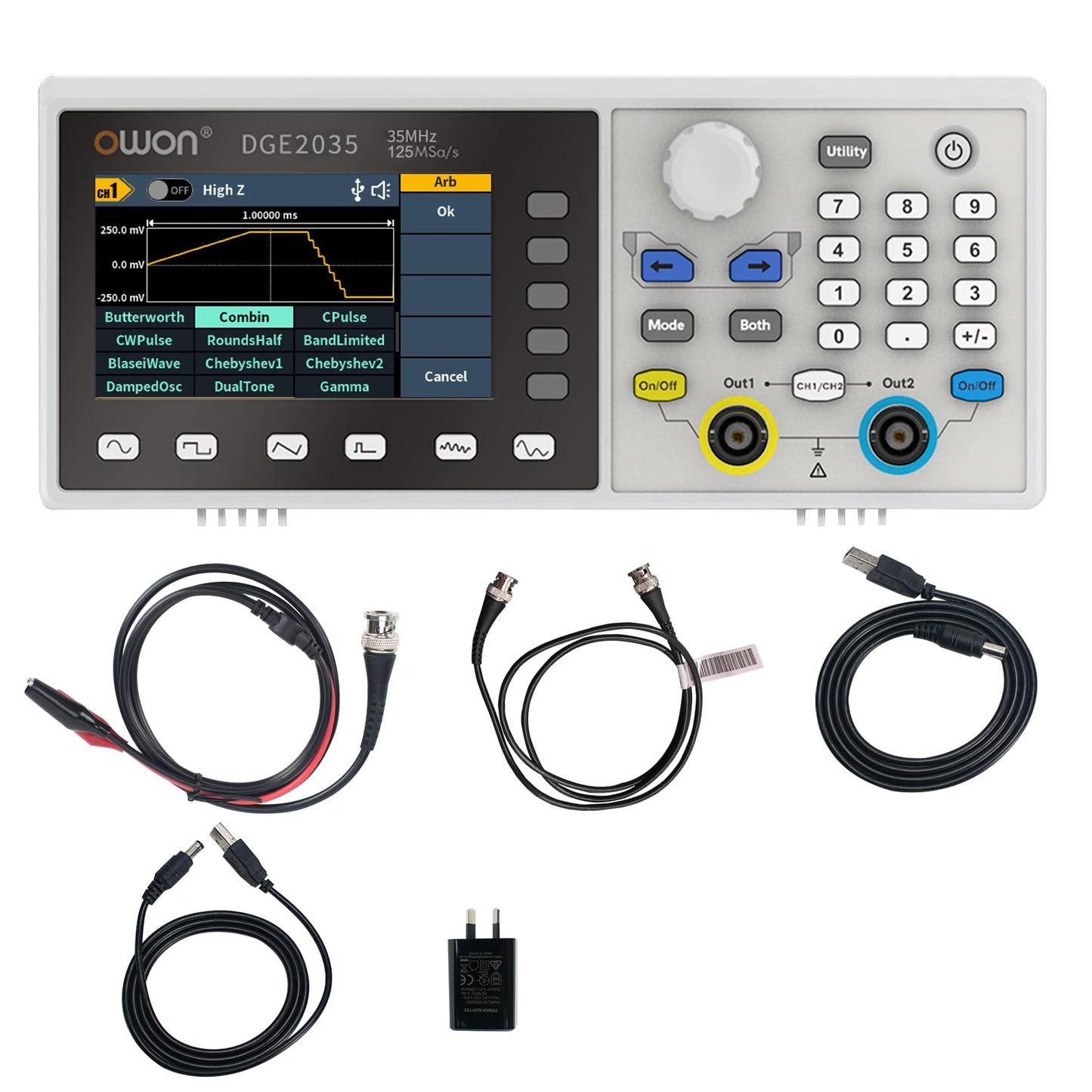

Package Including:

The Owon DGE2035 comes with:

BNC to alligator clip
BNC cable
USB to DC cord
USB cable
Power adapter

Specs

Model	DGE2035	DGE2070
Channel	2
Frequency Output	35MHz	70MHz
Sample Rate	125MSa/s	300MSa/s
Vertical Resolution	14 bits
Waveform
Standard Waveform	sine, square, pulse, ramp, and noise
Arbitrary Waveform	exponential rise, exponential fall, sin(x)/x, step wave, and others, total 150 built-in waveforms, and user-defined arbitrary waveform
Frequency
Sine	1μHz - 35MHz	1μHz - 70MHz
Square	1μHz - 15MHz	1μHz - 20MHz
Pulse	1μHz - 15MHz	1μHz - 20MHz
Ramp	1μHz - 1MHz	1μHz - 2MHz
Noise	20MHz (-3dB，typical)
Arbitrary Waveform	1μHz -10MHz
Frequency Resolution	1 μHz or 7 significant figures
Frequency Stability	±30 ppm at 0±40℃
Frequency Aging Rate	±30 ppm per year
Arbitrary
Waveform Length	2 - 8K points
Sample Rate	125Ma/s	300Ma/s
Amplitude
into 50Ω Load	1mVpp - 20Vpp（≤10MHz） 1mVpp - 4Vpp （≤70MHz）
DC Offset Range (AD+DC)	±(10 Vpk – Amplitude Vpp/2) high resistance ±(5 Vpk – Amplitude Vpp/2) 50 Ω
DC offset Resolution	1mV or 4digits
Load Impedance	50Ω (typical)
DC offset Accuracy	±(1 % of \|setting\| + 1 mV + amplitude Vpp x 0.5%)
Modulation
Type	AM, FM, PM, FSK, sweep, Burst
Internal Modulation Frequency	2 mHz to 100 kHz
Sweep
Carrier	Sine, rectangular wave, ramp wave, arbitrary wave(Except DC)
Minimum/Maximum Starting Frequency	2mHz（minimum）/ maximum frequency of corresponding carrier
Minimum/Maximum Termination Frequency	2mHz（minimum）/ maximum frequency of corresponding carrier
Trigger Source	internal, manual
Burst
Waveform	Sine wave, square wave, ramp wave, pulse wave and arbitrary wave (Except DC)
Types	N-Cycle
Trigger source	Internal, manual
Carrier frequency	1μHz ≤ Offset ≤ Maximum frequency of corresponding carrier /2
Input / Output
Display	3.6-inch TFT LCD with resolution 480 x 272
Communication Interface	USB Device
Mechanical specifications
Dimension (W×H×D)	200mm x 68.5mm x 74.5mm
Weight (without package)	0.5kg
