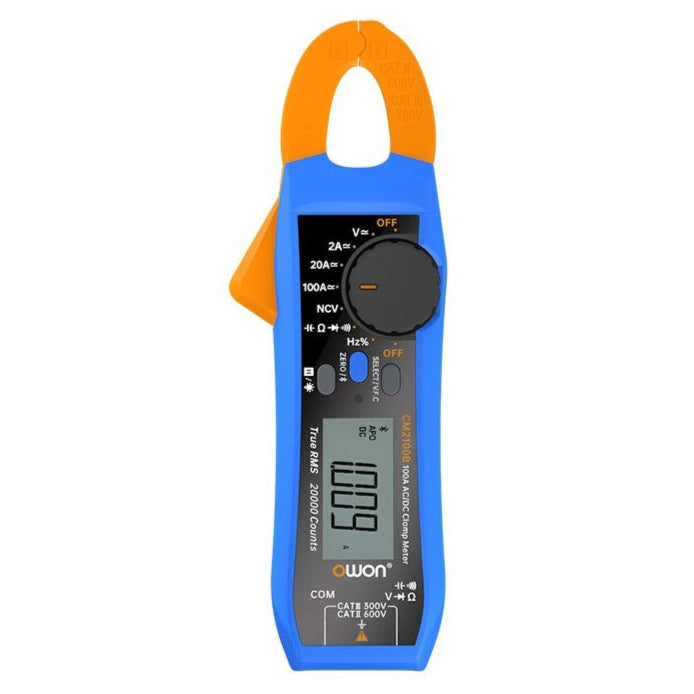

The OWON CM2100B is the Bluetooth-enabled model in the CM2100 smart AC/DC clamp meter series. It supports compact current and voltage troubleshooting, resistance and capacitance checks, frequency and duty-cycle measurement, NCV, VFC filtering, and app-connected recording workflows.
Key features
- Smart AC/DC clamp meter for current, voltage, resistance, capacitance, frequency, duty cycle, diode, and continuity
- 100 A AC/DC current range and 600 V AC/DC voltage range
- 20000-count true RMS automatic range display
- CM2100B Bluetooth module for recording/app-connected measurement workflows
- NCV and VFC modes with 17 mm jaw capacity in a compact body
Spec
Official measurement specifications
| Function |
Range |
Accuracy |
Notes |
| AC Current (A) |
2.000 A |
+/-(3%+10 dig); in VFC +/-(4%+10) |
|
| AC Current (A) |
20.00 A
100.0 A |
+/-(2.5%+5 dig); in VFC +/-(4%+10) |
|
| AC Voltage (V) |
2.0000 V
20.000 V
200.00 V
600.0 V |
+/-(0.8%+10 dig); in VFC +/-(4%+3) |
|
| DC Current (A) |
2.000 A |
+/-(2%+8 dig) |
|
| DC Current (A) |
20.00 A
100.0 A |
+/-(2%+3 dig) |
|
| DC Voltage (V) |
200.00 mV |
+/-(0.7%+10 dig) |
|
| DC Voltage (V) |
2.0000 V
20.000 V
200.00 V
600.0 V |
+/-(0.5%+5 dig) |
|
| Resistance |
200.0 ohms |
+/-(0.8%+10 dig) |
|
| Resistance |
2.0000 kohms |
+/-(0.5%+10 dig) |
|
| Resistance |
20.000 kohms
200.00 kohms
2.0000 Mohms |
+/-(0.5%+10 dig) |
|
| Resistance |
20.000 Mohms |
+/-(1%+10 dig) |
|
| Resistance |
200.00 Mohms |
+/-(5.0%+10 dig) |
|
| Capacitance |
2.000 nF |
+/-(4.0%+10 dig) |
|
| Capacitance |
20.00 nF
200.0 nF
2.000 uF
20.00 uF
200.0 uF
2.000 mF
20.00 mF |
+/-(3.0%+10 dig) |
|
| Frequency |
200.00 Hz
20.000 kHz
200.00 kHz
2.0000 MHz
20.000 MHz |
+/-(0.1%+5 dig) |
|
| Duty cycle |
0.1% - 99.9%, typical: Vrms=1 V, f=1 kHz |
+/-(1.2%+3 dig) |
|
| Duty cycle |
0.1% - 99.9%, >=1 kHz |
+/-(2.5%+3 dig) |
|
Special functions
| Function |
Value |
| Display |
20000 counts |
| Bluetooth module |
Included on CM2100B |
| Frequency response |
40 Hz to 1000 Hz |
| Zero |
Supported |
| Auto ranging |
Supported |
| Low-battery indicator |
Supported |
| Data hold |
Supported |
| Relative measurement |
Supported |
| Diode |
Supported |
| Input protection |
Supported |
| Continuity buzzer |
Supported |
| Input impedance |
>=10 Mohms |
| NCV |
Supported |
| Overrange alarm |
Supported |
| VFC |
Supported |
| On-off warning |
Supported |
General specifications
| Specification |
Value |
| Model |
CM2100B |
| Official series models |
CM2100, CM2100B |
| Jaw capacity |
17 mm |
| Battery |
2 x 1.5 V AAA |
| Instrument dimensions |
182 mm x 57 mm x 32 mm |
| Instrument weight without package |
0.2 kg |
| Source-of-truth shipping weight |
420 g from db/listings.db |
Note: OWON publishes CM2100 and CM2100B in the same official series. Bluetooth, recording, and app-control functions apply to CM2100B.
