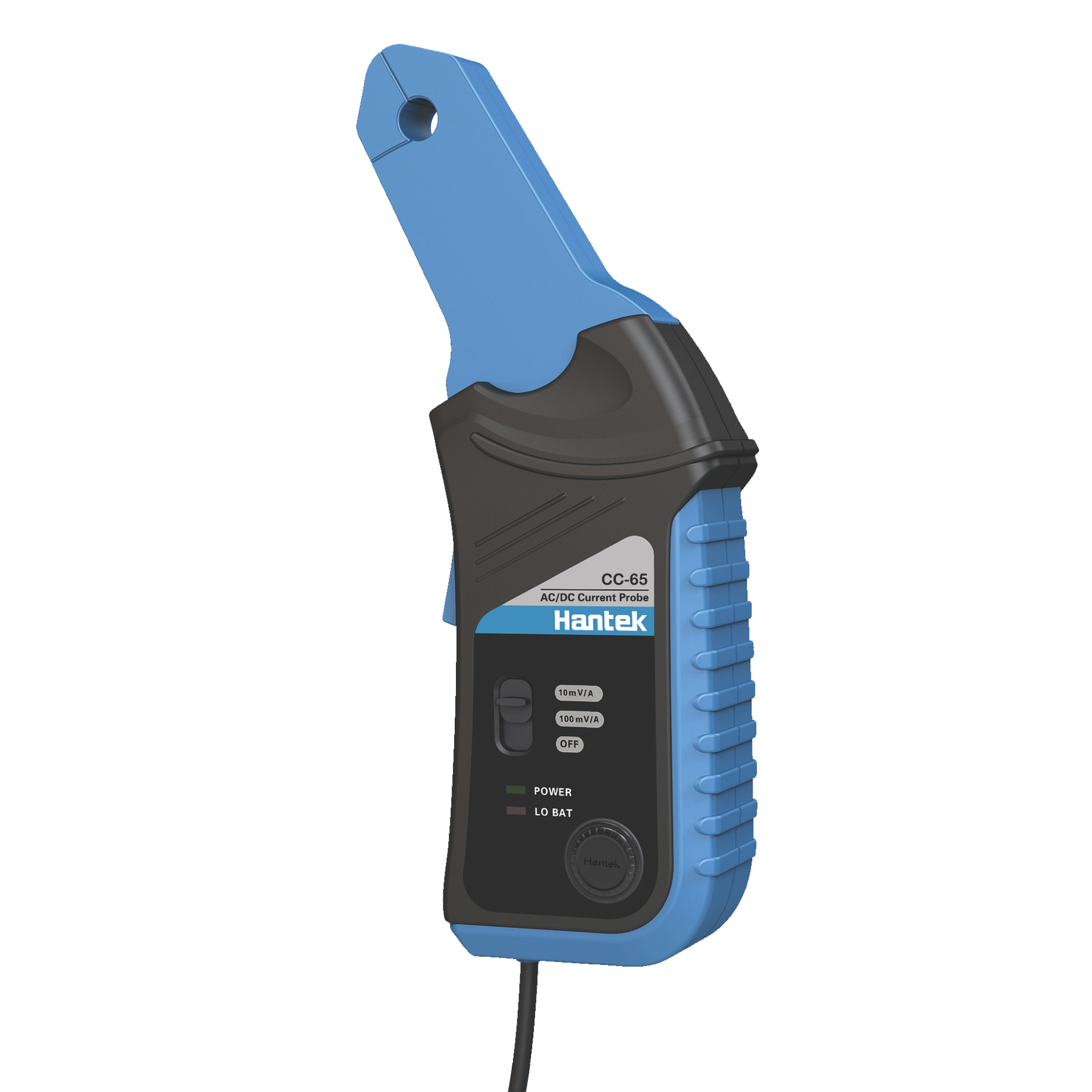

AC/DC Current Clamp (65A, 20kHz Bandwidth)
The AC/DC Current Clamp is a versatile tool designed to extend the measurement capabilities of multimeters and oscilloscopes. It allows for accurate measurement of both alternating current (AC) and direct current (DC) up to 65 amperes, with a frequency range extending up to 20 kHz.
Key Features:
- Wide Frequency Range: Measures AC/DC currents up to 20 kHz.
- Effective Measurement Range: Capable of measuring currents from 20 mA to 65 A DC.

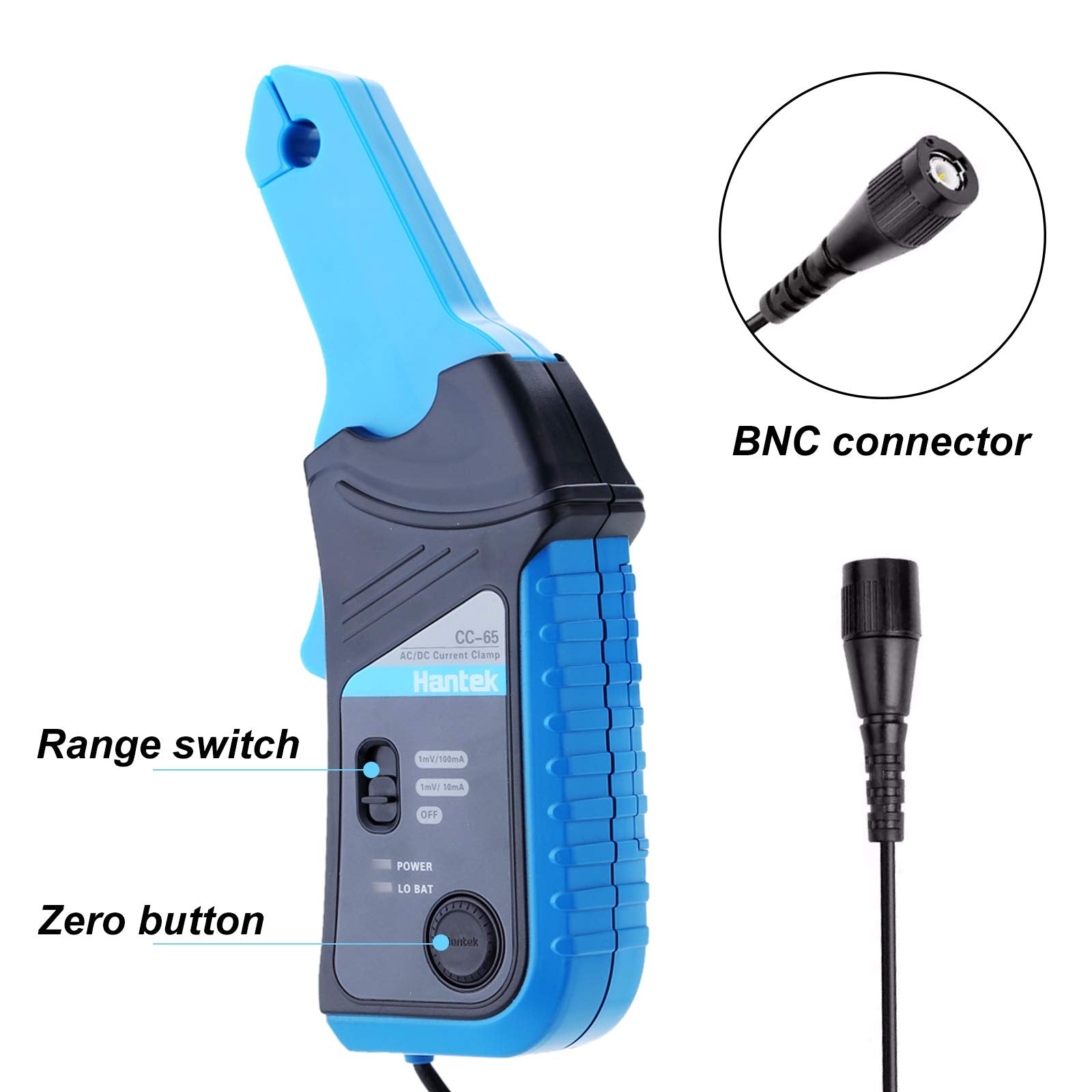

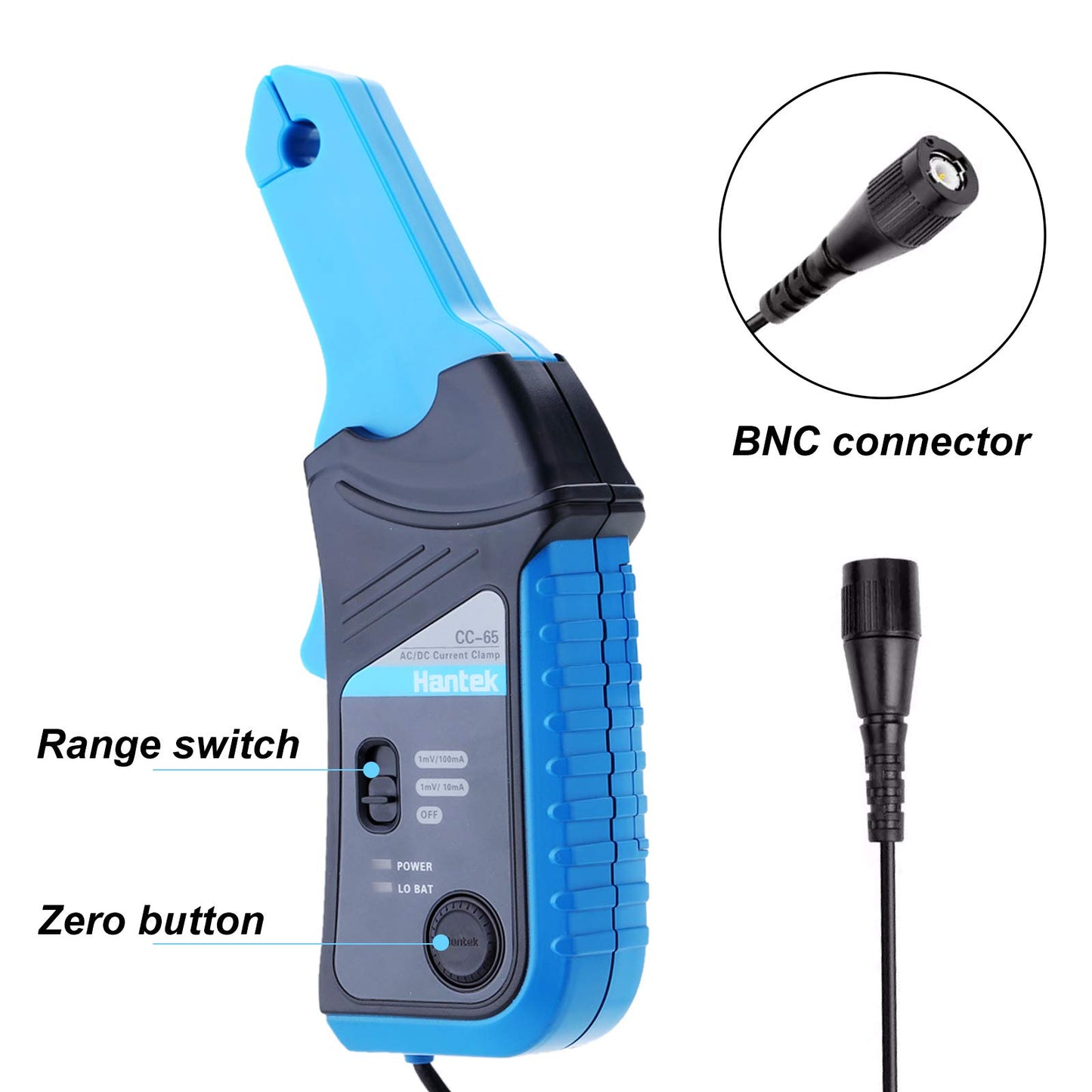

- Dual Output Options: Connects to multimeters via banana plugs or oscilloscopes via BNC connectors.
- Advanced Transducer Technology: Utilizes a combination of permalloy and Hall effect elements for linear transformation of current to voltage.
- Compact Design: Accommodates conductors up to 9 mm in diameter.
Specs
Direct Current (DC) Measurement:
Setting | Accuracy | Current Range |
---|---|---|
100 mV/A | ±(1.5% ± 5 mA) | 10 mA to 20 A |
10 mV/A | ±(2% ± 20 mA) | 100 mA to 40 A |
±(4% ± 0.3 A) | 40 A to 65 A |
Alternating Current (AC) Measurement:
Setting | Accuracy | Current Range | Frequency Range |
---|---|---|---|
100 mV/A | ±(2% ± 30 mA) | 100 mA to 10 A | 40 Hz – 2 kHz |
±(4% ± 30 mA) | 100 mA to 10 A | 2 kHz – 10 kHz | |
±(6% ± 30 mA) | 100 mA to 10 A | 10 kHz – 20 kHz | |
±(8% ± 30 mA) | 10 A to 15 A | 40 Hz – 20 kHz | |
10 mV/A | ±(2% ± 30 mA) | 100 mA to 40 A | 40 Hz – 1 kHz |
±(4% ± 30 mA) | 100 mA to 40 A | 1 kHz – 2 kHz | |
±(6% ± 30 mA) | 100 mA to 40 A | 3 kHz – 5 kHz | |
±(8% ± 0.3 A) | 40 A to 65 A | 40 Hz – 20 kHz |
General
Maximum Conductor Size | 9 mm diameter |
Low Battery Indicator | Red LED light |
Operating Temperature | 0°C to 50°C (70% relative humidity) |
Storage Temperature | -20°C to +70°C (80% relative humidity) |
Power Supply | 9V DC battery |
Weight | Approximately 250 grams |
Dimensions | 195 mm (H) x 70 mm (W) x 33 mm (D) |
Output Connections | Coil cable with straight banana plugs or BNC plugs |
